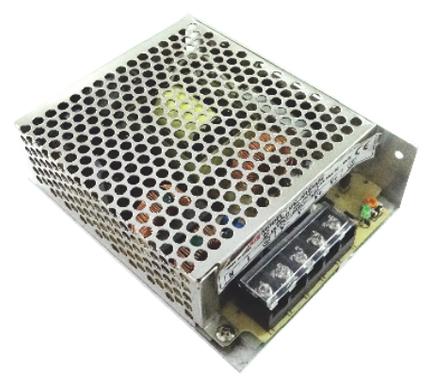

GK-H100SX


  • Brand:

    POWERLD
  • Item NO.:

    GK-H100SX
  • Wattage (W):

    100
  • Input:

    176-264Vac
  • Output:

    12, 24, 36, 48
  • PFC:

    N
  • Conformal Coating:

    Y
  • Approval:

    N
  • Dimension:

    129x98x38mm
  • Product Detail

Features:

Ø  176~264Vac input range

Ø  Withstand 300Vac surge input (5S)

Ø  High Efficiency, and High reliability

Ø  Terminal block with plastic cover protection

Ø  Output protections: OPP/OVP/SCP/OTP/OLP

Ø  Wide operating ambient temperature (-20℃~70℃)

Ø  All using105℃long life electrolytic capacitors.

Ø  100% full load burn-in test

Ø  Suitable for peak load application

Ø  2 years warranty

SPECIFICATION

MODEL

GK-H100S24

OUTPUT

DC Output

24V

Rated Current

4.5A

CurrentRange

0~4.5A

Ripple and Noise   Note 2

0~70℃

≤120mV

-20~0℃

≤240mV

Voltage ADJ. Range

22.8~26.4V

Voltage Accuracy

±1%

Line Regulation

±0.5%

Load Regulation

±0.5%

Set-up Time

≤2.0S (220Vac input, Full load)

Hold up Time

≥20mS (220Vac input, Full load)

Temperature Coefficient

±0.03%/℃

Overshoot and Undershoot

<5.0%

INPUT

VoltageRange

176~264Vac

FrequencyRange

47Hz--63Hz

Efficiency ( Typical)

≥86%

AC Current (max.)

<1.5A

Inrush Current (Typical)

<50A@220Vac     Cold start

Leakage Current

Input—output:<0.25mA    Input—PG:<1.0mA

PROTECTION

Over Load

7~8A, Constant Current

Over power

7~8A, Constant Current

Over temperature

95℃+5℃(detect on heatsink of power transistor);shut down, auto recover after the temperature goes down

Short Circuit

Long-term mode, auto recovery

ENVIRONMENT

Operating amb. Temp. & Hum.

-20℃~70℃; 20%~90%RH No condensing(refer to the derating curve)

Vibration

10 ~ 150Hz,6G10min./1cycle, period for60min. each along X,Y, Z axes

Storage Temp. & Hum.

-40℃~85℃; 10%~95%RH No condensing

SAFETY &EMC

(Note 3)

Safety Standards

IEC/EN/UL/CSA 60950/GB4943

Withstand Voltage

Primary-Secondary:3.0KVac;≤10mA;Primary-PG:1.5KVac;≤10mA.Secondary-PG:0.5KVDC;≤10mA.

Isolation Resistance

≥100M ohms

EMI Conduction &Radiation

Compliance to EN55022 Class B

EMSImmunity

Compliance to EN61000-4-2,3,4,5,6,8,11

OTHERS

MTBF (MIL-HDBK-217F)

More than 200,000Hrs (25℃, Full load)

Dimension (L*W*H)

129×98×38mm

Packing

36pcs/17kgs, 0.031cbm

Cooling method

Cooling by free air convection

NOTE

1.  All parameters NOT specially mentioned are measured at 230Vac input, rated load and25℃of ambient temperature.

2.  Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor.

3.  The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives.

We are specializes in the research and production of security power supply with ODM and OEM services.Our products enjoy great popularity among customers for our good quality and competitive price.

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

  • #
  • #
  • #
  • If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

Related Products
CMG-H150DXG+X power supply
CMG-H150DXG+X

Ø  High Efficiency, and High reliability Ø  Output protections: SCP/OVP/OPP/OLP Ø  Wide operating ambient temperature (-10℃~50℃) Ø  All using 105℃ long life electrolytic capacitors. Ø  100% full load burn-in test Ø  2 years warranty      Ø  Isolated Dual Outputs SPECIFICATION MODEL CMG-H150D12G+24 CMG-H150D24G+12 OUTPUT DC Output V1 12.0V 24.0V V2 24.0V 12.0V Rated Current V1 5A 6A       Note 2 V2 6A      Note 1 5A CurrentRange Note 3 V1 0.5~5.0A 0~6.0A V2 0.6~6.0A 0~5.0A Ripple and NoiseNote4 0~65℃ V1 120mV 240mV V2 240mV 120mV Ripple and Noise -25~0℃ V1 240mV 480mV V2 480mV 240mV Voltage ADJ. Range 11.4V~12.6V 22.8V~25.0V Voltage Accuracy V1 ±1.0% ±1.0% V2 ±10.0% ±10.0% Line Regulation V1 ±0.5% V2 ±1.0% Load Regulation V1 ±3.0% V2 ±10.0% Set-up Time <1.0S (230Vac input, Full load) Hold up Time >20mS(230Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT VoltageRange   176Vac~264Vac FrequencyRange 47Hz--63Hz Efficiency ( Typical) 80% 80% AC Current (max.) 2.0A/176VAC Inrush Current (Typical) 50A@220Vac     Cold start Leakage Current Input—output:<0.25mA    Input—PG:<3.5mA PROTECTION Over Power 105%~150% of rated output current, auto recovery Over Current V1 110%~220%    Auto recovery 110%~150%    Auto recovery Over Voltage V1: 110%~150% of rated output voltage, auto recovery Shorted Circuit Long-term mode, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -10℃~50℃; 20%~90%RH No condensing Storage Temp. & Hum. -30℃~85℃; 10%~95%RH No condensing SAFETY &EMC   (Note 5) Safety Standards GB4943-2001; EN60950-1:2006 Withstand Voltage Primary-Secondary:3.0KVac;≤10mA .Primary-PG:1.5KVac;≤10mA. Secondary-PG:0.5KVDC;≤10mA. Output V1—V2: 0.5KVDC;≤10mA. Test time:1 min Isolation Resistance ≥100M ohms EMI Conduction&Radiation Compliance to EN55022(CISPR22)ClassB Harmonic Current Compliance to EN61000-3-2,17625.1-2003 EMSImmunity Compliance to EN61000-4-2,3,4,5,6,8,11;ENV50204,light industry level,criteriaA OTHERS MTBF (MIL-HDBK-217F) More than 100,000Hrs (25℃, Full load) Dimension (L*W*H) 199×98×40mm Packing 0.75Kg/pcs,20PCS/CTN, 15KGS. Cooling method Cooling by free air convection NOTE 1.    CMG-H150D12G+24 Total output power can’t exceed 150W, Label is marked by the Max current. Recommend the loading is 12V/5A,24V/3.75A.   2.    CMG-H150D24G+12Total output power can’t exceed 150W, Label is marked by the Max current. Recommend the loading is 24V/5A,12V/3.0A.  3.    All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 4.    Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor. 5.    The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. Powerld enterprises is specialized in switching power supply since 1991, obtained ISO9001 certificate in 2002, ISO14001 certificate in 2006.As a professional switching power supply manufacturer,Powerld can supply a broad range of power supply,we can not only supply our customers with high quality products,but also our best service and fast delivery time.

GST-H150SX-M power supply
GST-H150SX-M

Ø  High Efficiency, and High reliability Ø  Output protections: OCP/OPP/SCP Ø  Wide operating ambient temperature (-10℃~50℃) Ø  All using 105℃ long life electrolytic capacitors. Ø  100% full load burn-in test Ø  1 years warranty SPECIFICATION MODEL GST-H150S8.5-M GST-H150S12-M GST-H150S24-M GST-H150S28-M GST-H150S36-M GST-H150S48-M OUTPUT DC Output 8.5V 12V 24V 28V 36V 48V Rated Current 17.5A 12.5A 6.0A 5.5A 4A 3.0A CurrentRange    0~17.5A 0~12.5A 0~6.0A 0~5.5A 0~4.0A 0~3.0A Ripple and Noise  Note 2 100Mv 120mV 200mV 200mV 200 mV 200mV Voltage ADJ. Range ±5% of rated output voltage Voltage Accuracy ±2.0 Line Regulation ±0.5% Load Regulation ±1.0% Set-up Time <=1.0S (220Vac input, Full load) Hold up Time >=20mS(220Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT VoltageRange  176Vac~265Vac FrequencyRange 47Hz~63Hz Efficiency (Typical) 220Vac 76% 80% 81% 82% 85% 85% AC Current (max.) 4.0A 2.0A 1.9A 2A 2.0A 1.8A 0.50A Inrush Current (Typical) 40A@220Vac  Cold start Leakage Current <3.5mA PROTECTION Over Current 105%~150% of rated output current, auto recovery Over Power 105%~150% of rated output current, auto recovery Shorted Circuit Long-term mode,auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -10℃~50℃; 20%~90%RH No condensing Storage Temp. & Hum. -25℃~85℃; 10%~95%RH No condensing SAFETY &EMC   Safety Standards EN60950-1 Withstand Voltage Primary-Secondary:1.5KVac; Primary-PG:1.5KVac; Secondary-PG:0.5KVDC Isolation Resistance 100M ohms OTHERS MTBF (MIL-HDBK-217F) More than 100,000Hrs (25℃, Full load) Dimension (L*W*H) 199×98×40mm Connection 7P/8.025mm barrier terminal block Cooling method Cooling by free air convection NOTE 1.     All parameters NOT specially mentioned are measured at rated input, rated load and 25℃of ambient temperature. 2.     Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor. Powerld enterprises is specialized in switching power supply since 1991, obtained ISO9001 certificate in 2002, ISO14001 certificate in 2006.As a professional switching power supply manufacturer,Powerld can supply a broad range of power supply,we can not only supply our customers with high quality products,but also our best service and fast delivery time.

PD-150-X power supply
PD-150-X

Ø  AC input selectable by switch(115Vac/230Vac) Ø  High Efficiency, and High reliability Ø  Output protections: OLP/OVP/SCP Ø  Wide operating ambient temperature (-25℃~70℃) Ø  All using 105℃ long life electrolytic capacitors. Ø  100% full load burn-in test Ø  3 years warranty       SPECIFICATION                                                       MODEL PD-150-5 PD-150-12 PD-150-15 PD-150-24 PD-150-48 OUTPUT DC Output 5V 12V 15V 24V 48V Rated Current 26A 12.5A 10A 6.5 A 3.3A Current Range     Note 1 0~26A 0~12.5A 0~10A 0~6.5A 0~3.3A Ripple and Noise  Note 2 0~70℃ <60mV <120mV <120mV <120mV <200mV -25℃ <100mV <150 mV <150 mV <150 mV <200 mV Voltage ADJ.  Range 4.6V-5.5V 11.0V-13.0V 13.7V-16.2V 22.4V-27.3V 44.7V-51.7V Voltage Accuracy ±2.0% ±1.0% ±1.0% ±1.0% ±1.0% Line Regulation/ ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% Load Regulation ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% Set-up Time <2.0S (115Vac input, Full load); <1.0S (230Vac input, Full load) Hold up Time >10mS(115Vac input, Full load); >20mS(230Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT Voltage Range   Note 3 88Vac~132Vac/ 176Vac~264Vac Frequency Range 47Hz~63Hz Efficiency ( Typical) 115Vac input 78% 83% 83% 85% 85% 230Vac input 79% 84% 84% 86% 86% AC Current (max.) <3.5A Inrush Current (Typical) <20A@115Vac    <40A@230Vac      Cold start Leakage Current <0.25mA@115Vac    <2.0mA@230Vac PROTECTION Over Load 105%~150% of rated output current , hiccup mode,auto recovery Over Voltage 120%~150% of rated output voltage, shut down Short Circuit Long-term mode, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -25℃~70℃;  20%~90%RH  No condensing(refer to the derating curve) Storage Temp. & Hum. -40℃~85℃;  10%~95%RH  No condensing SAFETY &EMC   (Note 4) Safety Standards UL60950-1; EN60950-1:2006 Withstand Voltage Primary-Secondary:3.0KVac; ≤10mA .Primary-PG:1.5KVac; ≤10mA. Secondary-PG:0.5KVDC;≤10mA. Isolation Resistance ≥100M ohms EMI Conduction&Radiation Compliance to EN55022, Class B Harmonic Current Compliance to EN61000-3-2 EMS Immunity Compliance to EN61000-4-2,3,4,5,6,8,11; heavy industry level OTHERS MTBF (MIL-HDBK-217F) 301649Hrs (25℃, Full load) Dimension  (L*W*H) 199×98×38mm Packing 20PCS/CTN, 15KGS, 0.04CBM Cooling method Cooling by free air convection NOTE 1.     All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2.     Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor. 3.  AC input range selected by switch. 4.  The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. 5.  Powerld offer accessories for Din-35 rail bar. Please contact sales staff for details. We focus on your industrial power supply project needs, Offering reliable quality and high cost-effective products is always our top priority. Effective Communication within 24 hours.

PS-100-X power supply
PS-100-X

Ø  High AC input 176~264Vac Ø  High power density,High effiency and reliability Ø  Output protections: OLP/OVP/SCP Ø  Wide operating ambient temperature (-20℃~70℃) Ø  All using105℃long life electrolytic capacitors. Ø  100% full load burn-in test Ø 3’’*5’’ compact size Ø  2 years warranty MODEL PS-100-12 PSGZM-H25S8.5 GZM-H25S12II PS-100-24 OUTPUT DC Output 12V 8.5V 12V 24V Rated Current 8.33A 3A 2 A 4.16A CurrentRange   Note 1 0~8.33A 0~3A 0~2A 0~4.16A Ripple and Noise Note 2 0~70C 100mV 120mV -20C~0 120mV 85mV 120mV 120mV Voltage ADJ. Range ±10% of rated output voltage Voltage Accuracy ±1.0% ±3.0% ±5.0% ±2.0% Line Regulation ±0.5% ±0.5% ±1.0% ±0.5% Load Regulation ±1.0% ±2.0% ±1.0% ±1.0% Set-up Time <2.0S (220Vac input, Full load) Hold up Time >10mS(220Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshootand Undershoot <5.0% INPUT VoltageRange   176Vac~264Vac FrequencyRange 47Hz--63Hz Efficiency ( Typical) 83% 85% AC Current (max.) 1.5A 0.5A 2.5A 0.3A 1.5A Inrush Current (Typical) <50A@220Vac    Cold start Leakage Current Input-Output: <0.25mA; Output-PG: <3.5mA PROTECTION Over Current 105%~150% of rated output current, hiccup mode, auto recovery Over Voltage 110%~140% of rated output voltage, hiccup mode, auto recovery Short Circuit Long term mode, Auto recovery ENVIRONMENT OperatingambTemp& Hum -20℃~70℃; 20%~90%RH No condensing Storage Temp. & Hum. -40℃~85℃; 10%~95%RH No condensing SAFETY &EMC   Note 3 Safety Standards GB4943-2001; EN60950-1:2006 Withstand Voltage Primary-Secondary:3.0KVac;≤10mA .Primary-PG:1.5KVac;≤10mA .Secondary-PG:0.5KVDC;≤10mA . Isolation Resistance 100M ohms EMI Conduction&Radiation Compliance to EN55022(CISPR22)ClassB EMSImmunity Compliance to EN61000-4-2,3,4,5,6,8;ENV50204A, heavy industry level OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension (L*W*H) 127×76.2×32.5mm Packing 24PCS/CTN, 8.5KGS, 0.02CBM Cooling method Cooling by free air convection NOTE 1.All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2.Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3.The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. Focus on the development of Industrial power supply for many years,make efforts to meet customers' requirements and search for long-term cooperation.24 hours online service affiliates you to contact us.

EPA-A30H Power Supply
EPA-A30H

The power supply for the system,with the following featuresand functions: 1、Input range 90-286Vac, 53.5Vdc output, PFC, Self contains MCU. 2、The parameter can be controlled by the supervisory monitoring unit through RS485. 3、It features input over/under voltage protection, output over current protection, output overvoltage protection, output short circuit protection, N+1 redundancy and current sharing. 4、It is in compliant with TUV . 1.3 Main specifications Model OutputVoltage(Vdc) Output Current Range(A) Output Voltage Range(Vdc) Ripple(p-p) (Rated Load, Width Limited20MHz) EPA-A30H 53.5 0—30 42—58 200mV 2. Model definitions 2.1 Model comparison External model Internalmodels EPA-A30H EPA-A30H 3. PIN definition: PIN  Signal Remark A1、A2、B1、B2 L AC input A4、A5、B4、B5 N AC input A8 to A11 B8 to B11 PE Protection ground A13 to A21 48V+ DC+ A22 Pre-Charge B13 to B22 48V- DC- A23 NC A24 NC B23 NC B24 NC B25 SHARE+ Module current share A25 NC A26 PS-enable Before powermust beshorted to GND,make sure themoduleis enabled B26 PS-present A27 GND B27 ADDR0 Address line A28 ADDR1 B28 ADDR2 A29 5V+ RS485 power+ A30 5VGND RS485 power- B29 RS485+ Communication wire B30 RS485- Communication wire 4. Environmental Conditions  4.1 Working conditions No. Items Technical Specifications Unit Remarks 1 Operating Temperature -33—+65 ℃ -40℃full load start up,+55~+65℃derating 20% in linearity. 2 Relative Humidity 5—90 % No condensation 3 Altitude 0-5000 m derate1℃with every 200 meters’ rising at 2000-5000m 4 Cooling Forced cooling,Draw air from the front and exhausts heat from the behind and this module has temperature-sensing timing function. 4.2 Storage Conditions No. Items Technical Specifications Unit Remarks 2 Storage Temperature -40—+70 ℃ 3 Relative Humidity 5—95 % No condensation 4 Altitude 0-5000 m derate1℃with every 200 meters’ rising at 2000-5000m 4.3.1Input Characteristics No. Item Technical Requirement Unit Remark 1 Rated input voltage 200—240 Vac Max AC input voltage 310VAC(static state),no damage to the unit for long time AC Input voltage range 90—290 2 Frequency 45—65(typical 50/60) Hz 3 PFC ≥0.99 Rated input, rated load 4 Power transformation point 170-174 Vac The details refer to power transform characteristic curve diagram 5 Max input current 15 A Low voltage full load 6 Inrush current ≤30 A 264Vac 4.3.2Output Characteristics No. Item Technical Requirement Unit Remark 1 Output voltage range adjustable 42—58 Vdc Operate through the monitoring unit (testing condition:empty load) 2 Rated output voltage 53.5±0.5 Vdc Input220Vac 3 Output power 1605 W 154—286Vacinput 802 W 90—154Vac input 4 Efficiency ≥94%  220Vac/rated load current ≥88% 110Vac/rated load current 5 Temperature coefficient ≤±0.02 %/℃ 6 Ripple and noise ≤200 mVp-p Oscillograph band width is 20MHz.Parallel 10u+104 Capacitor with probe 7 Starting up output delay 3—8 S 0VDCfrom rated input voltage to42VDC 8 Turn on/off overshoot amplitude ≤±5 % 9 Dynamic response Overshoot range △V:≤±5 % Load change at 25%—50%—25% or 50%—75%—50%, jumping rate is0.1A/us; and the jumping period is 4ms; the two half periods are the same Recovery time  △t:≤200 µS 10 Combined regulation ≤±1% 11 Current sharing imbalance ≤±5% % At the range of 50~100%load 4.3.3 Protection Characteristics No. Item Technical Requirement Unit Remark 1 Input under voltage protection point ≤85 Vac Can auto recover, 2 Input under voltage recovery point ≤88 Vac The return difference≥5V 3 Input over voltage protection ≥295 Vac Can auto recover Output Current0A(Test by AC SOURCE+ booster) 4 Input over voltage recovery point ≥286 Vac The return difference≥5V 5 Input over current protection              - - The AC input L and N wire have fuse 6 Output over voltage protection point 58.5—60.5 Vdc Constant voltage 7 Output current limit protection point          31≤I≤34 A Can auto recover 8 Short circuit protection Endure long time short circuit without damage and auto recover. The module will hiccup 5 minutes before it locked itself. 9 Over temperature protection Auto-recoverable when temperature is less than65℃ 4.4 Safety requirements 4.4.1Safety requirements No. Item Criterions Remark 1 Dialectical strength Input-output 4242Vdc/10mA/ 1min No flyover, no breakdown. Input-ground 2121Vdc/10mA/ 1min Output-ground 700Vdc/10mA/ 1min 2 Isolation resistance Input-output ≥10MΩ@500Vdc Under normal air pressure,humidity 90%, Input-ground ≥10MΩ@500Vdc Output-ground ≥10MΩ@500Vdc 3 Touch current (Input-ground) ≤3.5mA 264Vac/60Hz 4 Safety approval In compliant with TUV EN60950-1 4.4.2EMC characteristics No. Item Criterions Remark 1 EMC CE CLASS B       EN55022 RE CLASS B  EN55022 EFT LEVEL 3 B IEC61000-4-4 SURGE LEVEL 4 B (difference mode2KV, common mode 4KV) IEC61000-4-5 DIP Drop to 70%UT,duration 100ms,at angle of 0°,45°,90°,135°,180°,225°,2...

#
