Security Power Supply

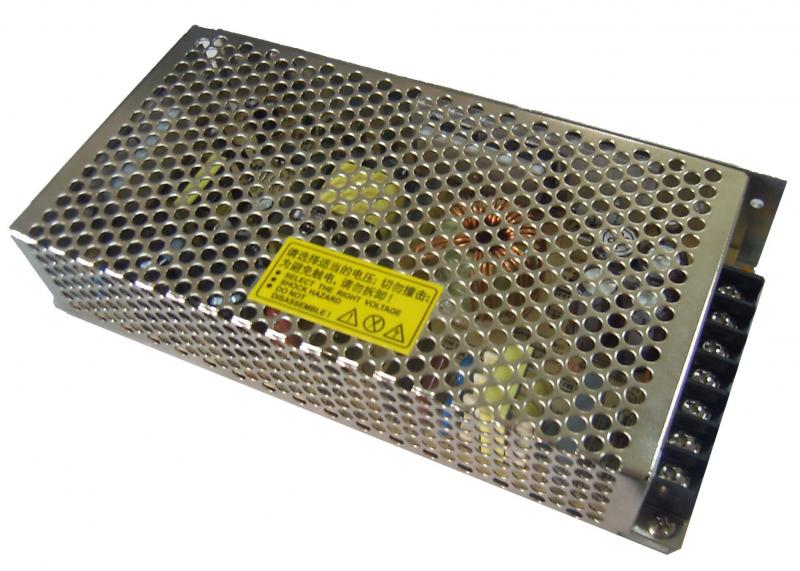

CMG-H150D5G+12-M

CMG-H150D5G+12-M

  • Brand:

    POWERLD
  • Item NO.:

    CMG-H150D5G+12-M
  • Wattage (W):

    150
  • Input:

    176~264Vac
  • Output:

    5V+12V
  • PFC:

    N
  • Conformal Coating:

    N
  • Approval:

    EN62368-1
  • Dimension:

    199×99×38mm
  • Product Detail

Features:

Ø  High AC voltage input (176~264Vac)

Ø  High Efficiency, and High reliability

Ø  Output protections: SCP/OVP/OPP/OLP

Ø  Wide operating ambient temperature (-25~65)

Ø  All using 105℃ long life electrolytic capacitors.

Ø  100% full load burn-in test

Ø  2 years warranty

        Ø  Isolated Dual Outputs

MODEL

CMG-H150D5G+12-M

OUTPUT

DC Output

V1

V2

5V

12V

Rated Current

10A

8A

1~10A

0.8~8A

Ripple and Noise Note2

0~65

≤50mV

≤120mV

-25℃

≤100mV

≤240mV

Voltage ADJ.  Range

4.6~5.4V

/

Voltage Accuracy

±1.0%

±10.0%

Line Regulation

±0.5%

±1.0%

Load Regulation

±3.0%

±10.0%

Set-up Time

1.5S (220Vac input, Full load)

Hold up Time

20mS(220Vac input, Full load)

Temperature Coefficient

±0.03%/℃

Overshoot and Undershoot

<5.0%

INPUT

Voltage Range

176Vac~264Vac

Frequency Range

47Hz--63Hz

Efficiency ( Typical)

75%

AC Current (max.)

<1.9A

Inrush Current (Typical)

<50A@220Vac      Cold start

Leakage Current

Input—output:<0.25mA     Input—PG:<3.5mA

PROTECTION

Over Power

175~225W, Hiccup mode, auto recovery

Over Current

V1: 11~22A, hiccup mode, auto recovery

Over Voltage

V1: 5.25~7.5V, Hiccup mode, auto recovery

Shorted Circuit

Long-term mode, auto recovery

ENVIRONMENT

Operating amb. Temp. & Hum.

-25℃~65℃;  20%~90%RH  No condensing

Storage Temp. & Hum.

-30℃~85℃;  10%~95%RH  No condensing

SAFETY &EMC

(Note 5)

Safety Standards

GB4943/EN60950

Withstand Voltage

Primary-Secondary: 3.0KVac/10mA ; Primary-PG:1.5KVac/10mA.

Secondary-PG: 0.5KVDC/10mA.  Output V1—V2: 0.5KVDC/10mA. Test time:1 min

Isolation Resistance

10M ohms

EMI Conduction&Radiation

Compliance to EN55022 Class B

Harmonic Current

Compliance to EN61000-3-2, Class A

EMS Immunity

Compliance to EN61000-4-2,3,4,5,6,8,11;

OTHERS

MTBF (MIL-HDBK-217F)

More than 200,000Hrs (25℃, Full load)

Dimension  (L*W*H)

199×99×38mm

Packing

20PCS/CTN, 15KGS, 0.04CBM

Cooling method

Cooling by free air convection

NOTE



1.     All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature.

2.     Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor.

3.  The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on http://www.powerld.com.cn.
