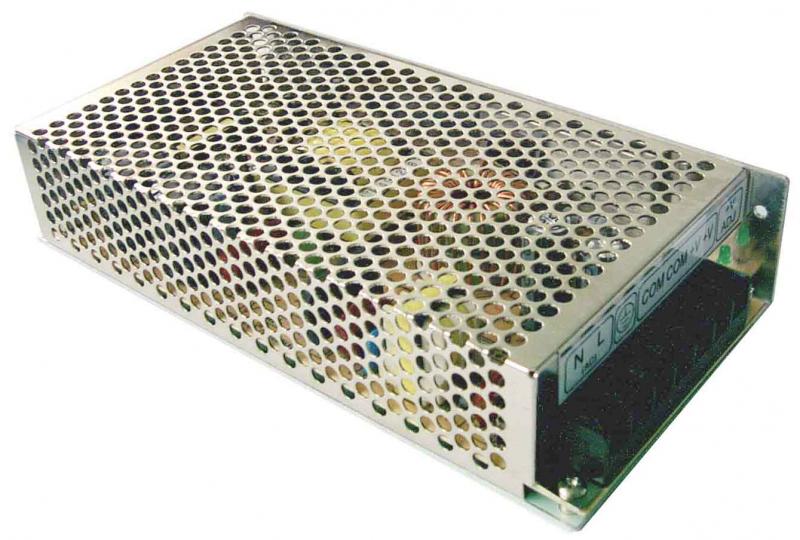

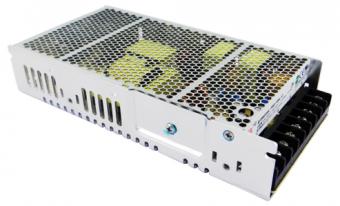

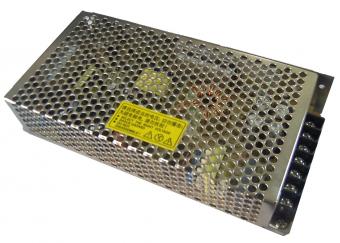

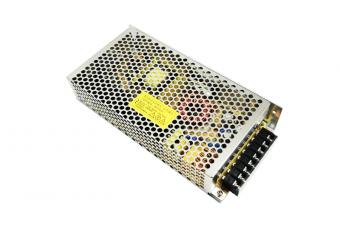

GST-H150SX-M

  • Brand:

    POWERLD
  • Item NO.:

    GST-H150SX-M
  • Wattage (W):

    150
  • Input:

    176Vac~265Vac
  • Output:

    8.5, 12, 24, 28, 36, 48
  • PFC:

    N
  • Conformal Coating:

    N
  • Approval:

    N
  • Dimension:

    199×98×40mm
  • Product Detail

Ø  High Efficiency, and High reliability

Ø  Output protections: OCP/OPP/SCP

Ø  Wide operating ambient temperature (-10℃~50℃)

Ø  All using 105℃ long life electrolytic capacitors.

Ø  100% full load burn-in test

Ø  1 years warranty


SPECIFICATION

MODEL

GST-H150S8.5-M

GST-H150S12-M

GST-H150S24-M

GST-H150S28-M

GST-H150S36-M

GST-H150S48-M

OUTPUT

DC Output

8.5V

12V

24V

28V

36V

48V

Rated Current

17.5A

12.5A

6.0A

5.5A

4A

3.0A

CurrentRange

0~17.5A

0~12.5A

0~6.0A

0~5.5A

0~4.0A

0~3.0A

Ripple and Noise  Note 2

100Mv

120mV

200mV

200mV

200 mV

200mV

Voltage ADJ. Range

±5% of rated output voltage

Voltage Accuracy

±2.0

Line Regulation

±0.5%

Load Regulation

±1.0%

Set-up Time

<=1.0S (220Vac input, Full load)

Hold up Time

>=20mS(220Vac input, Full load)

Temperature Coefficient

±0.03%/℃

Overshoot and Undershoot

<5.0%

INPUT

VoltageRange

176Vac~265Vac

FrequencyRange

47Hz~63Hz

Efficiency (Typical)

220Vac

76%

80%

81%

82%

85%

85%

AC Current (max.)

4.0A

2.0A

1.9A

2A

2.0A


1.8A

0.50A

Inrush Current (Typical)

40A@220Vac  Cold start

Leakage Current

<3.5mA


PROTECTION

Over Current

105%~150% of rated output current, auto recovery

Over Power

105%~150% of rated output current, auto recovery

Shorted Circuit

Long-term mode,auto recovery

ENVIRONMENT

Operating amb. Temp. & Hum.

-10℃~50℃; 20%~90%RH No condensing

Storage Temp. & Hum.

-25℃~85℃; 10%~95%RH No condensing

SAFETY &EMC


Safety Standards

EN60950-1

Withstand Voltage

Primary-Secondary:1.5KVac; Primary-PG:1.5KVac; Secondary-PG:0.5KVDC

Isolation Resistance

100M ohms

OTHERS

MTBF (MIL-HDBK-217F)

More than 100,000Hrs (25℃, Full load)

Dimension (L*W*H)

199×98×40mm

Connection

7P/8.025mm barrier terminal block

Cooling method

Cooling by free air convection


NOTE

1.     All parameters NOT specially mentioned are measured at rated input, rated load and 25℃of ambient temperature.

2.     Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor.



Powerld enterprises is specialized in switching power supply since 1991, obtained ISO9001 certificate in 2002, ISO14001 certificate in 2006.As a professional switching power supply manufacturer,Powerld can supply a broad range of power supply,we can not only supply our customers with high quality products,but also our best service and fast delivery time.
