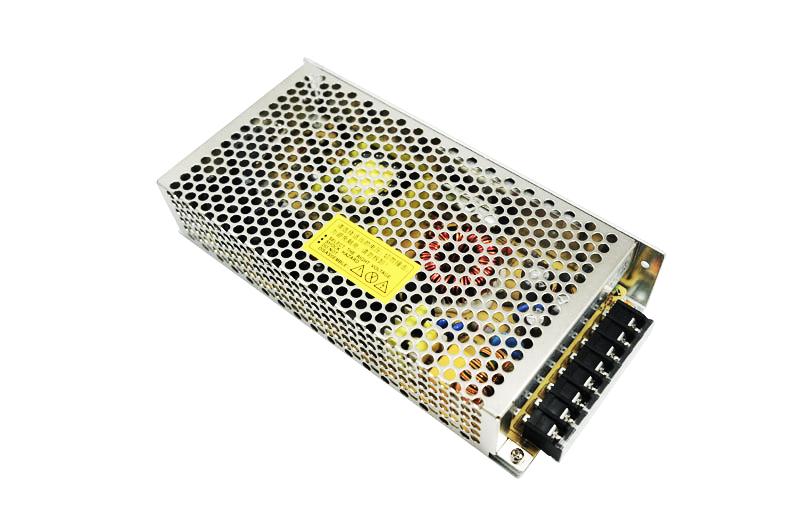

CMG-H150DXG+X

CMG-H150DXG+X

  • Brand:

    POWERLD
  • Item NO.:

    CMG-H150DXG+X
  • Wattage (W):

    150
  • Input:

    176Vac~264Vac
  • Output:

    12+24, 24+12
  • PFC:

    N
  • Conformal Coating:

    N
  • Approval:

    N
  • Dimension:

    199×98×40mm
  • Product Detail

Ø  High Efficiency, and High reliability

Ø  Output protections: SCP/OVP/OPP/OLP

Ø  Wide operating ambient temperature (-10℃~50℃)

Ø  All using 105℃ long life electrolytic capacitors.

Ø  100% full load burn-in test

Ø  2 years warranty

Ø  Isolated Dual Outputs

SPECIFICATION

MODEL

CMG-H150D12G+24

CMG-H150D24G+12

OUTPUT

DC Output

V1

12.0V

24.0V

V2

24.0V

12.0V

Rated Current

V1

5A

6A       Note 2

V2

6A      Note 1

5A

CurrentRange Note 3

V1

0.5~5.0A

0~6.0A

V2

0.6~6.0A

0~5.0A

Ripple and NoiseNote4

0~65℃

V1

120mV

240mV

V2

240mV

120mV

Ripple and Noise

-25~0℃

V1

240mV

480mV

V2

480mV

240mV

Voltage ADJ. Range

11.4V~12.6V

22.8V~25.0V

Voltage Accuracy

V1

±1.0%

±1.0%

V2

±10.0%

±10.0%

Line Regulation

V1

±0.5%

V2

±1.0%

Load Regulation

V1

±3.0%

V2

±10.0%

Set-up Time

<1.0S (230Vac input, Full load)

Hold up Time

>20mS(230Vac input, Full load)

Temperature Coefficient

±0.03%/℃

Overshoot and Undershoot

<5.0%

INPUT

VoltageRange

176Vac~264Vac

FrequencyRange

47Hz--63Hz

Efficiency ( Typical)

80%

80%

AC Current (max.)

2.0A/176VAC

Inrush Current (Typical)

50A@220Vac     Cold start

Leakage Current

Input—output:<0.25mA    Input—PG:<3.5mA

PROTECTION

Over Power

105%~150% of rated output current, auto recovery

Over Current

V1

110%~220%

Auto recovery

110%~150%

Auto recovery

Over Voltage

V1: 110%~150% of rated output voltage, auto recovery

Shorted Circuit

Long-term mode, auto recovery

ENVIRONMENT

Operating amb. Temp. & Hum.

-10℃~50℃; 20%~90%RH No condensing

Storage Temp. & Hum.

-30℃~85℃; 10%~95%RH No condensing

SAFETY &EMC

(Note 5)

Safety Standards

GB4943-2001; EN60950-1:2006

Withstand Voltage

Primary-Secondary:3.0KVac;≤10mA .Primary-PG:1.5KVac;≤10mA.

Secondary-PG:0.5KVDC;≤10mA. Output V1—V2: 0.5KVDC;≤10mA. Test time:1 min

Isolation Resistance

≥100M ohms

EMI Conduction&Radiation

Compliance to EN55022(CISPR22)ClassB

Harmonic Current

Compliance to EN61000-3-2,17625.1-2003

EMSImmunity

Compliance to EN61000-4-2,3,4,5,6,8,11;ENV50204,light industry level,criteriaA

OTHERS

MTBF (MIL-HDBK-217F)

More than 100,000Hrs (25℃, Full load)

Dimension (L*W*H)

199×98×40mm

Packing

0.75Kg/pcs,20PCS/CTN, 15KGS.

Cooling method

Cooling by free air convection

NOTE

1.    CMG-H150D12G+24 Total output power can’t exceed 150W, Label is marked by the Max current. Recommend the loading is 12V/5A,24V/3.75A.

2.    CMG-H150D24G+12Total output power can’t exceed 150W, Label is marked by the Max current. Recommend the loading is 24V/5A,12V/3.0A.

3.    All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature.

4.    Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor.

5.    The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives.



Powerld enterprises is specialized in switching power supply since 1991, obtained ISO9001 certificate in 2002, ISO14001 certificate in 2006.As a professional switching power supply manufacturer,Powerld can supply a broad range of power supply,we can not only supply our customers with high quality products,but also our best service and fast delivery time.
