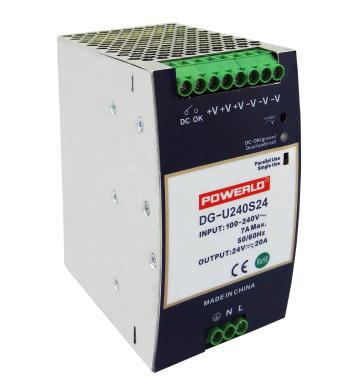

DG-U240SX

  • Brand:

    POWERLD
  • Item NO.:

    DG-U240SX
  • Wattage (W):

    240
  • Input:

    90Vac~264Vac, 127Vdc-370Vdc
  • Output:

    24, 48
  • PFC:

    Y
  • Conformal Coating:

    Y
  • Approval:

    EN62368-1
  • Dimension:

    70*124*127mm
  • Product Detail

Ø  Universal AC input range(90~264Vac)

Ø  Built-in active PFC,PF>0.94

Ø  High efficiency up to 87%

Ø  Built-in current limiting circuit

Ø  Output protections: OVP/OLP/SCP/OTP

Ø  Wide operating ambient temp (-20℃~70℃)

Ø  Can be installed on TS-35/7.5 or TS-35/15

Ø  100% full load burn-in test

Ø  PCB soldering side with conformal coating

Ø  Suitable for critical applications

Ø  Altitude up to6000m

Ø  Ultra-slim,70mm width

Ø  Cooling by free air convection

Ø  3 years warranty

SPECIFICATION

MODEL

DG-U240S24

DG-U240S48

OUTPUT

DC Output

24V

48V

Rated Current

10A

5A

CurrentRange    Note 1

0~10A

0~5A

Ripple and Noise

Note 2

0~70

≤120mV

≤240mV

-20℃

≤240mV

≤480mV

Voltage ADJ. Range

24~28V

48~56V

Voltage Accuracy

±1.0%

Line Regulation

±0.5%

Load Regulation

±1.0%

Set-up Time

<2S@230Vac

Hold up Time

≥20mS@230Vac    Full load

Temperature Coefficient

±0.03%/℃

Overshoot and Undershoot

<5.0%

INPUT

VoltageRange

90Vac~264Vac, 127Vdc-370Vdc

FrequencyRange

47Hz~63Hz

Efficiency ( Typical) @ 230Vac

87%

88%

AC Current (max.)

<3A/115Vac ; <2.5 A/230Vac

<3.5A/115Vac; <2.5A/230Vac

Inrush Current (Typical)

<30A/115Vac; <60A/230Vac  Cold start

Power Factor

0.98/110VAC,  0.94/230VAC

Leakage Current

Input—output:<0.25mA    Input—PG:<3.5mA (264Vac input, 63Hz)

PROTECTION

Over Load

10.3~11.5A

5.5~6.5A

Protection type: Constant current

Over voltage

28~35V

58~63V

Protection type: Shut down, auto recovery

Over temperature

100±5℃, detect on heat sink of power transistor; shut down O/P, auto recovery after fault condition removed.

Short Circuit

Long-term mode, auto recovery

Operating amb. Temp. & Hum.

-20℃~70℃; 20%~90%RH No condensing (pls refer to derating curve)

ENVIRONMENT

Storage Temp. & Hum.

-40℃~85℃; 5%~95%RH No condensing

Safety Standards

UL508, UL60950, EN60950

SAFETY &EMC

Note 3

Withstand Voltage

Primary-Secondary: 3.0KVac/10mA .Primary-PG: 1.5KVac/10mA. Secondary-PG: 0.5KVdc/10mA.

Isolation Resistance

100Mohms

EMC Emission

Compliance to EN55022, EN55024  CLASS B

Harmonic Current

Compliance to EN61000-3-2, CLASS A

EMC Immunity

Compliance to EN61000-4-2,3,4,5,6,11; heavy industry level

MTBF (MIL-HDBK-217F)

More than 300,000Hrs (25℃, Full load)

OTHERS

Dimension (L*W*H)

70*124*127mm

Packing

10pcs/CTN, 11.5Kgs,0.04cbm

Cooling method

Cooling by free air convection


NOTE

1. All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature.

2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor.

3.The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” onhttps://www.powerld.com.
