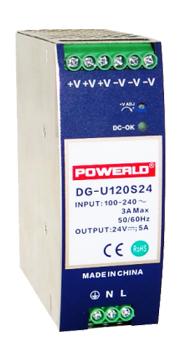

DG-U120SX

  • Brand:

    POWERLD
  • Item NO.:

    DG-U120SX
  • Wattage (W):

    120
  • Input:

    90Vac~264Vac, 127Vdc-370Vdc
  • Output:

    12, 24, 48
  • PFC:

    N
  • Conformal Coating:

    Y
  • Approval:

    UL/CB/CE/EN62368-1
  • Dimension:

    124*119*45mm
  • Product Detail

Ø  Universal AC input range(90~264Vac)

Ø  High efficiency up to 89%

Ø  Built-in current limiting circuit

Ø  Output protections: OVP/OLP/SCP/OTP

Ø  Wide operating ambient temp (-20℃~70℃)

Ø  Built-in DC OK function

Ø  Can be installed on TS-35/7.5 or TS-35/15

Ø  100% full load burn-in test

Ø  Suitable for critical applications

Ø  Operating altitude up to6000m

Ø  PCB with conformal coating

Ø  Ultra-slim,45mm width

Ø  3 years warranty

SPECIFICATION

MODEL

DG-U120S12

DG-U120S24

DG-U120S48

OUTPUT

DC Output

12V

24V

48V

Rated Current

10A

5A

2.5A

CurrentRange    Note 1

0~10A

0~5A

0~2.5A

Ripple and Noise

Note 2

0~70

≤120mV

≤120mV

≤240mV

-20℃~0

≤240mV

≤240mV

≤480mV

Voltage ADJ. Range

12~14V

24~28V

48~56V

Voltage Accuracy

±1.0%

Line Regulation

±0.5%

Load Regulation

±1.0%

Set-up Time

<1.2S@230Vac ; <3.0mS@115Vac

Hold up Time

≥10mS@115Vac; ≥20mS@230Vac    Full load

Temperature Coefficient

±0.03%/℃

Overshoot and Undershoot

<5.0%

INPUT

VoltageRange

90Vac~264Vac, 127Vdc-370Vdc

FrequencyRange

47Hz~63Hz

Efficiency ( Typical)

85%

88%

89%

AC Current (max.)

<2.7 A/115VAC ; <1.35A/230VAC


Inrush Current (Typical)

20A/115Vac  ;  35A/230Vac  Cold start

Leakage Current

Input—output:<0.25mA    Input—PG:<3.5mA (264Vac input, 63Hz)

PROTECTION

Over Load

10.5~13A

5.25~6.5A

2.75~3.25A

Protection type: Constant current

Over voltage

15~18V

29~33V

58~63V

Protection type: Shut down, re-power on.

Over temperature

100±5℃, detect on heat sink of power transistor; shut down O/P, re-power on.

Short Circuit

Long-term mode, auto recovery

Operating amb. Temp. & Hum.

-20℃~70℃; 20%~90%RH No condensing (pls refer to derating curve)

ENVIRONMENT

Storage Temp. & Hum.

-40℃~85℃; 5%~95%RH No condensing

Safety Standards

UL508, UL60950, EN60950

SAFETY &EMC

Note 3

Withstand Voltage

Primary-Secondary: 3.0KVac/10mA .Primary-PG: 1.5KVac/10mA. Secondary-PG: 0.5KVac/10mA.

Isolation Resistance

10Mohms

EMC Emission

Compliance to EN55022, EN55024, FCC PART 15 Class B

Harmonic Current

Compliance to EN61000-3-2, CLASS A

EMC Immunity

Compliance to EN61000-4-2,3,4,5,6,11; heavy industry level

MTBF (MIL-HDBK-217F)

More than 500,000Hrs (25℃, Full load)

OTHERS

Dimension (L*W*H)

124*119*45mm

Packing

24pcs/CTN,15.0Kg, 0.04cbm

Cooling method

Cooling by free air convection


NOTE

1. All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature.

2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor.

3.The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on https://www.powerld.com.
