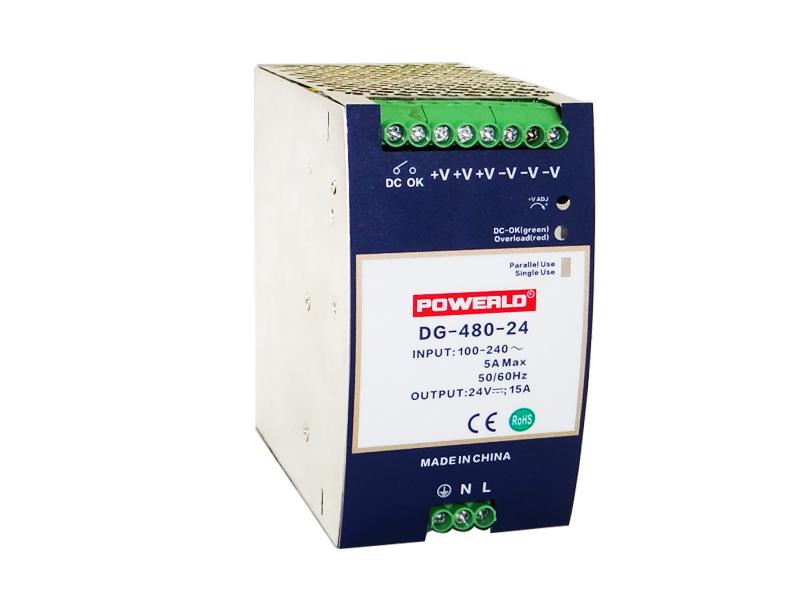

DG-480-X

  • Brand:

    POWERLD
  • Item NO.:

    DG-480-X
  • Wattage (W):

    480
  • Input:

    85Vac~264Vac, 130Vdc-350Vdc
  • Output:

    24, 48
  • PFC:

    Y
  • Conformal Coating:

    Y
  • Approval:

    UL/CB/CE/EN62368-1
  • Dimension:

    70*124*127mm
  • Product Detail

Ø  Universal AC input range(85~264Vac)

Ø  Support 1+1 or N+1 redundant system(suggest to use redundancy modules.)

Ø  Built-in active PFC,PF>0.95

Ø  High efficiency up to 94%

Ø  Built-in current sharing function

Ø  Built-in current limiting circuit

Ø  Output protections: OVP/OLP/SCP/OTP

Ø  Wide operating ambient temp (-25℃~70℃)

Ø  150%(720W) peak load capacity

Ø  Easy Fuse Tripping due to High Overload Current

Ø  Built-in DC OK relay contact

Ø  Can be installed on TS-35/7.5 or TS-35/15

Ø  100% full load burn-in test

Ø  Suitable for critical applications

Ø  Ultra-slim,70mm width

Ø  Free air convection

Ø  3 years warranty

SPECIFICATION

MODEL

DG-480-24

ABS-75-12

DG-480-48


OUTPUT

DC Output

24V

12V

48V

Rated Current

20A

6A

10A

CurrentRange    Note 1

0~20A

0~6A

0~10A

Ripple and Noise

Note 2

0~70

≤240mV

≤480mV

-25℃

≤480mV

≤480mV

Voltage ADJ. Range

24~28V

48~56V

Voltage Accuracy

±3.0%

Line Regulation

±0.5%

Load Regulation

±1.0%

Set-up Time

<3S@230Vac

Hold up Time

≥20mS(230Vac input, Full load)

Temperature Coefficient

±0.03%/℃

Overshoot and Undershoot

<5.0%

INPUT

VoltageRange

85Vac~264Vac, 130Vdc-350Vdc

FrequencyRange

47Hz~63Hz

Power Factor (typical)

0.99/110Vac    0.95/230Vac

Efficiency ( Typical)

93.8%

≥84%

93.8%


≥88%

AC Current (max.)

<7.0 A/100Vac       <3.5A/230Vac

Inrush Current (Typical)

<20A/110Vac     <40A/230Vac  Cold start

Leakage Current

Input—output:<0.25mA    Input—PG:<3.5mA

PROTECTION

Over Load

110%~150% of rated current, Constant current limiting for some time(150% of rated current, last 3S) then PS stop working for 7S,after 7S,if the load <=rated current, PS will work normally, auto recovery

Over voltage

28.8~33V, constant voltage, Auto recovery

58~63V, constant voltage, Auto recovery

Over temperature

115±5℃, detect on temperature controller; shut down O/P, auto recovery after temperature goes down.

Short Circuit

Long-term mode, auto recovery

ENVIRONMENT

Operating amb. Temp. & Hum.

-25℃~70℃; 20%~90%RH No condensing

Storage Temp. & Hum.

-40℃~85℃; 5%~95%RH No condensing

SAFETY &EMC

Note 3

Safety Standards

meet UL508, UL60950, EN60950

Withstand Voltage

Primary-Secondary: 3.0KVac/10mA .Primary-PG: 2.5KVac/10mA. Secondary-PG:0.5KVac/20mA.

Output-DC OK: 0.5KVac/1mA

Isolation Resistance

10Mohms

EMC Emission

Compliance to EN55022, EN55024, FCC PART 15 Class B

Harmonic Current

Compliance to EN61000-3-2, CLASS A

EMC Immunity

Compliance to EN61000-4-2,3,4,5,6,8,11; heavy industry level

OTHERS

MTBF (MIL-HDBK-217F)

More than 300,000Hrs (25℃, Full load)

Dimension (L*W*H)

70*124*127mm

Packing

10pcs/CTN, 13Kgs/CTN, 0.04cbm

Cooling method

Cooling by free air convection

Additional function

Power boost

150% of rated current

Parallel function

support

DC-OK

V On: when output voltage is up to 90% of rated output voltage

V Off: when output voltage is down to 80% of rated output voltage

DC-OK relay contact rating

Max 30V/1Aor 60V/0.3Aor 30Vac/0.3AResistive load

NOTE

1. All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature.

2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor.

3.The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on https://www.powerld.com.
