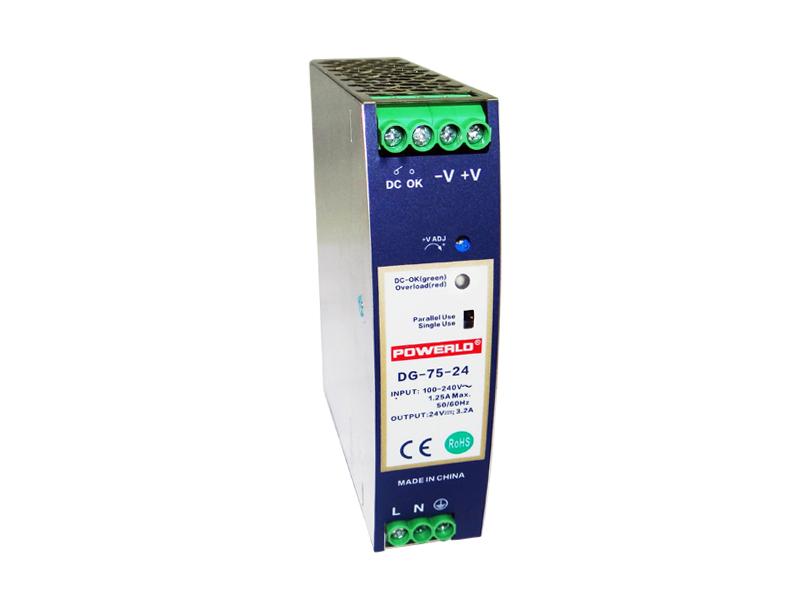

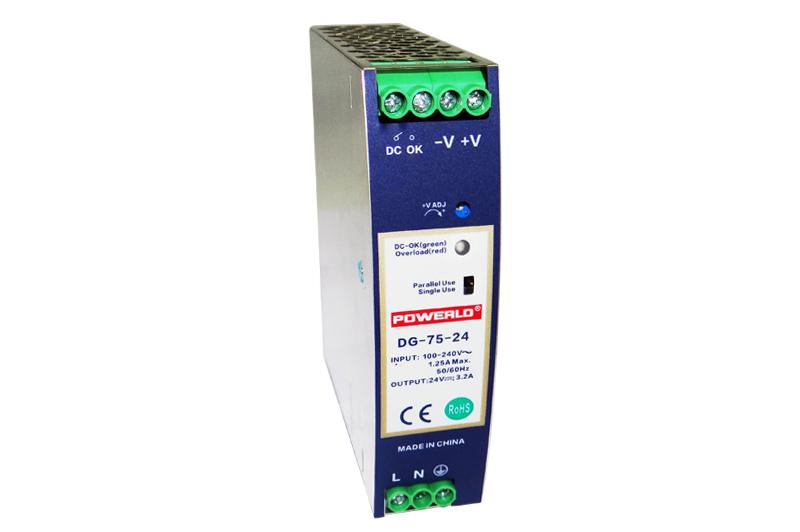

DG-75-X

  • Brand:

    POWERLD
  • Item NO.:

    DG-75-X
  • Wattage (W):

    75
  • Input:

    85Vac~264Vac, 127Vdc-360Vdc
  • Output:

    12, 24, 48
  • PFC:

    Y
  • Conformal Coating:

    Y
  • Approval:

    UL/CB/CE/EN62368-1
  • Dimension:

    124*119*32mm
  • Product Detail

Ø  Universal AC input range(85~264Vac)

Ø  Support 1+1 or N+1 redundant system(suggest to use redundancy modules.)

Ø  Built-in active PFC,PF>0.95

Ø  High efficiency up to 91%

Ø  Built-in current sharing function

Ø  Built-in current limiting circuit

Ø  Output protections: OVP/OLP/SCP/OTP

Ø  Wide operating ambient temp (-25℃~70℃)

Ø  150% peak load capacity

Ø  Easy Fuse Tripping due to High Overload Current

Ø  Excellent Partial Load Efficiency

Ø  Built-in DC OK relay contact

Ø  Can be installed on TS-35/7.5 or TS-35/15

Ø  100% full load burn-in test

Ø  Suitable for critical applications

Ø  Ultra-slim, 32mm width

Ø  3 years warranty

SPECIFICATION

MODEL

DG-75-12

DG-75-24

DG-75-48

OUTPUT

DC Output

12V


24V

48V

Rated Current

6.3A


3.2A

1.6A

CurrentRange    Note 1

0~6.3A


0~3.2A

0~1.6A

Ripple and Noise

Note 2

0~70

≤100mV

≤120mV

≤120mV

-25℃

≤200mV

≤240mV

≤240mV

Voltage ADJ. Range

12~14V

24~28V

48~56V

Voltage Accuracy

±1.0%

Line Regulation

±0.5%

Load Regulation

±1.0%

Set-up Time

<250mS@230Vac ; <500mS@100Vac

Hold up Time

≥20mS(230Vac input, Full load)

Temperature Coefficient

±0.03%/℃

Overshoot and Undershoot

<5.0%

INPUT

VoltageRange

85Vac~264Vac, 127Vdc-360Vdc

FrequencyRange

47Hz~63Hz

Power Factor (typical)

0.99/100Vac    0.95/230Vac

Efficiency ( Typical)

88%

91%

91%

AC Current (max.)

<0.95 A/100Vac       <0.45A/230Vac

Inrush Current (Typical)

<30A/100Vac     <60A/230Vac  Cold start

Leakage Current

Input—output:<0.25mA    Input—PG:<3.5mA

PROTECTION

Over Load

110%~150% of rated current, Constant power limiting for some time(150% of rated current, last 3S) then PS stop working for 7S,after 7S,if the load <=rated current, PS will work normally, auto recovery

Over voltage

15~18V

29~33V

58~65V

Protection type: Hiccup mode, Auto recovery

Over temperature

100±5℃, detect on heat sink of power transistor; shut down O/P, auto recovery after temperature goes down.

Short Circuit

Long-term mode, auto recovery

ENVIRONMENT

Operating amb. Temp. & Hum.

-25℃~70℃; 20%~90%RH No condensing

Storage Temp. & Hum.

-40℃~85℃; 5%~95%RH No condensing

SAFETY &EMC

Note 3

Safety Standards

meet UL508, UL60950, EN60950

Withstand Voltage

Primary-Secondary:3.0KVac;≤10mA .Primary-PG:2.5KVac;≤10mA. Secondary-PG:0.5KVac≤10mA.

Isolation Resistance

≥100M ohms

EMC Emission

Compliance to EN55022, EN55024, FCC PART 15 Class B

Harmonic Current

Compliance to EN61000-3-2, CLASS A

EMC Immunity

Compliance to EN61000-4-2,3,4,5,6,8,11; heavy industry level

OTHERS

MTBF (MIL-HDBK-217F)

More than 300,000Hrs (25℃, Full load)

Dimension (L*W*H)

124*119*32mm

Packing

28pcs/CTN,17.6Kg, 0.04cbm

Cooling method

Cooling by free air convection

Additional function

Power boost

150% of rated current

DC OK

V On: when output voltage is up to 90% of rated output voltage

V Off: when output voltage is down to 80% of rated output voltage

DC OK relay contact rating

Max 30V/1Aor 60V/0.3Aor 30Vac/0.3AResistive load

Parallel function

support

NOTE

1. All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature.

2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor.

3.The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on https://www.powerld.com


DIN rail power supply is a kind of switching power supply, which can convert unstable input voltage into stable output voltage. We can meet all industry standards of DIN rail power supply. Learn more, follow us, and leave us a message.
