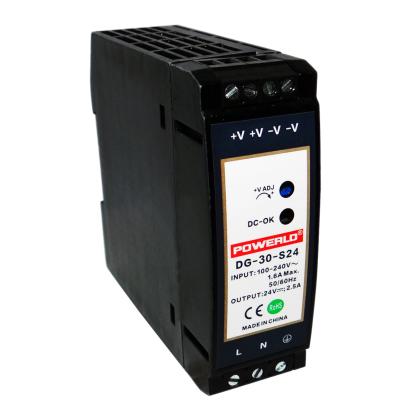

DG-30-SX

  • Brand:

    POWERLD
  • Item NO.:

    DG-30-SX
  • Wattage (W):

    30
  • Input:

    90Vac~264Vac, 127VDC-370VDC
  • Output:

    12, 24
  • PFC:

    N
  • Conformal Coating:

    Y
  • Approval:

    CE,EN62368-1
  • Dimension:

    103.7*32*97.5mm
  • Product Detail

Ø  Universal AC input range(90~264Vac)

Ø  High efficiency, long life and high reliability

Ø  Output protections: OVP/OLP/SCP

Ø  Wide operating ambient temp (-25℃~70℃)

Ø  Can be installed on TS-35/7.5 or 35/15

Ø  100% full load burn-in test

Ø  PCB with conformal coating

Ø  Suitable for critical applications

Ø  Cooling by free air convection

Ø  3 years warranty

SPECIFICATION

MODEL

DG-30-S12

DG-30-S24

OUTPUT

DC Output

12V

24V

Rated Current

2.5A

1.25A

CurrentRange    Note 1

0~2.5A

0~1.25A

Ripple and Noise

Note 2

10~50℃

≤50mV

≤70mV

-25~10℃

≤100mV

≤140mV

Voltage ADJ. Range

12~14V

24~28V

Voltage Accuracy

±1.0%

Line Regulation

±0.5%

Load Regulation

±1%

Set-up Time

<1.5S @230Vac Full load

Hold up Time

≥20mS @230Vac Full load

Temperature Coefficient

±0.03%/℃

Overshoot and Undershoot

<5.0%

INPUT

VoltageRange

90Vac~264Vac, 127VDC-370VDC(input V+ connect L, input V- connect N)

FrequencyRange

47Hz~63Hz

Efficiency ( Typical)

82% @230Vac input, full load

85% @230Vac input, full load

AC Current (max.)

<0.8A

Inrush Current (Typical)

50A/230Vac  Cold start

Leakage Current

Input—output:≤0.25mA  Input—PE: ≤3.5mA  (264Vac input, 63Hz)

PROTECTION

Over Load

3~4.0A, hiccup mode, auto recovery

1.5~2.5A, hiccup mode, auto recovery

Over voltage

15.0~16.8V, Constant voltage, auto recovery

28.8~31.2V, Constant voltage, auto recovery

Short Circuit

Long-term mode, auto recovery

ENVIRONMENT

Operating amb. Temp. & Hum.

-25℃~70℃; 20%~90%RH No condensing

Storage Temp. & Hum.

-40℃~85℃; 5%~95%RH No condensing

SAFETY &EMC

Note 3

Safety Standards

UL60950, EN60950

Withstand Voltage

Primary-Secondary: 3KVac/10mA; Primary-PE: 1.5KVac/10mA; Secondary-PE: 0.5KVac/10mA

Isolation Resistance

>10Mohms

EMC Emission

Compliance to EN55022, EN55024 Class B

Harmonic Current

Compliance to EN61000-3-2,CLASS A

EMC Immunity

Compliance to EN61000-4-2,3,4,5,6,11; heavy industry level

OTHERS

MTBF (MIL-HDBK-217F)

590,000Hrs (25℃, Full load)

Dimension (L*W*H)

103.7*32*97.5mm

Packing

36pcs/CTN, 8Kgs/CTN, 0.04cbm

Cooling method

Cooling by free air convection

NOTE

1. All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature.

2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor.

3.The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” onhttps://www.powerld.com.
