POWERLD is specialized in switching power supply. Founded in 1991, focusing on AC/DC enclosed power supplies, AC/DC open frame power supplies, Din Rail Power Supply, DC/DC Converter, meanwhile, more than 80 experienced engineers can provide you with very professional customized service.
Click To View
All Product CategoriesPOWERLD Enterprises Co., Ltd is founded in 1991, focusing on AC/DC enclosed power supplies, AC/DC open frame power supplies, Din Rail Power Supply, DC/DC Converter, etc. As a professional manufacturer of switching power supply, POWERLD has 3 strong R&D teams including 80 experienced enigneers, which can provide customers with standard products and customized serive.
Employees
Development experience
Monthly Capacity
Experienced R&D engineers
Production area
product models
As a professional switching power supply manufacturer, Powerld can supply a broad range of power supply such as AC/DC enclosed power supplies,AC/DC open frame power supplies,Din Rail Power Supply, DC/DC Converter…With our more than 29 years experience in switching power supply, we can not only supply our customers with high quality products,but also our best service and fast delivery time.

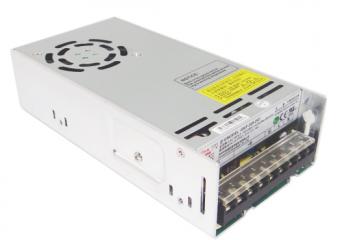

Ø Universal AC input (90~264Vac) Ø Built-in active PFC,PF>0.95 Ø No load power consumption<5W Ø Withstand 300Vac surge input Ø High efficiency up to 90% Ø Output protection: SCP/OLP/OPP/OVP/OTP Ø Wide operating ambient temperature (-30~70℃) Ø Operating altitude up to5000m Ø PCB soldering side with conformal coating Ø All using105 ℃long life electrolytic capacitor Ø 100% full load burn-in test Ø Cooling by free air convection Ø 3 years warranty SPECIFICATION MODEL PDF-350-12 PDF-350-24 PDF-350-48 OUTPUT DC Output 12V 24V 48V Rated Current 25A 14.6A 7.3A CurrentRange Note 1 0~25A 0~14.6A 0~7.3A Peak Load 30A(last 60S, 230Vac input) 18A(last 60S, 230Vac input) 9A(last 60S, 230Vac input) Ripple and Noise Note 2 0~70℃ ≤150mV ≤240mV ≤240mV -30℃ ≤240mV ≤480mV ≤480mV Voltage ADJ. Range 11.6~13.2V 23.5~26.5V 47~52.8V Voltage Accuracy ±3.0% Line Regulation ±1.0% Load Regulation ±2.0% Set-up Time ≤3S (230Vac input, Full load) Hold up Time ≥10mS (230Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT VoltageRange 90Vac~264Vac FrequencyRange 47Hz--63Hz Power Factor(Typical) PF>0.98/115VAC PF>0.95/230VAC Efficiency ( Typical) ≥90% (230Vac input, full load) ≥90% (230Vac input, full load) ≥93% (230Vac input, full load) AC Current (max.) <5.0A Inrush Current (Typical) <40A@230Vac <20A@115Vac Cold start Stand by power consumption <5W Leakage Current Input—output:<0.25mA Input—PG:<3.5mA PROTECTION Over Load 26.3~37.5A, constant current 15.33~21.9A, constant current 7.7~11A, constant current Over Power 315~450W, constant current 368~525W, constant current 368~525W, constant current Over Voltage 13.8~16.0V 26.5~36V 50~63V Constant voltage, auto recovery Over Temperature 95℃±5℃(detect on temperature controller) shut down o/p voltage, auto recovery after temperature goes down to50C Short Circuit Long-term mode, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -30℃~70℃; 20%~90%RH No condensing(refer to the derating curve) Storage Temp. & Hum. -40℃~85℃; 10%~95%RH No condensing SAFETY &EMC (Note 3) Safety Standards UL60950-1 ;EN60950-1:2006 Withstand Voltage Primary-Secondary: 3.0KVac/10mA .Primary-PG:1.5KVac/10mA. Secondary-PG: 0.5KVDC/10mA. Isolation Resistance 10Mohms EMI Conduction & Radiation Compliance to EN55022,FCC PART 15 Class B Harmonic current Compliance to EN61000-3-2,CLASS D EMSImmunity Compliance to EN61000-4-2,3,4,5,6,8,11; OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension (L*W*H) 199×99×50mm Packing 12PCS/CTN, 13.5KGS, 0.04CBM Cooling method Free air convection NOTE 1. All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature. 2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor. 3.The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on https://www.powerld.com
Ø Universal AC input (90~264Vac) Ø Built-in active PFC function, PF>0.96 Ø Using ZVS technology to reduce power dissipation Ø Output protection: OVP/OLP/SCP/OPP/OTP Ø Built in Fan speed control Ø Built in AC inrush current limiting circuit(<20A) Ø Build in constant current limiting circuit Ø Built in Remote Sense Function Ø Build in DC-OK / remote sense signal Ø Wide operating ambient temperature (-30℃~70℃) Ø PCB with conformal coating Ø 1 U low profile,41mm Ø 3 years warranty MODEL PDF-800-24 PDF-800-36 PDF-800-48 OUTPUT DC Output 24V 36V 48V Rated Current 33A 22A 16.5A Ripple and Noise Note 2 ≤200mV ≤200mV ≤200mV Voltage ADJ. Range 21.6~26.4V 32.4~39.6V 43.2~52.8V Voltage Accuracy ±2% Line Regulation ±0.5% Load Regulation ±2% Set-up Time ≤3S (220Vac input, Full load) Hold up Time ≥8mS (220Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT Voltage Range 90Vac~264Vac Frequency Range 47Hz--63Hz Power Factor(Typical) PF≥0.96/230VAC PF≥0.98/115VAC Full Load Efficiency ( Typical) ≥89% ≥89% ≥89% AC Current (max.) ≤12 A Inrush Current (Typical) ≤20A @220Vac Cold start Leakage Current Input—output: ≤0.25mA Input—PG: ≤3.5mA INPUT PROTECTION Low-voltage protection point 75~85Vac, shut down. Low-voltage recovery point 80~90Vac, Auto recovery Over-voltage protection point 280~295Vac, shut down. Over voltage recovery point 275~285Vac, Auto recovery OUTPUT PROTECTION Over Current 36.3~44.55A 24.2~29.7A 18.15~22.3A Protection type: Constant current, auto recovery Over power 871.2~1069.2W 871.2~1069.2W 871.2~1069.2W Protection type: Constant current, auto recovery Over Voltage 27.6~36V 41~45V 55.2~60V Protection type: Constant voltage, auto recovery Over Temperature 105℃+5℃(detect on Mosfet temperature);shut down, auto recovery after the temperature goes down to 75℃ Short Circuit Long-term mode, constant current, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -30℃~70℃; 20%~90%RH No condensing (refer to derating curve) Storage Temp. & Hum. -40℃~85℃; 10%~95%RH No condensing SAFETY &EMC (Note 3) Safety Standards UL60950-1 2nd Ed; IEC 60950-1:2005(2nd Ed) ;EN60950-1:2006 Withstand Voltage Primary-Secondary: 3.0KVac/10mA .Primary-PG:1.5KVac/10mA. Secondary-PG: 0.5KVac/10mA. Isolation Resistance 10M ohms EMI Conduction & Radiation Compliance to EN55022 FCC PART 15 Class B Harmonic Current Compliance to EN61000-3-2,Class D EMS Immunity Compliance to EN61000-4-2,3,4,5,6,8,11; OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension (L*W*H) 226×116.5×41mm Packing 12PCS/CTN, 16.8KGS, 0.04CBM Cooling method Forced air cooling (Built-in fan, the fan speed is controlled by load and internal temp.) DC OK 4-6V (when output voltage is normal) NOTE 1. All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2. Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor. 3. The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on https://www.powerld.com. We are specializes in the research and production of industrial power supply,will go with you all the way.We sincerely invite you to work with us together.

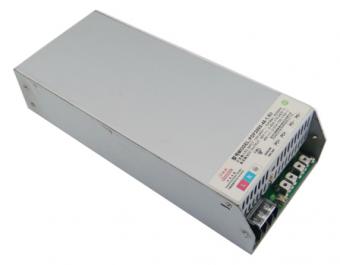

Ø Universal AC input/ Full range(90~264Vac) Ø Built-in active PFC function, PF>0.98 Ø Using ZVS technology to reduce power dissipation Ø Output protection: OVP/OLP/SCP/OPP/OTP Ø Built in Fan speed control Ø Built in AC inrush current limiting circuit(<30A) Ø Build in constant current limiting circuit Ø Built in Remote Sense Function, power good signal Ø N+1 redundancy function Ø Wide operating ambient temperature (-20℃~55℃), full load Ø Altitude up to 5000m Ø All using105℃long life electrolytic capacitors Ø 1.5 U low profile Ø PCB soldering side with conformal coating Ø 3 years warranty MODEL PDF-3000-48-1.5U OUTPUT DC Output 48V Rated Current (90~174Vac) 31.25A Rated Current (175~264Vac) 62.5A Ripple and Noise Note 2 -20~55℃ ≤400mV Voltage ADJ. Range 42~56V Voltage Accuracy ±2% Line Regulation ±0.5% Load Regulation ±2% Set-up Time ≤8S (220Vac input, Full load) Hold up Time ≥5mS (220Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot ≤±2400mV INPUT Voltage Range 90Vac~264Vac Input limit voltage 310Vac for long time, no damage PS Frequency Range 47Hz--63Hz Power Factor(Typical) >0.98/220VAC Full Load Efficiency ( Typical) @ 220Vac ≥91% AC Current (max.) ≤20A Inrush Current (Typical) ≤30A @220Vac Cold start Leakage Current Input—output: ≤0.25mA Input—PG: ≤3.5mA PROTECTION Input Low voltage protection point ≤85 Vac, shut down output Low voltage recovery point ≤88Vac, when input voltage raise up to recovery point, auto recovery, return difference≥5V Over voltage protection point ≥295Vac, shut down output Over voltage recovery point ≥286Vac, when input voltage decline to recovery point, auto recovery, return difference≥5V PROTECTION Output Over Load 66~70A, hiccup mode, auto recovery Over Power 3168~3360W Over Temperature 115℃+5℃(detect on Mosfet temperature);shut down,auto recovery after the temperature goes down to75℃ Over Voltage 58~62V, constant voltage, auto recovery Short Circuit Long-term mode, constant current, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -20℃~55℃; 5%~90%RH No condensing full load Storage Temp. & Hum. -40℃~70℃; 5%~95%RH No condensing SAFETY &EMC (Note 3) Safety Standards Meet IEC60950/UL60950/TUV EN60950-1 Withstand Voltage Primary-Secondary: 4242Vdc/10mA .Primary-PG:2121KVdc/10mA. Secondary-PG: 500KVdc/10mA. Isolation Resistance 10M ohms EMI Conduction & Radiation Compliance to EN55022, CLASS A, FCC PART 15 CLASS A Harmonic Current Compliance to EN61000-3-2,Class D EMS Immunity Compliance to EN61000-4-2,3,4,5,6,8,11; heavy industry level OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension (L*W*H) 295*127*63mm Packing TBD Cooling method Fored air cooling (Built-in fan,the fan speed is controlled by load and internal temp.) NOTE 1.All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2.Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor. 3. The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on https://www.powerld.com. We focus on your industrial power supply project needs, Offering reliable quality and high cost-effective products is always our top priority. Effective Communication within 24 hours.
Ø No Load power consumption<0.5W Ø Universal AC input range Ø High efficiency, long life and high reliability Ø Output protections: OLP/OVP/SCP Ø Wide operating ambient temp (-20℃~70℃) Ø All using105℃long life electrolytic capacitors. Ø 100% full load burn-in test Ø 3 years warranty MODEL PD-15-S3.3 PD-15-S5 PD-15-S12 PD-15-S15 PD-15-S24 OUTPUT DC Output 3.3V 5V 12V 15V 24V Rated Current 4A 3A 1.3A 1A 0.7A Current Range Note 1 0~4A 0~3A 0~1.3A 0~1.0A 0~0.7A Ripple and Noise Note 2 -20~70℃ <50mV <50mV <120mV <120mV <120mV Voltage ADJ. Range -5%~+10% of rated output voltage 4.4~5.5V 10.0~13.0V 13.8~16.1V 20.7~26.7V Voltage Accuracy ±2.0% ±2.0% ±1.0% ±1.0% ±1.0% Line Regulation ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% Load Regulation ±2.0% ±2.0% ±1.0% ±1.0% ±1.0% Set-up Time <2.0S (115Vac input, Full load); <1.0S (230Vac input, Full load) Hold up Time >10mS(115Vac input, Full load); >20mS(230Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT Voltage Range 90Vac~264Vac,124~370Vdc Frequency Range 47Hz~63Hz Efficiency ( Typical) 115Vac input 70% 76% 80% 82% 84% 230Vac input 71% 78% 82% 83% 85% AC Current (max.) 0.7A 0.7A 2.5A 0.7A 0.7A 0.7A Inrush Current (Typical) 20A@115Vac 40A@230Vac Cold start Leakage Current Input—output:<0.25mA Input—PG:<3.5mA PROTECTION Over Load 105%~150% of rated output current, Hiccup mode,auto recovery Over Voltage 105%~150% of rated output voltage, Constant Voltage Shorted Circuit Long-term mode, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -20℃~70℃; 20%~90%RH No condensing Storage Temp. & Hum. -40℃~85℃; 10%~95%RH No condensing SAFETY &EMC Note 3 Safety Standards UL60950-1 ;EN60950-1:2006 Withstand Voltage Primary-Secondary:3.0KVac; ≤10mA .Primary-PG:1.5KVac; ≤10mA. Secondary-PG:0.5KVDC;≤10mA. Isolation Resistance ≥100M ohms EMC Emission Compliance to EN55022 (CISPR22) Class B Harmonic Current Compliance to EN61000-3-2,-3 EMC Immunity Compliance to EN61000-4-2,3,4,5,6,8,11;EN55024,EN61000-6-2heavy industry level OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension (L*W*H) 79×51×28.8mm Packing 48PCS/CTN, 10.4KGS, 0.03CBM Cooling method Cooling by free air convection NOTE 1. All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature. 2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. 4. Powerld offer accessories for Din-35 rail bar. Please contact sales staff for details. Our industrial power supply products enjoy great popularity among customers for our good quality and competitive price.We also welcome OEM and ODM orders.
Ø Universal AC input/ Full range Ø High Efficiency, low power consumption Ø No load power comsumption<=0.5W Ø Output protections: SCP/OVP/ OLP Ø Wide operating ambient temperature (-25℃~70℃) Ø All using 105℃ long life electrolytic capacitors. Ø 100% full load burn-in test Ø 3 years warranty MODEL PS-60-5 PS-60-12 PS-60-15 PS-60-24 PS-60-48 OUTPUT DC Output 5.0V 12.0V 15.0V 24.0V 48.0V Rated Current 8.0A 4.5A 3.6A 2.5 A 1.25A Ripple and Noise Note 2 0~70℃ <50mV <120mV <120mV <120mV <240mV -25℃~0℃ <200mV <300mV <300mV <300mV <360mV Voltage ADJ. Range -5% ~ +10% of rated voltage Voltage Accuracy ±3.0% Line Regulation ±0.5% Load Regulation ±2.0% Set-up Time ≤1.0S (230Vac input, Full load) Hold up Time ≥20mS(230Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT VoltageRange Note 3 90Vac~264Vac, 127Vdc~370Vdc FrequencyRange 47Hz-63Hz Efficiency ( Typical) 115Vac input 78% 83% 84% 87% 85% 230Vac input 82% 85% 85% 87% 88% AC Current (max.) <1.5A Inrush Current (Typical) <30A@120Vac <60A@230Vac Cold start Leakage Current <0.25mA PROTECTION Over Load 105%~180% of rated output current, hiccup mode,auto recovery Over Voltage 110%~150% of rated output voltage, Constant voltage, Shorted Circuit Long-term mode, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -25℃~70℃; 20%~90%RH No condensing (refer to the derating curve) Storage Temp. & Hum. -40℃~85℃; 10%~95%RH No condensing SAFETY &EMC (Note 4) Safety Standards UL60950-1; EN60950-1:2006 Withstand Voltage Primary-Secondary:3.0KVac;≤10mA . Isolation Resistance ≥100M ohms EMI Conduction&Radiation Compliance to EN55022, ClassB Harmonic Current Compliance to EN61000-3-2,-3 EMSImmunity Compliance to EN61000-4-2,3,4,5,6,8,11; heavy industry level OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension (L*W*H) 101.6×50.8×30mm Packing 60PCS/CTN, 12KGS, 0.024CBM Cooling method Cooling by free air convection NOTE 1. All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. We focus on your industrial power supply project needs, Offering reliable quality and high cost-effective products is always our top priority. Effective Communication within 24 hours.

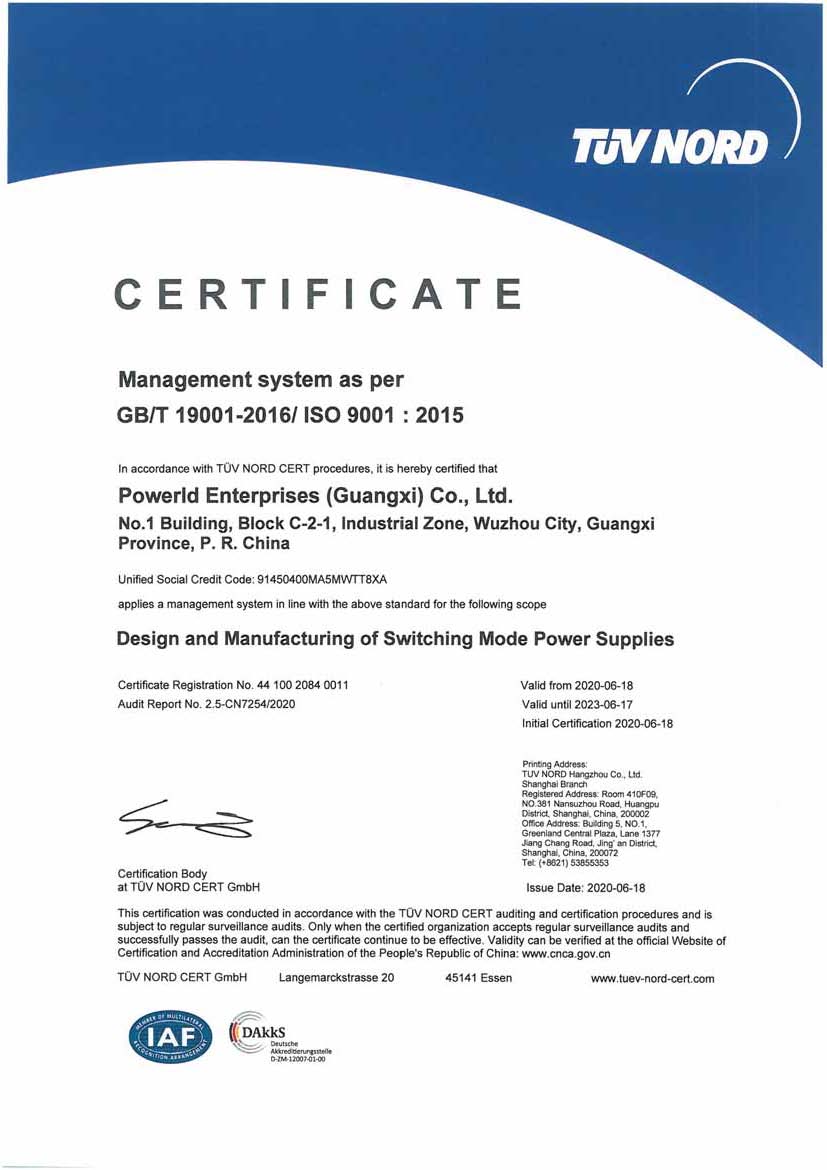

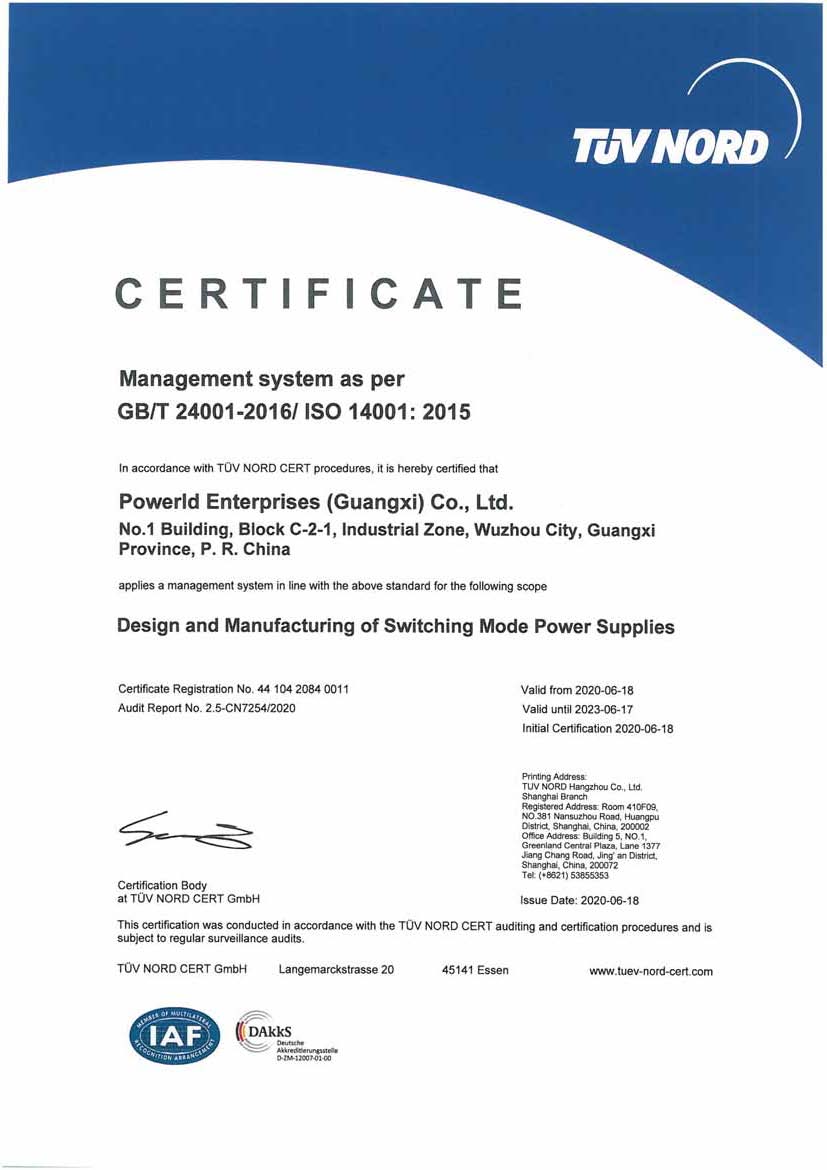

Main Specifications Model Output Voltage Range(V) Output Current Range(A) Ripple(p-p) (Rated Load, Width Limited20MHz) EPS4875-3U 48±0.25V 0—75 200mV Environmental Conditions No. Items Technical Specifications Unit Remarks 1 Operating Temperature -20—+55 ℃ Full load 2 Storage Temperature -40—+70 Powerld enterprises is specialized in switching power supply since 1991, obtained ISO9001 certificate in 2002, ISO14001 certificate in 2006.As a professional switching power supply manufacturer,Powerld can supply a broad range of power supply,we can not only supply our customers with high quality products,but also our best service and fast delivery time.
Ø Universal AC input range(90~264Vac) Ø 300Vac surge for 3 seconds Ø High efficiency, long life and high reliability Ø Output protections: OVP/OLP/SCP Ø Wide operating ambient temp (-25℃~50℃) Ø Can be installed on TS-35/7.5 or 35/15 Ø 100% full load burn-in test Ø PCB with conformal coating Ø Suitable for critical applications Ø Cooling by free air convection Ø 3 years warranty SPECIFICATION MODEL DG-60-S12 DG-60-S24 DG-60-S48 OUTPUT DC Output 12V 24V 48V Rated Current 5A 2.5A 1.25A CurrentRange Note 1 0~5A 0~2.5A 0~1.25A Ripple and Noise Note 2 10~50℃ ≤60mV ≤50mV ≤120mV -25~10℃ ≤120mV ≤100mV ≤240mV Voltage ADJ. Range 12~14V 24~28V 48~56V Voltage Accuracy ±1.0% Line Regulation ±0.5% Load Regulation ±1% Set-up Time <1.5S @230Vac Full load Hold up Time ≥20mS @230Vac Full load Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT VoltageRange 90Vac~264Vac, 127VDC-370VDC(input V+ connect L, input V- connect N) FrequencyRange 47Hz~63Hz Efficiency ( Typical) @ 230Vac 86% 88% 89% AC Current (max.) <1.6A Inrush Current (Typical) 65A/230Vac Cold start 50A/230Vac Cold start 65A/230Vac Cold start Leakage Current Input—output:≤0.25mA Input—PE: ≤3.5mA PROTECTION Over Load 6~7.5A Hiccup mode, auto recovery 3~4A Hiccup mode, auto recovery 1.5~2.5A Hiccup mode, auto recovery Over voltage 15.4~18V Hiccup mode, auto recovery 28.8~31.2V Hiccup mode, auto recovery 58~63V Hiccup mode, auto recovery Short Circuit Long-term mode, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -25℃~50℃; 20%~90%RH No condensing Storage Temp. & Hum. -40℃~85℃; 5%~95%RH No condensing SAFETY &EMC Note 3 Safety Standards UL60950, EN60950 Withstand Voltage Primary-Secondary: 3KVac/10mA; Primary-PE: 1.5KVac/10mA; Secondary-PE: 0.5KVac/10mA Isolation Resistance >10Mohms EMC Emission Compliance to EN55022, EN55024 Class B Harmonic Current Compliance to EN61000-3-2,CLASS A EMC Immunity Compliance to EN61000-4-2,3,4,5,6,11; heavy industry level OTHERS MTBF (MIL-HDBK-217F) 590,000Hrs (25℃, Full load) Dimension (L*W*H) 103.7*32*97.5mm Packing 36pcs/CTN Cooling method Cooling by free air convection NOTE 1. All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature. 2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3.The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on https://www.powerld.com. We have a complete DIN rail power supply product catalog, providing reliable quality DIN rail power supply and affordable prices, fast delivery, customizable, please leave a message for consultation.
Ø No Load power consumption<0.5W Ø Universal AC input range (88~264Vac) Ø Miniature size, high power density, high efficiency, long life and high reliability Ø Withstand 300VA surge input for 5 sec. Ø Output protections: OLP/OVP/SCP Ø Wide operating ambient temp (-25℃~70℃) Ø All using105℃long life electrolytic capacitors. Ø 100% full load burn-in test Ø Easy assembling from top side Ø PCB soldering side with conformal coating Ø Suitable for critical applications Ø 3 years warranty SPECIFICATION MODEL PD-50-5 PD-50-12 PD-50-15 PD-50-24 PD-50-48 OUTPUT DC Output 5V 12V 15V 24V 48V Rated Current 8A 4.2A 3.4A 2.2A 1.12A Current Range 0~8A 0~4.2A 0~3.4A 0~2.2A 0~1.12A Ripple and Noise Note 2 0~70℃ <80mV <120mV <120mV <200mV <200 mV -25-0℃ <80mV <200mV <200mV <300mV <500mV Voltage ADJ. Range 4.75~5.5V 11.4~13.2V 14.25~15V 22.8~26.4V 45.6~52.8V Voltage Accuracy ±3.0% Line Regulation ±0.5% Load Regulation ±1.0% Set-up Time <1.5S (230Vac input, Full load) Hold up Time >50mS(230Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT Voltage Range 88Vac~264Vac,127~370Vdc Frequency Range 47Hz~63Hz Efficiency ( Typical) 115Vacinput 79% 82.5% 83.5% 85% 86.5% 230Vacinput 80% 84.5% 85.5% 87% 88.5% AC Current (max.) <1.3A Inrush Current (Typical) <45A@230Vac Cold start Leakage Current Input—output:<0.25mA Input—PG:<3.5mA (input 264Vac, 63Hz) PROTECTION Over Load 8.4~12A 4.41~6.3A 3.57~5.1A 2.31~3.3A 1.155~1.65A Protection type: 5V is hiccup mode, rest are constant power, auto recovery Over Voltage 5.75~7.5V 13.8~18V 17.25~22.5V 27.6~36V 55.2~72V Protection type: constant voltage, auto recovery Short Circuit Long-term mode, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -25℃~70℃; 20%~90%RH No condensing (refer to the derating curve) Storage Temp. & Hum. -40℃~85℃; 10%~95%RH No condensing SAFETY &EMC Note 3 Safety Standards UL60950-1 2nd Ed; IEC 60950-1:2005(2nd Ed) ;EN60950-1:2006 Withstand Voltage Primary-Secondary: 3.0KVac/10mA .Primary-PG:1.5KVac/10mA. Secondary-PG: 0.5KVDC/10mA. Isolation Resistance 100M ohms EMC Emission Compliance to EN55022 Class B / FCC Part15 Class B EMC Immunity Compliance to EN61000-4-2,3,4,5,6,8,11; heavy industry level OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension (L*W*H) 99×82×35mm Packing 40PCS/CTN, 12.8KGS, 0.043CBM Cooling method Cooling by free air convection NOTE 1. All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature. 2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3. The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on http://www.powerld.com. In order to adapt to the needs of the market and users, our industrial power supply products are constantly iterative,please feel free to contact us for more details.

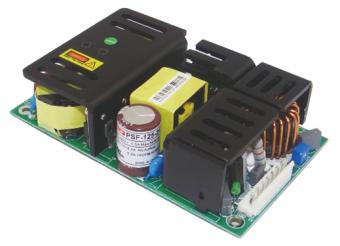

Ø Universal AC input/ Full range Ø High power density,High effiency and reliability Ø Output protections: OLP/OVP/SCP Ø Wide operating ambient temperature (-20℃~70℃) Ø Build-in remote sense function Ø All using 105℃ long life electrolytic capacitors. Ø 100% full load burn-in test Ø 3 years warranty MODEL PSF-125-5 GZM-H25S8.5 PSF-125-12 GZM-H25S12II PSF-125-15 PSF-125-24 PSF-125-36 PSF-125-48 OUTPUT DC Output 5V 8.5V 12V 12V 15V 24V 36V 48V Rated Current 20A 3A 10.5A 2 A 8.4A 5.2A 3.5A 2.6A CurrentRange Note 1 0~20A 0~3A 0~10.5A 0~2A 0~8.4A 0~5.2A 0~3.5A 0~2.6A Ripple and Noise Note 2 100mV 85mV 100mV 120mV 100mV 100 mV 120 mV 150 mV Voltage ADJ. Range ±10% of rated output voltage Voltage Accuracy ±2.0% ±3.0% ±2.0% ±5.0% ±2.0% ±2.0% ±2.0% ±2.0% Line Regulation ±0.5% ±0.5% ±0.5% ±1.0% ±0.5% ±0.5% ±0.5% ±0.5% Load Regulation ±2.0% ±2.0% ±2.0% ±1.0% ±2.0% ±2.0% ±2.0% ±2.0% Set-up Time <=1200mS (230Vac input, Full load) <=2500mS (115Vac input, Full load) Hold up Time >=17mS(115/230Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshootand Undershoot <5.0% INPUT VoltageRange 90Vac~264Vac,127Vdc~370Vdc FrequencyRange 47Hz--63Hz Power Factor(Typical) PF>0.98/115VAC PF>0.93/230VAC Efficiency ( Typical) 82%/115Vac 85%/115Vac 85%/115Vac 85%/20Vac 86%/115Vacin 86%/115Vac 84%/230Vac 87%/230Vac 87%/230Vac 87%/230Vac 88%/230Vac 88%/230Vac AC Current (max.) 1.5A 0.5A 2.5A 1.5A 0.3A 1.5A 1.5A 1.5A 1.5A Inrush Current (Typical) 60A@230Vac 30A@115Vac Cold start Leakage Current <3.5mA PROTECTION Over Current 105%~150% of rated output current, hiccup mode, auto recovery Over Voltage 120%~150% of rated output voltage,hiccup mode Short Circuit Auto recovery ENVIRONMENT OperatingambTemp& Hum -20℃~70℃; 20%~90%RH No condensing Storage Temp. & Hum. -40℃~85℃; 10%~95%RH No condensing SAFETY &EMC Note 3 Safety Standards GB4943-2011; EN60950-1:2006 Withstand Voltage Primary-Secondary:3.0KVac;≤10mA .Primary-PG:1.5KVac;≤10mA .Secondary-PG:0.5KVDC;≤10mA . Isolation Resistance 100M ohms EMI Conduction&Radiation Compliance to EN55022(CISPR22)ClassB Harmonic Current Compliance to EN61000-3-2,-3 EMSImmunity Compliance to EN61000-4-2,3,4,5,6,8,11;ENV50204,light industry level,criteriaA OTHERS MTBF (MIL-HDBK-217F) More than 100,000Hrs (25℃, Full load) Dimension (L*W*H) 127×76×30.5mm Packing 21PCS/CTN, 8.46KGS, 0.015CBM Cooling method Cooling by free air convection NOTE 1.All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2.Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3.The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on http://www.powerld.com Focus on the development of Industrial power supply for many years,make efforts to meet customers' requirements and search for long-term cooperation.24 hours online service affiliates you to contact us.
Ø Universal AC input range(85~264Vac) Ø Support 1+1 or N+1 redundant system(suggest to use redundancy modules.) Ø Built-in active PFC,PF>0.95 Ø High efficiency up to 92% Ø Built-in current sharing function Ø Built-in current limiting circuit Ø Output protections: OVP/OLP/SCP/OTP Ø Wide operating ambient temp (-25℃~70℃) Ø 150%(180W) peak load capacity Ø Easy Fuse Tripping due to High Overload Current Ø Excellent Partial Load Efficiency Ø Built-in DC OK relay contact Ø Can be installed on TS-35/7.5 or TS-35/15 Ø 100% full load burn-in test Ø Suitable for critical applications Ø Ultra-slim,32mm width Ø 3 years warranty SPECIFICATION MODEL DG-120-12 DG-120-24 DG-120-48 OUTPUT DC Output 12V 24V 48V Rated Current 10A(pls refer to derating curve) 5A 2.5A CurrentRange Note 0~10A 0~5A 0~2.5 Ripple and Noise Note 2 0~70℃ ≤100mV ≤120mV ≤240mV -25℃ ≤200mV ≤240mV ≤240mV Voltage ADJ. Range 12~14V 24~28V 48~56V Voltage Accuracy ±1.0% Line Regulation ±0.5% Load Regulation ±1.0% Set-up Time <250mS@230Vac ; <500mS@100Vac Hold up Time ≥20mS(230Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT VoltageRange 85Vac~264Vac, 127Vdc-360Vdc FrequencyRange 47Hz~63Hz Power Factor (typical) 0.99/100Vac 0.95/230Vac Efficiency ( Typical) 89.5% 91% 92% AC Current (max.) <1.5 A/100Vac <0.65A/230Vac Inrush Current (Typical) <30A/100Vac <60A/230Vac Cold start Leakage Current Input—output:<0.25mA Input—PG:<3.5mA PROTECTION Over Load 110%~150% of rated current, Constant current limiting for some time(150% of rated current, last 3S) then PS stop working for 7S,after 7S,if the load <=rated current, PS will work normally, auto recovery Over voltage 15~18V 29~33V 58~65V Protection type: Hiccup mode, Auto recovery Over temperature 100±5℃, detect on heat sink of power transistor; shut down O/P, auto recovery after temperature goes down. Short Circuit Long-term mode, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -25℃~70℃; 20%~90%RH No condensing Storage Temp. & Hum. -40℃~85℃; 5%~95%RH No condensing SAFETY &EMC Note 3 Safety Standards meet UL508, UL60950, EN60950 Withstand Voltage Primary-Secondary:3.0KVac;≤10mA .Primary-PG:2.5KVac;≤10mA. Secondary-PG:0.5KVac≤10mA. Isolation Resistance 10M ohms EMC Emission Compliance to EN55022, EN55024, FCC PART 15 Class B Harmonic Current Compliance to EN61000-3-2, CLASS A EMC Immunity Compliance to EN61000-4-2,3,4,5,6,8,11; heavy industry level OTHERS MTBF (MIL-HDBK-217F) More than 300,000Hrs (25℃, Full load) Dimension (L*W*H) 124*119*32mm Packing 28pcs/CTN,18.02Kgs, 0.04cbm Cooling method Cooling by free air convection Additional function Power boost 150% of rated current DC OK V On: when output voltage is up to 90% of rated output voltage V Off: when output voltage is down to 80% of rated output voltage DC OK relay contact rating Max 30V/1Aor 60V/0.3Aor 30Vac/0.3AResistive load Parallel function support NOTE 1. All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature. 2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3.The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on https://www.powerld.com. We have a complete DIN rail power supply product catalog, providing reliable quality DIN rail power supply and affordable prices, fast delivery, customizable, please leave a message for consultation.
