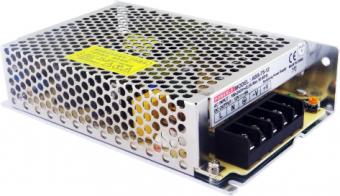

ABS-75-X
Ø No Load power consumption<0.5W Ø Universal AC input range(90~264Vac) Ø High efficiency, long life and high reliability Ø Withstand 300Vac surge input for 5 sec. Ø Output protections: OVP/OLP/SCP Ø Wide operating ambient temp (-25℃~70℃) Ø Altitude up to5000m Ø All using105℃long life electrolytic capacitors. Ø 100% full load burn-in test Ø Suitable for critical applications Ø 2 years warranty MODEL ABS-75-5 ABS-75-12 ABS-75-24 ABS-75-48 OUTPUT DC Output 5V 12V 24V 48 Rated Current 12A 6A 3.2A 1.62A Current Range Note 1 0~12A 0~6A 0~3.2A 0~1.62A Ripple and Noise Note 2 0~70℃ <50mV <80mV <80mV <120mV -20℃ <150mV <200mV <200mV <240mV Voltage ADJ. Range 4.75V-5.5V 10.8V-13.2V 21.6V-26.4V 43.2~52.8V Voltage Accuracy ±1.0% Line Regulation ±0.5% Load Regulation ±1.0% Set-up Time ≤1S /230Vac input, Full load) Hold up Time ≥10mS(120Vac input, Full load) ; ≥20mS(230Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT Voltage Range 90Vac~264Vac Frequency Range 47Hz~63Hz Efficiency ( Typical) ≥79% ≥84% ≥86.5% ≥88% AC Current (max.) <2.5 A 2.5A Inrush Current (Typical) ﹤60A@264Vac Cold start Leakage Current Input—output:<0.25mA Input—PG:<3.5mA PROTECTION Over Load 12.6~18A 6.3~9A 3.36~4.8A 1.701~2.43A Protection type: Constant power, Auto recovery Over voltage 5.5~7.0V 13.2~15.6V 26.4~32.4V 52.8~62.4V Protection type: Constant voltage, Auto recovery Shorted Circuit Long-term mode, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -25℃~70℃; 20%~90%RH No condensing Storage Temp. & Hum. -40℃~85℃; 10%~95%RH No condensing SAFETY &EMC Note 3 Safety Standards UL60950-1 2nd Ed; IEC 60950-1:2005(2nd Ed) ;EN60950-1:2006 Withstand Voltage Primary-Secondary:3.0KVac; ≤10mA .Primary-PG:1.5KVac; ≤10mA. Secondary-PG:0.5KVDC;≤10mA. Isolation Resistance ≥100M ohms EMC Emission Compliance to EN55022 Class B Harmonic Current Compliance to EN61000-3-2 EMC Immunity Compliance to EN61000-4-2,3,4,5,6,8,11;heavy industry level OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension (L*W*H) 160×98.3×38mm Packing 20pcs/CTN, 13.6Kgs/CTN, 0.04cbm Cooling method Cooling by free air convection NOTE 1. All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature. 2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3. The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on https://www.powerld.com. We are professional manufacturer engaged in the research, development, production, sale and service of Industrial power supply,We sincerely look forward to cooperating with you and creating the future together!
