  • PDF-1500-X power supply
    PDF-1500-X
    Ø  High AC input (180~264Vac) Ø  High efficiency, long life and high reliability Ø  Built-in active PFC function, PF≥0.95 Ø  Output protection: OVP/OLP/SCP/OTP/Input low-voltage protection/Fan failure protection Ø  Build in DC OK signal Ø  Wide operating ambient temperature (-20℃~70℃) Ø  Altitude up to5000m Ø  100% burn-in test      Ø  3 years warranty MODEL PDF-1500-12 PDF-1500-24 OUTPUT DC Output 12V 24V Rated Current 125A 62.5A Current range 0~125A 0~62.5A Ripple and Noise Note 2 0~70C ≤150mV ≤240mV -20C ≤240mV ≤480mV Voltage ADJ.  Range 10.8~13.2V 21.6~26.4V Voltage Accuracy ±1% Line Regulation ±0.5% Load Regulation ±1% Set-up Time ≤1.5S (220Vac input, Full load) Hold up Time ≥10mS (220Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT Voltage Range   180Vac~264Vac Frequency Range 47Hz--63Hz Power Factor(Typical) PF≥0.95/200VAC       Full Load Efficiency ( Typical) ≥89% ≥90% AC Current (max.) <15 A/220Vac Inrush Current (Typical) <20A@220Vac       Cold start No load power dissipation <60W Leakage Current Input—output: ≤0.25mA     Input—PG: ≤3.5mA  (input 264Vac,63Hz) PROTECTION Input Low-voltage protect point 130~165Vac Recovery point 150~175Vac Output Over Load 135~160A 85A~100A Protection type: shut down, turn off and re-power on Low-voltage 12V: When output voltage≤4.5V, shut down, turn off and re-power on 24V: When output voltage≤10V, shut down, turn off and re-power on Over Voltage Only 12V: 13.6~15.6V, shut down, auto recovery Over Temperature 85~95℃(detect on PFC’s MOS);shut down, auto recovery after the temperature goes down to50℃ Short Circuit Long-term mode, constant current, auto recovery Fan failure detection When any fan failed, shut down, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -20℃~70℃;  20%~90%RH  No condensing  (refer to derating curve) Storage Temp. & Hum. -20℃~80℃;  10%~95%RH  No condensing SAFETY &EMC    (Note 3) Safety Standards EN60950 Withstand Voltage Primary-Secondary:3.0KVac; ≤10mA .Primary-PG:1.5KVac; ≤10mA. Secondary-PG:0.5KVdc;≤10mA. Isolation Resistance 10M ohms EMI Conduction &Radiation Compliance to EN55022, EN55024, FCC PART 15 CLASS A  Class A Harmonic Current Compliance to EN61000-3-2,Class D EMS Immunity Compliance to EN61000-4-2,3,4,5,6,8,11; OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension  (L*W*H) 278×177.8×63mm DC OK signal 12V:When output voltage≤4.5V, shut down, TTL≤0.4V; when output voltage≥4.5V,working, TTL is 2.5~5.25V 24V: When output voltage≤10V, shut down, TTL≤0.4V; when output voltage≥10V,working, TTL is 2.5~5.25V Packing 2PCS/CTN, 7.0Kgs, 0.04CBM Cooling method Fored air cooling   NOTE 1.All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2.Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor. 3.The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on https://www.powerld.com. We are Industrial power supply manufacturer with competitive price and good quality,which are widely recognized and trusted by users and can meet social needs.

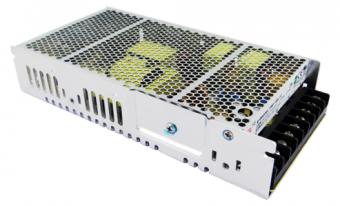

  • PS-60-X power supply
    PS-60-X
    Ø  Universal AC input/ Full range Ø  High Efficiency, low power consumption Ø  No load power comsumption<=0.5W Ø  Output protections: SCP/OVP/ OLP Ø  Wide operating ambient temperature (-25℃~70℃) Ø  All using 105℃ long life electrolytic capacitors. Ø  100% full load burn-in test Ø 3 years warranty  MODEL PS-60-5 PS-60-12 PS-60-15 PS-60-24 PS-60-48 OUTPUT DC Output 5.0V 12.0V 15.0V 24.0V 48.0V Rated Current 8.0A 4.5A 3.6A 2.5 A 1.25A Ripple and Noise  Note 2 0~70℃ <50mV <120mV <120mV <120mV <240mV -25℃~0℃ <200mV <300mV <300mV <300mV <360mV Voltage ADJ. Range -5% ~ +10% of rated voltage Voltage Accuracy ±3.0% Line Regulation ±0.5% Load Regulation ±2.0% Set-up Time ≤1.0S (230Vac input, Full load) Hold up Time ≥20mS(230Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT VoltageRange  Note 3 90Vac~264Vac, 127Vdc~370Vdc FrequencyRange 47Hz-63Hz Efficiency ( Typical) 115Vac input 78% 83% 84% 87% 85% 230Vac input 82% 85% 85% 87% 88% AC Current (max.) <1.5A Inrush Current (Typical) <30A@120Vac   <60A@230Vac     Cold start Leakage Current <0.25mA PROTECTION Over Load 105%~180% of rated output current, hiccup mode,auto recovery Over Voltage 110%~150% of rated output voltage, Constant voltage, Shorted Circuit Long-term mode, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -25℃~70℃; 20%~90%RH No condensing (refer to the derating curve) Storage Temp. & Hum. -40℃~85℃; 10%~95%RH No condensing SAFETY &EMC   (Note 4) Safety Standards UL60950-1; EN60950-1:2006 Withstand Voltage Primary-Secondary:3.0KVac;≤10mA . Isolation Resistance ≥100M ohms EMI Conduction&Radiation Compliance to EN55022, ClassB Harmonic Current Compliance to EN61000-3-2,-3 EMSImmunity Compliance to EN61000-4-2,3,4,5,6,8,11; heavy industry level OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension (L*W*H) 101.6×50.8×30mm Packing 60PCS/CTN, 12KGS, 0.024CBM Cooling method Cooling by free air convection NOTE 1.    All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2.    Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives.   We focus on your industrial power supply project needs, Offering reliable quality and high cost-effective products is always our top priority. Effective Communication within 24 hours.
  • PWF-150L-X Power Supply
    PWF-150L-X
    Ø  Universal AC input range(85~264Vac) Ø  Built-in Active PFC function, PF>0.95 Ø  Miniature size, high power density, high efficiency, long life and high reliability Ø  Output protections: OLP/SCP/OPP Ø  Wide operating ambient temp (-20℃~65℃) Ø  Operating altitude up to5000M Ø  100% full load burn-in test Ø  Easy assembling from top side Ø  PCB soldering side with conformal coating Ø  Suitable for critical applications Ø  3 years warranty       SPECIFICATION                                              MODEL PWF-150L-12 PWF-150L-24 PWF-150L-27.6 PWF-100L-48 OUTPUT DC Output 12V 24V 27.6V 48V Rated Current 12.5A 6.3A 5.4A 3.2A CurrentRange    Note 1 0~12.5A 0~6.3A 0~5.4A 0~3.2A Ripple and Noise  Note 2 0~65℃ ≤100mV ≤150mV ≤240mV ≤240mV -20~0℃ ≤200mV ≤300mV ≤480mV ≤480mV Voltage ADJ. Range ±10% of rated output voltage Voltage Accuracy ±1.0% ±1.0% ±1.0% ±1.0% Line Regulation ±0.5% ±0.5% ±0.5% ±0.5% Load Regulation ±1.0% ±0.5% ±1.0% ±0.5% Set-up Time ≤2S (230VAC input, Full load) ; ≤4S (115VAC input, Full load) Hold up Time ≥15mS(115 / 230VAC , FULL LOAD) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT VoltageRange   85Vac~264Vac FrequencyRange 47Hz~63Hz Power factor (typical) PF>0.98/115VAC  PF>0.95/230VAC    full load Efficiency (Typical)230Vac input ≥86% ≥86% ≥86% ≥87% Efficiency (Typical)120Vac input ≥83% ≥83% ≥83% ≥84% AC Current (max.) 1.7A/115Vac 0.8A/230Vac Inrush Current (Typical) <50A@230VAC Cold start & <30A@115VAC    Cold start Leakage Current Input—output: ≤0.25mA   Input—PG: ≤3.5mA PROTECTION Over Load 105%~150% of rated output current, hiccup mode, auto recovery Over power 105%~150% of rated output current, hiccup mode, auto recovery Short Circuit Long-term mode, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -20℃~65℃; 20%~90%RH No condensing (refer to the derating curve) Storage Temp. & Hum. -20℃~85℃; 10%~95%RH No condensing SAFETY &EMC Note 3 Safety Standards UL60950-1 2ndEd; IEC 60950-1:2005(2ndEd) ;EN60950-1:2006 Withstand Voltage Primary-Secondary:3.0KVac;≤10mA .Primary-PG:1.5KVac;≤10mA. Secondary-PG:0.5KVDC;≤10mA. Isolation Resistance 100Mohms EMSEmission Compliance to EN55022, EN55024, FCC PART 15 CLASS B Harmonic Current Compliance to EN61000-3-2, Class D EMC Immunity Compliance to EN61000-4-2,3,4,5,6,8,11; heavy industry level OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension (L*W*H) 199×99×38mm Packing 20PCS/CTN, 15KGS, 0.04CBM Cooling method Cooling by free air convection NOTE 1. All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature. 2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3. The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on https://www.powerld.com Powerld enterprises is specialized in switching power supply since 1991, obtained ISO9001 certificate in 2002, ISO14001 certificate in 2006.As a professional switching power supply manufacturer,Powerld can supply a broad range of power supply,we can not only supply our customers with high quality products,but also our best service and fast delivery time.
