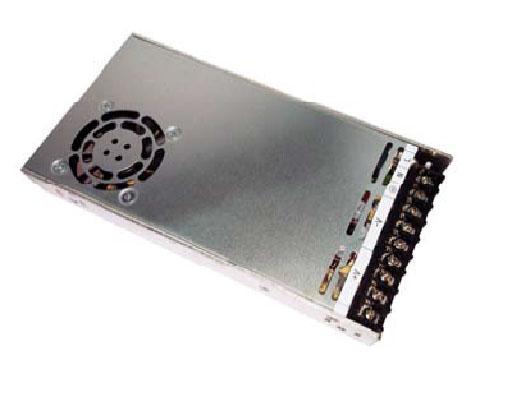

LPD-350-X

  • Brand:

    POWERLD
  • Item NO.:

    LPD-350-X
  • Wattage (W):

    350
  • Input:

    90~132Vac, 180~264Vac
  • Output:

    12, 24
  • PFC:

    N
  • Conformal Coating:

    Y
  • Approval:

    UL, CB, CE, UKCA soon
  • Dimension:

    190*99*30mm
  • Product Detail

Ø  AC input selectable by switch (115Vac/230Vac)

Ø  High efficiency, long life and high reliability

Ø  Output protections: OLP/OVP/SCP

Ø  Wide operating ambient temp (-25℃~70℃)

Ø  Altitude up to 5000m

Ø  All using105℃long life electrolytic capacitors.

Ø  100% full load burn-in test

Ø  3 years warranty

SPECIFICATION

MODEL

LPD-350-12

LPD-350-24

OUTPUT

DC Output

12V

24V

Rated Current

29.17A

14.58A

Current Range

0~29.17A

0~14.58A

Ripple and Noise

Note 2

0~70

≤150mV

≤150mV

-25℃

≤300mV

≤300mV

Voltage ADJ. Range

10.2~13.8V

21.6~28.8V

Voltage Accuracy

±1.5%

±1.0%

Line Regulation

±0.5%

Load Regulation

±1.0%

±0.5%

Set-up Time

≤2.3S Full load

Hold up Time

≥12mS/115Vac input, Full load; ≥16mS/230Vac input, Full load

Temperature Coefficient

±0.03%/℃

Overshoot

<5.0%

INPUT

VoltageRange

90Vac~132Vac/180Vac~264Vac

FrequencyRange

47Hz~63Hz

Efficiency @230Vac input

≥85%

≥87%

AC Current (max.)

<6.8A/115Vac ; <3.4A/230Vac

2.5A

Inrush Current

﹤60A@ 115Vac/230Vac  Cold start

Leakage Current

Input—output:<0.25mA    Input—PG:<2.0mA (Input 240Vac)

PROTECTION

Over Load

30.63~43.75A

15.31~21.88A

Protection type: Hiccup mode, auto recovery

Over Power

367.5~525W

367.5~525W

Protection type: Hiccup mode, auto recovery

Over voltage

13.8~16.2V

28.8~33.6V

Protection type: Constant voltage, auto recovery

Shorted Circuit

Long-term mode, auto recovery

ENVIRONMENT

Operating amb. Temp. & Hum.

-25℃~70℃; 20%~90%RH No condensing

Storage Temp. & Hum.

-40℃~85℃; 10%~95%RH No condensing

SAFETY &EMC

Note 3

Safety Standards

GB4943 / EN60950

Withstand Voltage

Primary-Secondary:3.0KVac/10mA .Primary-PG:2.0KVac/10mA. Secondary-PG:0.5KVDC/10mA.

Isolation Resistance

10M ohms

EMC Immunity

Compliance to EN61000-4-2,3,4,5,6,8,11;

OTHERS

MTBF (MIL-HDBK-217F)

More than 200,000Hrs (25℃, Full load)

Dimension (L*W*H)

190*99*30mm

Packing

TBD

Cooling method

Cooling by forced air (Built-in DC fan)

NOTE

1. All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature.

2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor.

3. The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on https://www.powerld.com
