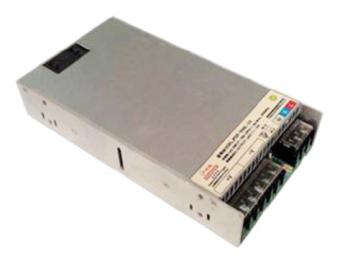

PDF-500-X


  • Brand:

    POWERLD
  • Item NO.:

    PDF-500-X
  • Wattage (W):

    500
  • Input:

    90-264Vac
  • Output:

    12, 15, 24, 27.5, 48
  • PFC:

    Y
  • Conformal Coating:

    Y
  • Approval:

    N
  • Dimension:

    170×120×83.5mm
  • Product Detail

Ø  Universal AC input/ Full range

Ø  Built-in active PFC function,PF>0.95

Ø  Withstand 300VA surge input for 3 secs.

Ø  Built-in cooling Fan ON-OFF control

Ø  Output protections: OLP/OVP/OTP/SCP

Ø  All using105℃long life electrolytic capacitors.

Ø  Build-in remote sense function

Ø  Build-in remote ON-OFF control

      Ø 3 years warranty

MODEL

PDF-500-12

PDF-500-15

PDF-500-24

PDF-500-27.5

PDF-500-48

OUTPUT

DC Output

12V

15V

24V

27.5V

48V

Rated Current

41.7A

33.3A

21A

18.2A

10.5A

Current Range     Note 1

0~41.7A

0~33.3A

0~21A

0~18.2A

0~10.5A

Ripple and Noise   Note 2

0~70

<150mV

<150mV

<200mV

<200mV

<240mV

-20~0

<240mV

<240mV

<400mV

<400mV

<480mV

Voltage ADJ.  Range

11.6V-13.2V

14.5~16.5V

23.5V-27.2V

26.0V-30.0V

46V-54V

Voltage Accuracy

±2.0%

±2.0%

±2.0%

±2.0%

±2.0%

Line Regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load Regulation

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

Set-up Time

2.0S (115Vac input, Full load); 2.0S (230Vac input, Full load)

Hold up Time

10mS(230Vac input, Full load)

Temperature Coefficient

±0.03%/

Overshoot and Undershoot

<5.0%

INPUT

Voltage Range

88Vac~264Vac

Frequency Range

47Hz~63Hz

Power Factor(Typical)

PF0.98/115VAC    PF0.95/230VAC

Efficiency ( Typical)

115Vacinput

85%

86%

87%

88%

89%

230Vacinput

88%

89%

90%

91%

92%

AC Current (max.)

5.5A

2.5A

Inrush Current (Typical)

<20A@115Vac    <40A@230Vac      Cold start

Leakage Current

Input—output:<0.25mA     Input—PG:<3.5mA

PROTECTION

Over Load

110%~150% of rated output current, constant current limiting for 3S,then hiccup mode, auto recovery

Over Voltage

115%~150% of rated output voltage,constant voltage

Over Temperature

95+10(detect on heatsink of power transistor);shut down,auto recover after the temperature goes down

Fan ON/OFF Control

Output load>65% rating or inside temperature >55, FAN ON

ENVIRONMENT

Operating amb. Temp. & Hum.

-20~70;  20%~90%RH  No condensing(refer to the derating curve)

Storage Temp. & Hum.

-25~85;  10%~95%RH  No condensing

SAFETY&EMC Note 3

Safety Standards

UL60950-1; EN60950-12006

Withstand Voltage

Primary-Secondary:3.0KVac; 10mA .Primary-PG:1.5KVac; 10mA. Secondary-PG:0.5KVDC;10mA.

Isolation Resistance

100M ohms

EMI Conduction& Radiation

Compliance to EN55022, EN55024, FCC PART 15   CLASS B

Harmonic Current

Compliance to EN61000-3-2CLASS D

EMS Immunity

Compliance to EN61000-4-2,3,4,5,6,8,11;heavy industry level

OTHERS

MTBF (MIL-HDBK-217F)

More than 200,000Hrs (25, Full load)

Dimension  (L*W*H)

170×120×83.5mm

Packing

6PCS/CTN, 12KGS, 0.04CBM

Cooling method

Cooling by forced air (built-in DC fan)

NOTE

1.All parameters NOT specially mentioned are measured at rated input, rated load and 25of ambient temperature.

2.Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor.

3.The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives.
