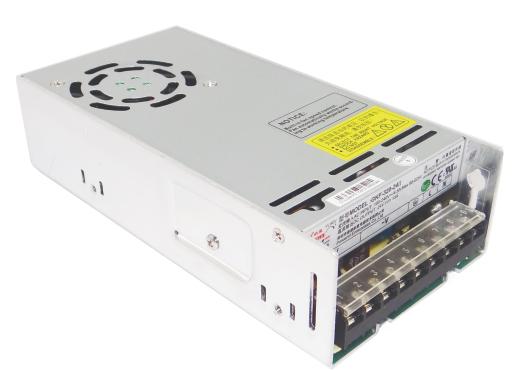

GKF-200-X






  • Brand:

    POWERLD
  • Item NO.:

    GKF-200-X
  • Wattage (W):

    200
  • Input:

    88-264Vac
  • Output:

    12, 15, 24, 48
  • PFC:

    Y
  • Conformal Coating:

    Y
  • Approval:

    UL/CE/CB
  • Dimension:

    199x99x50mm
  • Product Detail

Ø  Universal AC input (90~264Vac)

Ø  Built-in active PFC,PF>0.95

Ø  Withstand 300Vac surge input for 5 sec

Ø  High efficiency, long life and high reliability

Ø  Output protection: SCP/OLP/OPP

Ø  Wide operating ambient temperature (-20~65℃)

Ø  Operating altitude up to5000m

Ø  PCB both sides with conformal coating

Ø  All using105℃long life electrolytic capacitor

Ø  100% full load burn-in test

Ø  Built-in cooling fan speed control

Ø  3 years warranty


SPECIFICATION

MODEL

GKF-200-12II

GKF-200-24II

GKF-200-36II

GKF-200-48II

OUTPUT

DC Output

12V

24V

36V

48V

Rated Current

16.7A

8.4A

5.6A

4.2A

CurrentRange    Note 1

0~16.7A

0~8.4A

0~5.6A

0~4.2A

Ripple and Noise  Note 2

0~65C

≤150mV

≤150mV

≤200mV


≤150mV

-20~0C

≤200mV


≤200mV


≤200mV


≤200mV


Voltage ADJ. Range

9~15V

20~27V

32~40V

40~53V



Voltage Accuracy

±2.0%

±1.0%



Line Regulation

±0.5%



Load Regulation

±2.0%

±1.0%



Set-up Time

≤2S (230Vac input, Full load)   ≤4S (120Vac input, Full load)



Hold up Time

≥12mS (230Vac input, Full load)



Temperature Coefficient

±0.03%/℃



Overshoot and Undershoot

<5.0%



INPUT

VoltageRange

90Vac~264Vac,120Vdc~370Vdc



FrequencyRange

47Hz--63Hz



Power Factor(Typical)

PF>0.98/115VAC   PF>0.95/230VAC



Efficiency ( Typical) @ 230Vac

≥84%

≥87%

≥86.5%

≥87%

AC Current (max.)

<3.5A



Inrush Current (Typical)

<50A@220Vac  <30A@110Vac  Cold start



Leakage Current

Input—output:<0.25mA    Input—PG:<3.5mA



PROTECTION

Over Load

18~30A

10~15A

5.88~8.8A

5~7.56A



Protection type: Hiccup mode, auto recovery



Over power

216~360W

240~360W

210~320W

240~363W



Protection type: Hiccup mode, auto recovery



Short Circuit

Long-term mode, auto recovery



ENVIRONMENT

Operating amb. Temp. & Hum.

-20℃~65℃; 20%~90%RH No condensing(refer to the derating curve)



Vibration

10 ~ 150Hz,2G10min./1cycle, period for60min. each along X,Y, Z axes



Storage Temp. & Hum.

-40℃~85℃; 10%~95%RH No condensing



SAFETY &EMC

(Note 3)

Safety Standards

UL 62368-1 2nd Ed; IEC 62368-1:2005 ;EN 62368-1



Withstand Voltage

Primary-Secondary: 3.0KVac; ≤10mA .Primary-PG: 1.5KVac; ≤10mA. Secondary-PG: 0.5KVDC; ≤10mA.



Isolation Resistance

10Mohms



EMI Conduction&Radiation

Compliance to EN55032, EN55035, FCC PART 15  Class B




EMSImmunity

Compliance to EN61000-4-2,3,4,5,6,8,11;



OTHERS

MTBF (MIL-HDBK-217F)

More than 200,000Hrs (25℃, Full load)



Dimension (L*W*H)

199×99×50mm



Packing

12PCS/CTN, 11.4KGS, 0.04CBM



Cooling method

Cooling by forced air (built-in DC fan)



NOTE

1. All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature.

2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor.

3.The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on https://www.powerld.com
