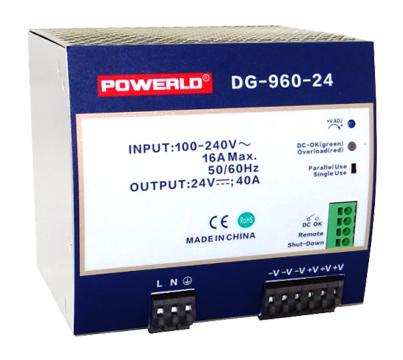

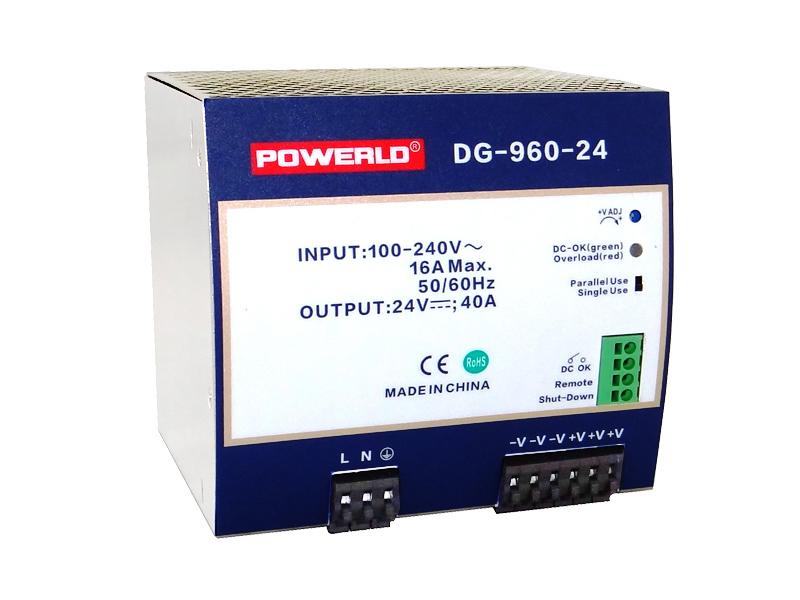

DG-960-X

  • Brand:

    POWERLD
  • Item NO.:

    DG-960-X
  • Wattage (W):

    960
  • Input:

    85Vac~264Vac, 220Vdc-370Vdc
  • Output:

    24, 48
  • PFC:

    Y
  • Conformal Coating:

    Y
  • Approval:

    N
  • Dimension:

    140*124.6*138.2mm
  • Product Detail

Ø  Universal AC input range(85~264Vac)

Ø  Support 1+1 or N+1 redundant system(suggest to use redundancy modules.)

Ø  Built-in active PFC,PF≥0.98

Ø  High efficiency up to 94.5%

Ø  Built-in current sharing function

Ø  Built-in current limiting circuit

Ø  Output protections: OVP/OLP/SCP/OTP

Ø  Wide operating ambient temp (-25℃~70℃)

Ø  Altitude up to 6000m

Ø  150% peak load capacity

Ø  Easy Fuse Tripping due to High Overload Current

Ø  Built-in DC OK relay contact

Ø  Remote control output voltage

Ø  Internal fault diagnose through LED light

Ø  Can be installed on TS-35/7.5 or TS-35/15

Ø  100% full load burn-in test

Ø  PCB soldering side with conformal coating

Ø  Suitable for critical applications

Ø  Ultra-slim,140mm width

Ø  Free air convection

Ø  3 years warranty

SPECIFICATION

MODEL

DG-960-24

ABS-75-12

DG-960-48



OUTPUT

DC Output

24V

48V

Rated Current

40A

20A

CurrentRange    Note 1

0~40A

0~20A

Ripple and Noise

Note 2

0~70

≤240mV

≤480mV

-25℃

≤480mV

≤960mV

Voltage ADJ. Range

24~28V

48~54V

Voltage Accuracy

±3.0%

Line Regulation

±0.5%

Load Regulation

±1.0%

Set-up Time

<1S@230VAC <2S@100VAC full load

Hold up Time

≥20mS(230Vac input, Full load)

Temperature Coefficient

±0.03%/℃

Overshoot and Undershoot

<5.0%

INPUT

VoltageRange

85Vac~264Vac, 220Vdc-370Vdc

FrequencyRange

47Hz~63Hz

Power Factor (typical)

0.99/100Vac    0.98/230Vac  full load

Efficiency ( Typical) @ 230Vac

94.4%

≥84%


94.5%


≥88%

AC Current (max.)

<11 A/100Vac       <5.0A/230Vac

<10 A/100Vac       <5.0A/230Vac

Inrush Current (Typical)

<30A/100Vac     <60A/230Vac  Cold start

Leakage Current

≤1.18mA/2.82mA TN- TT-mains/IT-mains (264Vac input, 50Hz)

PROTECTION

Over Load

110%~150% of rated current, Constant current limiting for some time(150% of rated current, last 3S) then PS stop working for 7S,after 7S,if the load <=rated current, PS will work normally, auto recovery

Over voltage

29~33V, hiccup mode, Auto recovery

56~63V, hiccup mode, Auto recovery

Over temperature

115±5℃, detect on temperature controller; shut down O/P, auto recovery after temperature goes down.

Short Circuit

Long-term mode, auto recovery

ENVIRONMENT

Operating amb. Temp. & Hum.

-25℃~70℃; 20%~90%RH No condensing

Storage Temp. & Hum.

-40℃~85℃; 5%~95%RH No condensing

SAFETY &EMC

Note 3

Safety Standards

meet UL508, UL60950, EN60950

Withstand Voltage

Primary-Secondary: 3.0KVac/20mA .Primary-PG: 2.5KVac/20mA. Secondary-PG: 0.5KVac/40mA.

Output-DC OK: 0.5KVac/1mA

Isolation Resistance

10Mohms



EMC Emission

Compliance to EN55022, EN55024, FCC PART 15  CLASS A

Harmonic Current

Compliance to EN61000-3-2, CLASS A

EMC Immunity

Compliance to EN61000-4-2,3,4,5,6,11; heavy industry level

OTHERS

MTBF (MIL-HDBK-217F)

More than 300,000Hrs (25℃, Full load) MIL-217 Method 2 Components Stress Method

Dimension (L*W*H)

140*124.6*138.2mm

Packing

6pcs/CTN, 15Kgs/CTN, 0.04cbm

Cooling method

Cooling by free air convection


Additional function

Power boost

150% of rated current

Parallel function

support

DC-OK

V On: when output voltage is up to 90% of rated output voltage

V Off: when output voltage is down to 85% of rated output voltage

DC-OK relay contact rating

Max 30V/1Aor 60V/0.3Aor 30Vac/0.3AResistive load

DC OK LED

Green

Over load LED

Red, when output voltage goes down to 85% of rated voltage, overload LED flicker

When output voltage goes up to 90% of rated voltage, overload LED goes out

Shut down signal

Remote shut down output voltage

Remote control output voltage

Remote control/adjust output voltage

NOTE

1. All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature.

2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor.

3.The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on https://www.powerld.com.


DIN rail power supply is a kind of switching power supply, which can convert unstable input voltage into stable output voltage. We can meet all industry standards of DIN rail power supply. Learn more, follow us, and leave us a message.
