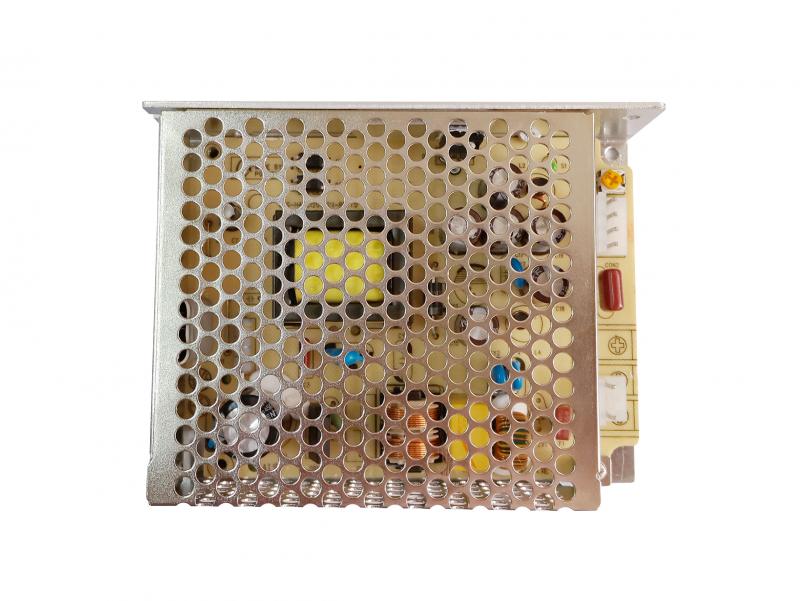

GK-H100SX

CMG-H150D24G+12-M

Ø High voltage input, 176~264Vac Ø High Efficiency, long life and High reliability Ø Output protections: SCP/OVP/OLP/OPP Ø Wide operating ambient temperature (-25℃~65℃) Ø All using 105℃ long life electrolytic capacitors. Ø 100% full load burn-in test Ø 2 years warranty Ø Isolated Dual Outputs MODEL CMG-H150D24G+12-M OUTPUT DC Output V1 24V V2 12V Rated Current V1 6A V2 5A Current Range Note 3 V1 0.5~5.0A(5.0Ais recommended) V2 0.3~3.0A(3.0Ais recommended) Ripple and Noise Note4 0~65℃ V1 240mV V2 120mV Ripple and Noise -25~0℃ V1 480mV V2 240mV Voltage ADJ. Range 21.6~26.4V Voltage Accuracy V1 ±1.0% V2 ±10.0% Line Regulation V1 ±0.5% V2 ±1.0% Load Regulation V1 ±3.0% V2 ±10.0% Set-up Time ＜1.5S (220Vac input, V1 @ 5A, V2 @ 3.0A) Hold up Time ＞20mS(220Vac input, V1 @ 5A, V2 @ 3.0A) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT Voltage Range 176Vac~264Vac Frequency Range 47Hz--63Hz Efficiency ( Typical) ≥80% (220Vac input, V1 @5A, V2 @3.0A) AC Current (max.) <1.9A Inrush Current (Typical) <50A@220Vac Cold start Leakage Current Input—output:<0.25mA Input—PG:<3.5mA PROTECTION Over Power 157~225W, Hiccup mode, auto recovery Over Current V1: 5.5~8.0A, Hiccup mode, auto recovery Over Voltage V1: 25.2~36V, Hiccup mode, auto recovery Short Circuit Long-term mode, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -25℃~65℃; 20%~90%RH No condensing Storage Temp. & Hum. -30℃~85℃; 10%~95%RH No condensing SAFETY &EMC (Note 5) Safety Standards GB4943/ EN60950 Withstand Voltage Primary-Secondary:3.0KVac /10mA .Primary-PG:1.5KVac/10mA. Secondary-PG: 0.5KVDC/10mA. Output V1—V2: 0.5KVDC/10mA. Test time:1 min Isolation Resistance 10M ohms EMI Conduction&Radiation Compliance to EN55022, CLASS B Harmonic Current Compliance to EN61000-3-2，CLASS A EMS Immunity Compliance to EN61000-4-2,4,5,8,11; OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension (L*W*H) 199×99×38mm Packing 20PCS/CTN, 15KGS, 0.04cbm Cooling method Cooling by free air convection NOTE 1. Total output power can’t exceed 150W, Label is marked by the Max current. Recommend the loading is 24V/5A,12V/3.0A. 2. All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 3. Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor. 4. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives.

CMG-H150DXG+X

Ø High Efficiency, and High reliability Ø Output protections: SCP/OVP/OPP/OLP Ø Wide operating ambient temperature (-10℃~50℃) Ø All using 105℃ long life electrolytic capacitors. Ø 100% full load burn-in test Ø 2 years warranty Ø Isolated Dual Outputs SPECIFICATION MODEL CMG-H150D12G+24 CMG-H150D24G+12 OUTPUT DC Output V1 12.0V 24.0V V2 24.0V 12.0V Rated Current V1 5A 6A Note 2 V2 6A Note 1 5A CurrentRange Note 3 V1 0.5~5.0A 0~6.0A V2 0.6~6.0A 0~5.0A Ripple and NoiseNote4 0~65℃ V1 120mV 240mV V2 240mV 120mV Ripple and Noise -25~0℃ V1 240mV 480mV V2 480mV 240mV Voltage ADJ. Range 11.4V~12.6V 22.8V~25.0V Voltage Accuracy V1 ±1.0% ±1.0% V2 ±10.0% ±10.0% Line Regulation V1 ±0.5% V2 ±1.0% Load Regulation V1 ±3.0% V2 ±10.0% Set-up Time ＜1.0S (230Vac input, Full load) Hold up Time ＞20mS(230Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT VoltageRange 176Vac~264Vac FrequencyRange 47Hz--63Hz Efficiency ( Typical) 80% 80% AC Current (max.) 2.0A/176VAC Inrush Current (Typical) 50A@220Vac Cold start Leakage Current Input—output:<0.25mA Input—PG:<3.5mA PROTECTION Over Power 105%~150% of rated output current, auto recovery Over Current V1 110%~220% Auto recovery 110%~150% Auto recovery Over Voltage V1: 110%~150% of rated output voltage, auto recovery Shorted Circuit Long-term mode, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -10℃~50℃; 20%~90%RH No condensing Storage Temp. & Hum. -30℃~85℃; 10%~95%RH No condensing SAFETY &EMC (Note 5) Safety Standards GB4943-2001; EN60950-1：2006 Withstand Voltage Primary-Secondary:3.0KVac;≤10mA .Primary-PG:1.5KVac;≤10mA. Secondary-PG:0.5KVDC;≤10mA. Output V1—V2: 0.5KVDC;≤10mA. Test time:1 min Isolation Resistance ≥100M ohms EMI Conduction&Radiation Compliance to EN55022(CISPR22)ClassB Harmonic Current Compliance to EN61000-3-2,17625.1-2003 EMSImmunity Compliance to EN61000-4-2,3,4,5,6,8,11;ENV50204,light industry level,criteriaA OTHERS MTBF (MIL-HDBK-217F) More than 100,000Hrs (25℃, Full load) Dimension (L*W*H) 199×98×40mm Packing 0.75Kg/pcs,20PCS/CTN, 15KGS. Cooling method Cooling by free air convection NOTE 1. CMG-H150D12G+24 Total output power can’t exceed 150W, Label is marked by the Max current. Recommend the loading is 12V/5A,24V/3.75A. 2. CMG-H150D24G+12Total output power can’t exceed 150W, Label is marked by the Max current. Recommend the loading is 24V/5A,12V/3.0A. 3. All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 4. Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor. 5. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. Powerld enterprises is specialized in switching power supply since 1991, obtained ISO9001 certificate in 2002, ISO14001 certificate in 2006.As a professional switching power supply manufacturer,Powerld can supply a broad range of power supply,we can not only supply our customers with high quality products,but also our best service and fast delivery time.

GST-H150SX-M

Ø High Efficiency, and High reliability Ø Output protections: OCP/OPP/SCP Ø Wide operating ambient temperature (-10℃~50℃) Ø All using 105℃ long life electrolytic capacitors. Ø 100% full load burn-in test Ø 1 years warranty SPECIFICATION MODEL GST-H150S8.5-M GST-H150S12-M GST-H150S24-M GST-H150S28-M GST-H150S36-M GST-H150S48-M OUTPUT DC Output 8.5V 12V 24V 28V 36V 48V Rated Current 17.5A 12.5A 6.0A 5.5A 4A 3.0A CurrentRange 0~17.5A 0~12.5A 0~6.0A 0~5.5A 0~4.0A 0~3.0A Ripple and Noise Note 2 100Mv 120mV 200mV 200mV 200 mV 200mV Voltage ADJ. Range ±5% of rated output voltage Voltage Accuracy ±2.0 Line Regulation ±0.5% Load Regulation ±1.0% Set-up Time <=1.0S (220Vac input, Full load) Hold up Time >=20mS(220Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT VoltageRange 176Vac~265Vac FrequencyRange 47Hz~63Hz Efficiency (Typical) 220Vac 76% 80% 81% 82% 85% 85% AC Current (max.) 4.0A 2.0A 1.9A 2A 2.0A 1.8A 0.50A Inrush Current (Typical) 40A@220Vac Cold start Leakage Current <3.5mA PROTECTION Over Current 105%~150% of rated output current, auto recovery Over Power 105%~150% of rated output current, auto recovery Shorted Circuit Long-term mode,auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -10℃~50℃; 20%~90%RH No condensing Storage Temp. & Hum. -25℃~85℃; 10%~95%RH No condensing SAFETY &EMC Safety Standards EN60950-1 Withstand Voltage Primary-Secondary:1.5KVac; Primary-PG:1.5KVac; Secondary-PG:0.5KVDC Isolation Resistance 100M ohms OTHERS MTBF (MIL-HDBK-217F) More than 100,000Hrs (25℃, Full load) Dimension (L*W*H) 199×98×40mm Connection 7P/8.025mm barrier terminal block Cooling method Cooling by free air convection NOTE 1. All parameters NOT specially mentioned are measured at rated input, rated load and 25℃of ambient temperature. 2. Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor. Powerld enterprises is specialized in switching power supply since 1991, obtained ISO9001 certificate in 2002, ISO14001 certificate in 2006.As a professional switching power supply manufacturer,Powerld can supply a broad range of power supply,we can not only supply our customers with high quality products,but also our best service and fast delivery time.

CMG-H150D5G+12-M

Features: Ø High AC voltage input (176~264Vac) Ø High Efficiency, and High reliability Ø Output protections: SCP/OVP/OPP/OLP Ø Wide operating ambient temperature (-25℃~65℃) Ø All using 105℃ long life electrolytic capacitors. Ø 100% full load burn-in test Ø 2 years warranty Ø Isolated Dual Outputs MODEL CMG-H150D5G+12-M OUTPUT DC Output V1 V2 5V 12V Rated Current 10A 8A 1~10A 0.8~8A Ripple and Noise Note2 0~65℃ ≤50mV ≤120mV -25℃ ≤100mV ≤240mV Voltage ADJ. Range 4.6~5.4V / Voltage Accuracy ±1.0% ±10.0% Line Regulation ±0.5% ±1.0% Load Regulation ±3.0% ±10.0% Set-up Time ＜1.5S (220Vac input, Full load) Hold up Time ＞20mS(220Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT Voltage Range 176Vac~264Vac Frequency Range 47Hz--63Hz Efficiency ( Typical) 75% AC Current (max.) <1.9A Inrush Current (Typical) <50A@220Vac Cold start Leakage Current Input—output:<0.25mA Input—PG:<3.5mA PROTECTION Over Power 175~225W, Hiccup mode, auto recovery Over Current V1: 11~22A, hiccup mode, auto recovery Over Voltage V1: 5.25~7.5V, Hiccup mode, auto recovery Shorted Circuit Long-term mode, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -25℃~65℃; 20%~90%RH No condensing Storage Temp. & Hum. -30℃~85℃; 10%~95%RH No condensing SAFETY &EMC (Note 5) Safety Standards GB4943/EN60950 Withstand Voltage Primary-Secondary: 3.0KVac/10mA ; Primary-PG:1.5KVac/10mA. Secondary-PG: 0.5KVDC/10mA. Output V1—V2: 0.5KVDC/10mA. Test time:1 min Isolation Resistance 10M ohms EMI Conduction&Radiation Compliance to EN55022 Class B Harmonic Current Compliance to EN61000-3-2, Class A EMS Immunity Compliance to EN61000-4-2,3,4,5,6,8,11; OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension (L*W*H) 199×99×38mm Packing 20PCS/CTN, 15KGS, 0.04CBM Cooling method Cooling by free air convection NOTE 1. All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2. Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor. 3. The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on http://www.powerld.com.cn.

PDF-800-X

Ø Universal AC input (90~264Vac) Ø Built-in active PFC function, PF>0.96 Ø Using ZVS technology to reduce power dissipation Ø Output protection: OVP/OLP/SCP/OPP/OTP Ø Built in Fan speed control Ø Built in AC inrush current limiting circuit(<20A) Ø Build in constant current limiting circuit Ø Built in Remote Sense Function Ø Build in DC-OK / remote sense signal Ø Wide operating ambient temperature (-30℃~70℃) Ø PCB with conformal coating Ø 1 U low profile,41mm Ø 3 years warranty MODEL PDF-800-24 PDF-800-36 PDF-800-48 OUTPUT DC Output 24V 36V 48V Rated Current 33A 22A 16.5A Ripple and Noise Note 2 ≤200mV ≤200mV ≤200mV Voltage ADJ. Range 21.6~26.4V 32.4~39.6V 43.2~52.8V Voltage Accuracy ±2% Line Regulation ±0.5% Load Regulation ±2% Set-up Time ≤3S (220Vac input, Full load) Hold up Time ≥8mS (220Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT Voltage Range 90Vac~264Vac Frequency Range 47Hz--63Hz Power Factor(Typical) PF≥0.96/230VAC PF≥0.98/115VAC Full Load Efficiency ( Typical) ≥89% ≥89% ≥89% AC Current (max.) ≤12 A Inrush Current (Typical) ≤20A @220Vac Cold start Leakage Current Input—output: ≤0.25mA Input—PG: ≤3.5mA INPUT PROTECTION Low-voltage protection point 75~85Vac, shut down. Low-voltage recovery point 80~90Vac, Auto recovery Over-voltage protection point 280~295Vac, shut down. Over voltage recovery point 275~285Vac, Auto recovery OUTPUT PROTECTION Over Current 36.3~44.55A 24.2~29.7A 18.15~22.3A Protection type: Constant current, auto recovery Over power 871.2~1069.2W 871.2~1069.2W 871.2~1069.2W Protection type: Constant current, auto recovery Over Voltage 27.6~36V 41~45V 55.2~60V Protection type: Constant voltage, auto recovery Over Temperature 105℃+5℃(detect on Mosfet temperature);shut down, auto recovery after the temperature goes down to 75℃ Short Circuit Long-term mode, constant current, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -30℃~70℃; 20%~90%RH No condensing (refer to derating curve) Storage Temp. & Hum. -40℃~85℃; 10%~95%RH No condensing SAFETY &EMC (Note 3) Safety Standards UL60950-1; EN62368-1 Withstand Voltage Primary-Secondary: 3.0KVac/10mA .Primary-PG:1.5KVac/10mA. Secondary-PG: 0.5KVac/10mA. Isolation Resistance 10M ohms EMI Conduction & Radiation Compliance to EN55032 Class B Harmonic Current Compliance to EN61000-3-2,Class D EMS Immunity Compliance to EN61000-4-2,3,4,5,6,8,11; OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension (L*W*H) 226×116.5×41mm Packing 12PCS/CTN, 16.8KGS, 0.04CBM Cooling method Forced air cooling (Built-in fan, the fan speed is controlled by load and internal temp.) DC OK 4-6V (when output voltage is normal) NOTE 1. All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2. Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor. 3. The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on http://www.powerld.com.cn. Powerld switching power supply, we focus on high quality!

DG-U240SX

Ø Universal AC input range(90~264Vac) Ø Built-in active PFC,PF>0.94 Ø High efficiency up to 87% Ø Built-in current limiting circuit Ø Output protections: OVP/OLP/SCP/OTP Ø Wide operating ambient temp (-20℃~70℃) Ø Can be installed on TS-35/7.5 or TS-35/15 Ø 100% full load burn-in test Ø PCB soldering side with conformal coating Ø Suitable for critical applications Ø Altitude up to6000m Ø Ultra-slim,70mm width Ø Cooling by free air convection Ø 3 years warranty SPECIFICATION MODEL DG-U240S24 DG-U240S48 OUTPUT DC Output 24V 48V Rated Current 10A 5A CurrentRange Note 1 0~10A 0~5A Ripple and Noise Note 2 0~70℃ ≤120mV ≤240mV -20℃ ≤240mV ≤480mV Voltage ADJ. Range 24~28V 48~56V Voltage Accuracy ±1.0% Line Regulation ±0.5% Load Regulation ±1.0% Set-up Time <2S@230Vac Hold up Time ≥20mS@230Vac Full load Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT VoltageRange 90Vac~264Vac, 127Vdc-370Vdc FrequencyRange 47Hz~63Hz Efficiency ( Typical) @ 230Vac 87% 88% AC Current (max.) <3A/115Vac ; <2.5 A/230Vac <3.5A/115Vac; <2.5A/230Vac Inrush Current (Typical) <30A/115Vac; <60A/230Vac Cold start Power Factor 0.98/110VAC, 0.94/230VAC Leakage Current Input—output:<0.25mA Input—PG:<3.5mA (264Vac input, 63Hz) PROTECTION Over Load 10.3~11.5A 5.5~6.5A Protection type: Constant current Over voltage 28~35V 58~63V Protection type: Shut down, auto recovery Over temperature 100±5℃, detect on heat sink of power transistor; shut down O/P, auto recovery after fault condition removed. Short Circuit Long-term mode, auto recovery Operating amb. Temp. & Hum. -20℃~70℃; 20%~90%RH No condensing (pls refer to derating curve) ENVIRONMENT Storage Temp. & Hum. -40℃~85℃; 5%~95%RH No condensing Safety Standards UL508, UL60950, EN60950 SAFETY &EMC Note 3 Withstand Voltage Primary-Secondary: 3.0KVac/10mA .Primary-PG: 1.5KVac/10mA. Secondary-PG: 0.5KVdc/10mA. Isolation Resistance 100Mohms EMC Emission Compliance to EN55022, EN55024 CLASS B Harmonic Current Compliance to EN61000-3-2, CLASS A EMC Immunity Compliance to EN61000-4-2,3,4,5,6,11; heavy industry level MTBF (MIL-HDBK-217F) More than 300,000Hrs (25℃, Full load) OTHERS Dimension (L*W*H) 70*124*127mm Packing 10pcs/CTN, 11.5Kgs,0.04cbm Cooling method Cooling by free air convection NOTE 1. All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature. 2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3.The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” onhttps://www.powerld.com. We have a complete DIN rail power supply product catalog, providing reliable quality DIN rail power supply and affordable prices, fast delivery, customizable, please leave a message for consultation.

PD-35-X

Ø No Load power consumption<0.5W Ø Universal AC input range Ø Miniature size, high power density, high efficiency, long life and high reliability Ø Withstand 300VA surge input for 5 sec. Ø Output protections: OLP/OVP/SCP Ø Wide operating ambient temp (-25℃~70℃)，100% @50℃& 60%@70℃ Ø Operating altitude up to 5000M Ø All using 105℃ long life electrolytic capacitors. Ø 100% full load burn-in test Ø Easy assembling from top side Ø PCB soldering side with conformal coating Ø Suitable for critical applications Ø 3 years warranty SPECIFICATION MODEL PD-35-5 PD-35-12 PD-35-15 PD-35-24 PD-35-48 OUTPUT DC Output 5V 12V 15V 24V 48V Rated Current 6A 3A 2.4A 1.5A 0.76A Current Range 0~6A 0~3A 0~2.4A 0~1.5A 0~0.76A Ripple and Noise Note 2 0~70℃ <50mV <80mV <120mV <120mV <180 mV -25~0℃ <80mV <180mV <200mV <200mV <240mV Voltage ADJ. Range 4.75V-5.5V 11.4V-13.2V 14.25V-16.5V 22.8V-26.4V 45.6V-52.8V Voltage Accuracy ±3.0% ±3.0% ±3.0% ±3.0% ±3.0% Line Regulation ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% Load Regulation ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% Set-up Time ＜1S (230Vac input, Full load); Hold up Time ＞20mS(230Vac input, Full load); ＞10mS(120Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT Voltage Range 90Vac~264Vac，127~370Vdc Frequency Range 47Hz~63Hz Efficiency ( Typical) 115Vac input 79% 83% 85% 86% 87% 230Vac input 80% 84% 86% 87% 88% AC Current (max.) <1A(max) Inrush Current (Typical) <50A@230Vac Cold start Leakage Current Input—output:<3.5mA Input—PG:<0.25mA PROTECTION Over Load 105%~150% of rated output current, constant power,auto recovery Over Voltage 105%~150% of rated output voltage, Constant Voltage Short Circuit Long-term mode, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -25℃~70℃; 20%~90%RH No condensing (refer to the derating curve) Storage Temp. & Hum. -40℃~85℃; 10%~95%RH No condensing SAFETY &EMC Note 3 Safety Standards UL60950-1 2nd Ed; IEC 60950-1:2005(2nd Ed) ;EN60950-1:2006 Withstand Voltage Primary-Secondary:3.0KVac; ≤10mA .Primary-PG:1.5KVac; ≤10mA. Secondary-PG:0.5KVDC;≤10mA. Isolation Resistance ≥100M ohms EMC Emission Compliance to EN55022,EN55024 ClassB Harmonic Current Compliance to EN61000-3-2,-3 EMC Immunity Compliance to EN61000-4-2,3,4,5,6,8,11;EN55024,EN61000-6-2 heavy industry level OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension (L*W*H) 101.6×63.5×33mm Packing 60PCS/CTN, 15.18KGS, 0.06CBM Cooling method Cooling by free air convection NOTE 1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature. 2. Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. 4. Powerld offer accessories for Din-35 rail bar. Please contact sales staff for details. Quality industrial power supply products, excellent service, hope to establish the long-term business relationship with you.
