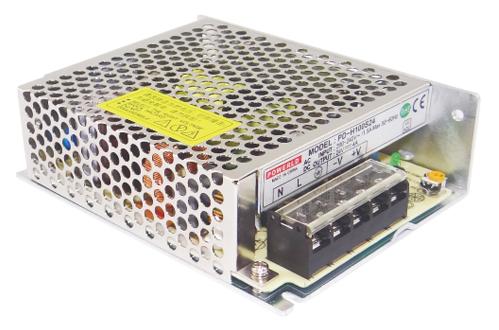

PD-H100SX

  • Brand:

    POWERLD
  • Item NO.:

    PD-H100SX
  • Wattage (W):

    100
  • Input:

    176Vac~264Vac
  • Output:

    24
  • PFC:

    N
  • Conformal Coating:

    Y
  • Approval:

    UL/CB/CE
  • Dimension:

    129×98×38mm
  • Product Detail

Ø  No Load power consumption<0.5W

Ø  High AC input

Ø  Miniature size,high power density,high efficiency,long life and high reliability

Ø  Withstand 300VA surge input for 5 sec.

Ø  Output protections: OLP/OVP/SCP

Ø  Wide operating ambient temp (-25℃~70℃),100% @50℃、70%@70℃

Ø  Operating altitude up to5000M

Ø  All using105℃long life electrolytic capacitors.

Ø  100% full load burn-in test

Ø  Easy assembling from top side

Ø  PCB soldering side with conformal coating

Ø  Suitable for critical applications

Ø  3 years warranty

SPECIFICATION

MODEL

PD-H100S24

OUTPUT

DC Output

24V

Rated Current

4A

CurrentRange    Note 1

0~4A

Ripple and Noise  Note2

0℃~70℃

80mV

-25℃~0℃

200 mV

Voltage ADJ. Range

22.8~26.4V

Voltage Accuracy

±1.0%

Line Regulation

±0.5%

Load Regulation

±1.0%

Set-up Time

<1.0S (230Vac input, Full load)

Hold up Time

>20mS(230Vac input, Full load)

Temperature Coefficient

±0.03%/℃

Overshoot and Undershoot

<5.0%

INPUT

VoltageRange

176Vac~264Vac

FrequencyRange

47Hz~63Hz

Efficiency ( Typical)

86.5%

AC Current (max.)

<1.5A(max)

Inrush Current (Typical)

<60A@264Vac    Cold start

Leakage Current

Input—output:<3.5mA    Input—PG:<0.25mA

PROTECTION

Over Load

105%~150% of rated output current, constant power

Over power

105%~150% of rated output power, constant power

Over Voltage

115%~150% of rated output voltage, Constant Voltage

Short Circuit

Long-term mode, auto recovery

ENVIRONMENT

Operating amb. Temp. & Hum.

-25℃~70℃; 20%~90%RH No condensing (refer to the derating curve)

Storage Temp. & Hum.

-40℃~85℃; 10%~95%RH No condensing

SAFETY &EMC

Note 3

Safety Standards

EN60950-1:2006

Withstand Voltage

Primary-Secondary:3.0KVac;≤10mA .Primary-PG:1.5KVac;≤10mA. Secondary-PG:0.5KVDC;≤10mA.

Isolation Resistance

≥100M ohms

EMI Conduction&Radiation

Compliance to EN55022 / FCC PART15 ClassB

Harmonic Current

Compliance to EN61000-3-2,-3 Class A

EMSImmunity

Compliance to EN61000-4-2,3,4,5,6,8,11;

OTHERS

MTBF (MIL-HDBK-217F)

More than 200,000Hrs (25℃, Full load)

Dimension (L*W*H)

129×98×38mm

Packing

30PCS/CTN, 14.2KGS, 0.044CBM

Cooling method

Cooling by free air convection


NOTE

1. All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature.

2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor.

3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives.

4. Powerld offer accessories for Din-35 rail bar. Please contact sales staff for details.
