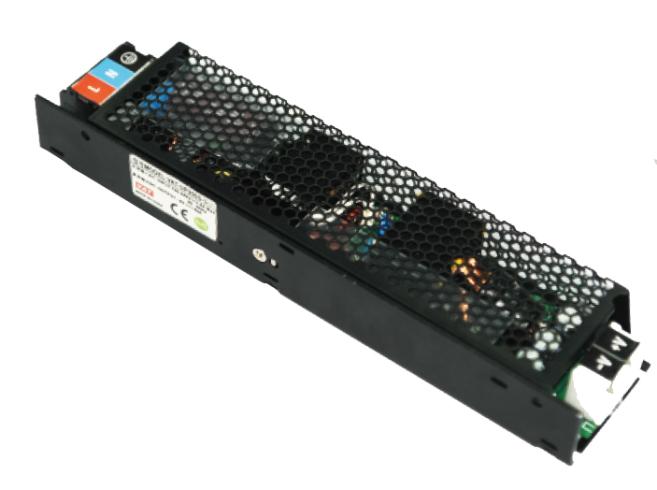

VAT-UP200S-X-P

  • Brand:

    POWERLD
  • Item NO.:

    VAT-UP200S-X-P
  • Wattage (W):

    200
  • Input:

    90-264Vac
  • Output:

    4.6, 5
  • PFC:

    Y
  • Conformal Coating:

    Y
  • Approval:

    UL, CB, CE
  • Dimension:

    210*50*29mm
  • Product Detail

Ø  Universal AC input (90~264Vac)

Ø  With Active PFC, PF>0.95

Ø  Surge 300Vac for 60S

Ø  High Efficiency, long life and High reliability

Ø  Output protections: OLP/OVP/SCP/OTP/OPP

Ø  1+1 parallel function, current sharing

Ø  Wide operating ambient temperature (-40℃~65℃)

Ø  Operating altitude up to5000m

Ø  All using 105℃ long life electrolytic capacitors.

Ø  100% full load burn-in test

Ø  Fanless, quiet working

Ø  PCB with conformal coating

       Ø  3 years warranty

MODEL

VAT-UP200S-4.6-P

VAT-UP200S-5-P

OUTPUT

DC Output

4.6V

5V

Rated Current

40A

40A

CurrentRange    Note 1

0~40A

0~40A

Peak load

50A(50mS, 220Vac input)

48A(50mS, 220Vac input)

Ripple and Noise

Note 2

0~65℃

≤150mV

≤150mV

Voltage Accuracy@-20~65C

±3%

±3%

Line Regulation/

±0.5%

Load Regulation

±2%

Set-up Time @25℃

≤2S (220Vac input,40A)

Hold up Time

≥5mS (220Vac input,32A)

Temperature Coefficient

±0.03%/℃

Overshoot and Undershoot

<5.0%

Parallel (current sharing)

Current-unbalance< 10% (single PS drive40Aload, the voltage of current share bus is 5~6V)

INPUT

VoltageRange  Note 3

90Vac~264Vac

FrequencyRange

47Hz~63Hz

Efficiency ( Typical)

110Vac

87%

89%

220Vac

88%

90%

AC Current (max.)

<3.5A

Inrush Current (Typical)

<15A@220Vac     Cold start

Power Factor @25℃

>0.95 (input 220Vac,40A)

Stand by power consumption

<4W (input 220Vac)

Leakage Current

Input—output:<0.25mA    Input—PG:<3.5mA  (input 264Vac, 63Hz)

PROTECTION

Over Load

44~65A, hiccup mode, auto recovery

45~55A, hiccup mode, auto recovery

Over Power

193~299W, hiccup mode, auto recovery

225~275W, hiccup mode, auto recovery

Over Voltage

5.1~7V, hiccup mode, auto recovery

5.2~6.5V, hiccup mode, auto recovery

Over Temperature

105℃+10℃(detect on temperature controller of PFC);shut down, auto recovery after the temperature goes down to75℃

Short Circuit

Long-term mode, auto recovery

ENVIRONMENT

Operating amb. Temp. & Hum.

-40℃~65℃; 20%~90%RH No condensing(refer to the derating curve)

Storage Temp. & Hum.

-40℃~85℃; 10%~95%RH No condensing

SAFETY &EMC

(Note 4)

Safety Standards

UL60950-1 2ndEd; IEC 60950-1:2005(2ndEd) ;EN60950-1:2006

Withstand Voltage

Primary-Secondary: 3.0KVac/10mA .Primary-PG:1.5KVac/10mA. Secondary-PG: 0.5KVDC/10mA.

Isolation Resistance

10Mohms

EMI Conduction&Radiation

Compliance to EN55022, EN55024, FCC PART 15 CLASS B

Harmonic current

Compliance toEN61000-3-2CLASSD

EMSImmunity

Compliance toEN61000-4-2,3,4,5,6,8,11;

OTHERS

MTBF (MIL-HDBK-217F)

>200000h (25℃, Full load)

Dimension (L*W*H)

210*50*29mm

Packing

28PCS/CTN, 0.04CBM

Power Good Signal

Working properly: 3.3V

Working abnormally: <0.7V

Reverse voltage start

4.6V output

When output reverse voltage is 5~5.1V, PS starts normally.

5V output

When output reverse voltage is 5~10V, PS starts normally.

Cooling method

Cooling by free air convection

NOTE

1.    All parameters NOT specially mentioned are measured at rated input, rated load and 25℃of ambient temperature.

2.    Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor.

3.The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” onhttp://www.powerld.com.cn.
