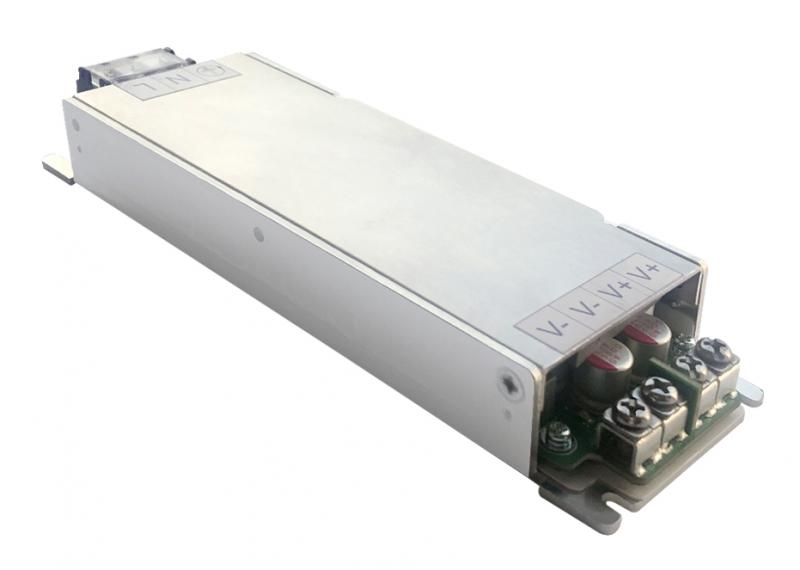

VAT260UPXAA

  • Brand:

    POWERLD
  • Item NO.:

    VAT260UPXAA
  • Wattage (W):

    260
  • Input:

    90-264Vac
  • Output:

    4.2, 4.8, 5
  • PFC:

    Y
  • Conformal Coating:

    Y
  • Approval:

    UL, CB, CE,EN62368-1,UL62368-1
  • Dimension:

    165*55*24mm
  • Product Detail

Ø  Universal AC input (90~264Vac)

Ø  With Active PFC, PF>0.95

Ø  Stand-by power consumption: 0.35W

Ø  High Efficiency, long life and High reliability

Ø  Output protections: OCP/OVP/SCP/OTP

Ø  Wide operating ambient temperature (-30℃~65℃)

Ø  All using 105℃ long life electrolytic capacitors.

Ø  100% full load burn-in test

Ø  Fanless, quiet working

Ø  PCB with conformal coating

Ø  Low profile, 23mm

Ø  3 years warranty

Ø  UL/CE/CCC/CB approved

MODEL

VAT260UP4.2AA

VAT260UP5AA

OUTPUT

DC Output

4.2V

5V

Rated Current

50A

50A

CurrentRange    Note 1

0~50A

0~50A

Ripple and Noise

Note 2

0~65℃

≤250mV

≤300mV

-30~0℃

≤500mV

≤600mV

Voltage Accuracy

±3%

Set-up Time @25℃

≤4S (220Vac input, 50A)

Temperature Coefficient

±0.03%/℃

Overshoot

≤5.0%

INPUT

Voltage Range

90Vac~264Vac

Rated input voltage range

100~240Vac

FrequencyRange

47Hz~63Hz

Efficiency ( Typical)

90% @220Vac input, 50A ( 91% @220Vac, 60% load)

AC Current (max.)

<3.5A

Inrush Current (Typical)

<80A@220Vac     Cold start

Power Factor @25℃

>0.95 (input 220Vac, 50A)

Leakage Current

Input—output:<0.25mA    Input—PG:<3.5mA  (input 264Vac, 63Hz)

Input Protection

Under voltage protection point

55Vac~85Vac, shut down

Under voltage recovery point

60Vac-90Vac, auto recovery, return difference≥5V

Output

PROTECTION

Over Current

≥55A , auto recovery

Over Voltage

4.6~6.5V, auto recovery

5.5~7V, auto recovery

Over Temperature

Test at40A

Ambient temp.

Protection when ambient temp. is over 65℃; auto recovery when ambient temp. is lower than 50℃

Housing temp.

Protection when temp. of upper housing is over 85℃; auto recovery when it is less than 70℃

Short Circuit

Long-term mode, auto recovery

ENVIRONMENT

Operating amb. Temp. & Hum.

-30℃~65℃; 20%~90%RH No condensing (refer to the derating curve)

Storage Temp. & Hum.

-40℃~85℃; 10%~95%RH No condensing

SAFETY &EMC

(Note 4)

Safety Standards

IEC 62368-1, UL62368-1, EN62368-1 approved


Withstand Voltage

Primary-Secondary: 3.0KVac/10mA .Primary-PG:1.5KVac/10mA. Secondary-PG: 0.5KVdc/10mA.

Isolation Resistance

10Mohms

EMI Conduction & Radiation

Compliance to EN55032  Class A




EMSImmunity

Compliance toEN61000-4-2,4,5,11;

OTHERS

MTBF

>100000Hrs (25℃, Full load),MIL-217 Method 2 Components Stress Method

Dimension (L*W*H)

165*55*23mm

Packing

24pcs/CTN, 9.2Kgs/CTN

Cooling method

Power supply fixed on the aluminum plate of 450*450*3mm.


NOTE

1.    All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature.

2.    Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor.

3.The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” onhttp://www.powerld.com.cn.
