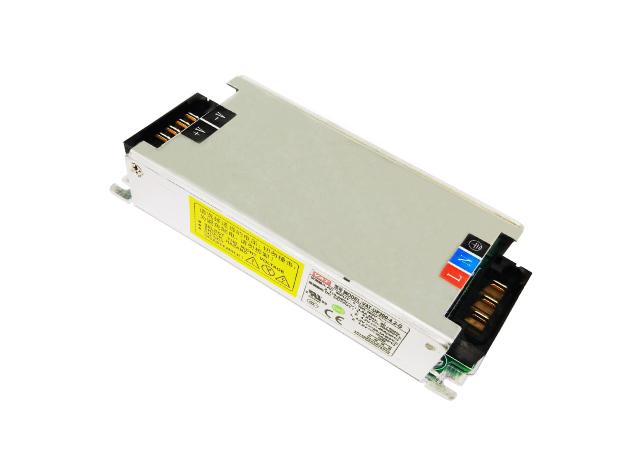

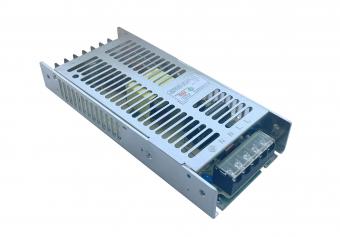

VA-UP200-X-G

  • Brand:

    POWERLD
  • Item NO.:

    VA-UP200-X-G
  • Wattage (W):

    250
  • Input:

    100-264Vac
  • Output:

    5
  • PFC:

    Y
  • Conformal Coating:

    Y
  • Approval:

    UL, CB, CE
  • Dimension:

    145*60*30mm
  • Product Detail

l  AC input: 100 ~ 264Vac

l  Built-in Active PFC, PF>0.95

l  Withstand input 300Vac for 60s

l  High efficiency, long life and high reliability

l  Output protections: OCP/SCP/OPP/OTP

l  Wide operating ambient temperature  (-40℃~60℃)

l  No fan suitable for quiet environment

l  100% full load burn-in test

l  PCB with conformal coating

l 3 years warranty

MODEL

VAT-UP200-5-G

OUTPUT

DC Output

5V

Rated Current

50A

CurrentRange    Note 1

0~50A

Ripple and Noise

Note 2

0~55℃

≤150mV

-40~0℃

≤400mV

Voltage Accuracy

4.9~5.2V

Line Regulation

4.9~5.2V

Load Regulation

4.9~5.2V

Set-up Time

≤2.0S (220Vac input, Full load)

Hold up Time

≥5mS(220Vac input, load32A)

Temperature Coefficient

±0.03%/℃

Overshoot and Undershoot

<±5%

INPUT

VoltageRange

100Vac~264Vac

FrequencyRange

47Hz~63Hz

Efficiency ( Typical)

88%(220Vac input ,load 50A)

AC Current (max.)

<3.5A

Inrush Current (Typical)

<60A@220Vac     Cold start

Power factor

>0.95(220Vac input ,40A)

Standby power

<4W

Leakage Current

Input—output: ≤0.25mA    Input—PG: ≤3.5mA (264Vac input, 63Hz)

PROTECTION

Over Power

225~300W @ 100~170Vac input; 275~300W @ 180~264Vac, Hiccup, auto recovery

Over Current

45A-60A @100-170Vac; 55-70A @ 180-264Vac, Hiccup, auto recovery

Shorted Circuit

Long-term mode, auto recovery

Over Temperature

115℃+5℃(detect on PFC inductance);shut down, auto recovery after the temperature goes down

ENVIRONMENT

Operating amb. Temp. & Hum.

-40℃~60℃; 20%~90%RH No condensing  (refer to the derating curve)

Storage Temp. & Hum.

-40℃~85℃; 10%~95%RH No condensing

SAFETY &EMC

Note 3

Safety Standards

UL60950-1 2nd Ed; IEC 60950-1:2005(2nd Ed) ;EN60950-1:2006

Withstand Voltage

Primary-Secondary: 3.0KVac/10mA .Primary-PG:1.5KVac/10mA. Secondary-PG: 0.5KVDC/10mA.

Isolation Resistance

10Mohms

EMI Conduction & Radiation

Compliance toEN55022 Class B

Harmonic Current

Compliance toEN61000-3-2,CLASS D

EMSImmunity

Compliance to EN61000-4-2,3,4,5,6,8,11;

OTHERS

MTBF (MIL-HDBK-217F)

More than 200,000Hrs (25℃, Full load)

Dimension (L*W*H)

145*60*30mm

Packing

36pcs/CTN

Cooling method

Free air convection

NOTE

1.    All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature.

2.    Measured at 100MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 100uF parallel capacitor.

3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives.
