Products

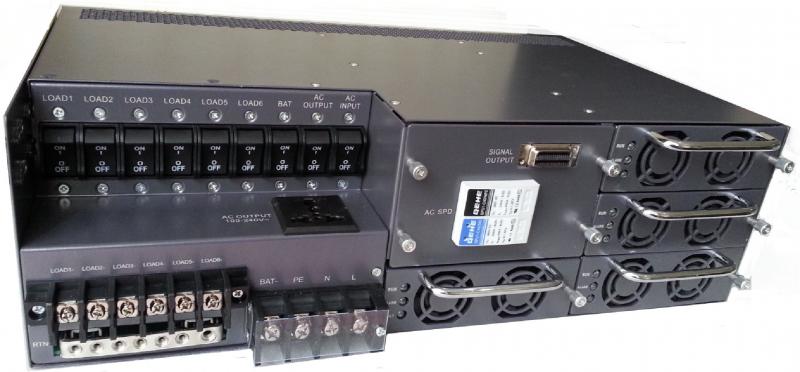

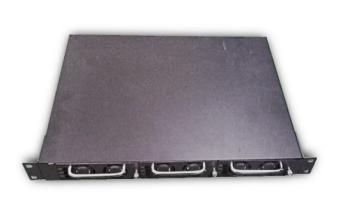

AN4800

  • Brand:

    POWERLD
  • Item NO.:

    AN4800
  • Wattage (W):

    4280
  • Input:

    90~286Vac
  • Output:

    53.5
  • PFC:

    Y
  • Conformal Coating:

    Y
  • Approval:

    N
  • Dimension:

    482.6x130.5x261mm (19
  • Product Detail

Ⅰ. General

 ●  Input range 90-286Vac

●  Have PFC function, PF≥0.99

●  It features input over/under voltage protection, output over current protection, output overvoltage protection, output short circuit protection

●  Wide operating temperature range (-30 ~55 )

●  System with battery management, power system monitoring, configure the sensor can achieve environmental monitoring, can provide RS485 (optional) communications can take the initiative to report alarms, easy to implement remote monitoring and unattended

High efficiency, long life and high reliability


IV. Environmental Conditions

No.

Items

Technical Specifications

Unit

Remarks

1

Operating Temperature

-20 +65

-40 full load start up+55~+65 derating 20% in linearity.

2

Storage Temperature

-40 +70

3

Relative Humidity

595

%

No condensation

4

Altitude

0-5000

m

derate1℃with every 200 meters’ rising at 2000-5000m

V. Electrical Characteristics

No.

Item

Technical Requirement

Unit

Remark

1Input Characteristics

1.1

Rated input voltage

200240

Vac

Max AC input voltage 310VAC(static state),no damage to the unit for long time

AC Input voltage range

90290

1.2

Frequency

4565(typical50/60)

Hz

1.3

AC input format

Single-phase three-wire

Can be used for 110Vac or 120Vac dual FireWire input

VI. Safety & EMC

No.

Item

Criterions

Remark

1

Dialectical strength

Input-output

4242Vdc/10mA/ 1min

No flyover, no breakdown.

Input-ground

2121Vdc/10mA/ 1min

Output-ground

700Vdc/10mA/ 1min

2

Isolation resistance

Input-output

10MΩ@500Vdc

Under normal air pressurehumidity 90%

Input-ground

10MΩ@500Vdc

Output-ground

10MΩ@500Vdc

3

Touch current (Input-ground)

Warning large leakage current, power must be grounded before

4

Ground Resistance

0.1Ω

5

Anti Lightning

The AC input terminal can endure surge current wave of 5kA8/20µS , 5 times each for positive and negative time cycle 1 minute.refer to standardYD 5098-2001)。The module must pass anti-lighting test in power on condition and power off condition.
