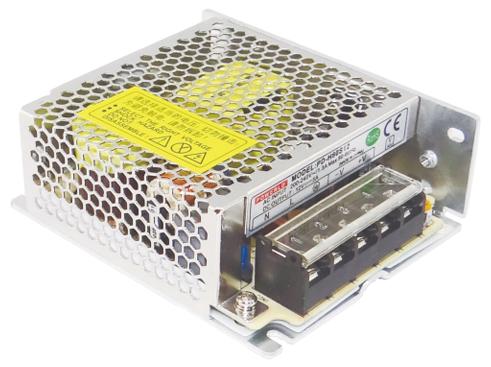

PD-H60SX

  • Brand:

    POWERLD
  • Item NO.:

    PD-H60SX
  • Wattage (W):

    60
  • Input:

    176Vac~264Vac
  • Output:

    12
  • PFC:

    N
  • Conformal Coating:

    Y
  • Approval:

    UL/CB/CE
  • Dimension:

    99×82×35mm
  • Product Detail

Ø  No Load power consumption<0.5W

Ø  High AC input range

Ø  Miniature size,high power density,high efficiency,long life and high reliability

Ø  Withstand 300VA surge input for 5 sec.

Ø  Output protections: OLP/OVP/SCP

Ø  Wide operating ambient temp (-25℃~70℃),100% @50℃、70%@70℃

Ø  Operating altitude up to5000M

Ø  All using105℃long life electrolytic capacitors.

Ø  100% full load burn-in test

Ø  Easy assembling from top side

Ø  PCB soldering side with conformal coating

Ø  Suitable for critical applications

Ø  3 years warranty

SPECIFICATION

MODEL

PD-H60S12

OUTPUT

DC Output

12V

Rated Current

5.0A

CurrentRange

0~5.0A

Ripple and Noise

(-25℃~70℃)Note 2

≤120mVp-p

Voltage ADJ. Range

11.4~13.2V

Voltage Accuracy

±3%

Line Regulation

±0.5%


Load Regulation

±1%


Set-up Time

<1.5S (230Vac input, Full load)

Hold up Time

>50mS(230Vac input, Full load)

Temperature Coefficient

±0.03%/℃

Overshoot and Undershoot

<5.0%

INPUT

VoltageRange

176Vac~264Vac

FrequencyRange

47Hz~63Hz

Efficiency ( Typical)

≥84%

AC Current (max.)

<1.3A

Inrush Current (Typical)

<40A@230Vac     Cold start

Leakage Current

Input—output:<3.5mA    Input—PG:<0.25mA

PROTECTION

Over Load

5.25~7.5A, constant power

Over power

63~90W, constant power

Over Voltage

13.8~18V, Constant Voltage

Short Circuit

Long-term mode, auto recovery

ENVIRONMENT

Operating amb. Temp. & Hum.

-25℃~70℃; 20%~90%RH No condensing (refer to the derating curve)

Storage Temp. & Hum.

-40℃~85℃; 10%~95%RH No condensing

SAFETY &EMC

Note 3

Safety Standards

EN60950-1:2006

Withstand Voltage

Primary-Secondary:3.0KVac;≤10mA .Primary-PG:1.5KVac;≤10mA. Secondary-PG:0.5KVDC;≤10mA.

Isolation Resistance

≥100M ohms

EMI Conduction&Radiation

Compliance to EN55022 / FCC PART15 ClassB

EMSImmunity

Compliance to EN61000-4-2,3,4,5,6,8,11;

OTHERS

MTBF (MIL-HDBK-217F)

More than 200,000Hrs (25℃, Full load)

Dimension (L*W*H)

99×82×35mm

Packing

40PCS/CTN, 12.8KGS, 0.043CBM

Cooling method

Cooling by free air convection


NOTE

1. All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature.

2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor.

3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives.

4. Powerld offer accessories for Din-35 rail bar. Please contact sales staff for details.
