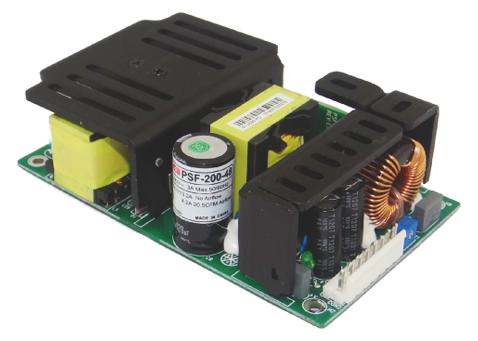

PSF-200-X

  • Brand:

    POWERLD
  • Item NO.:

    PSF-200-X
  • Wattage (W):

    200W
  • Input:

    90Vac~264Vac,127Vdc~370Vdc
  • Output:

    12,24,27,48
  • PFC:

    Y
  • Conformal Coating:

    N
  • Approval:

    UL/CB/CE
  • Dimension:

    128×76.5×34.6mm (5
  • Product Detail

Ø  Universal AC input/ Full range

Ø  Built-in Active PFC function

Ø  Withstand 300Vac surge input for 5 sec.

Ø  High efficiency up to 90%(typ)

Ø  Output protections: OLP/OVP/SCP/OPP

Ø  Wide operating ambient temperature (-20℃~70℃)

Ø  All using105℃long life electrolytic capacitors.

Ø  Free air convection for 150W and 200W with 20.5CFM forced air

Ø  100% full load burn-in test

Ø 5’’*3’’ compact size

Ø  3 years warranty

MODEL

PSF-200-12

GZM-H25S12II

PSF-200-24

PSF-200-27

PSF-200-48

OUTPUT

DC Output

12V

8.5V

12V

12V

24V

27V

48V

Rated Current

16.6A

3A

10.5A

2 A

8.4A

7.4A

4.167A

CurrentRange(convection)

0~12.5A

0~3A

0~10.5A

0~2A

0~6.25A

0~5.5A

0~3.13A

CurrentRange(20.5CFM fan)

0~16.6A

0~8.4A

0~7.4A

0~4.167A

Ripple and Noise Note 20<Ta≤70℃

0<Ta≤70℃

120mVp-p

85mV

100mV

120mV

200 mVp-p

100 mVp-p

120 mVp-p

-20≤Ta≤0℃

200 mVp-p

200 mVp-p

150 mVp-p

240 mVp-p

Voltage ADJ. Range

±10% of rated output voltage

Voltage Accuracy

±1.0%

±3.0%

±5.0%

±2.0%

±2.0%

Line Regulation

±0.5%

±0.5%

±1.0%

±0.5%

±0.5%

Load Regulation

±1.0%

±2.0%

±1.0%

±2.0%

±2.0%

Set-up Time

≤2S (230VAC input, Full load)& ≤4S (115VAC input, Full load)

Hold up Time

≥16mS/150W 10mS/200W(115 / 230VAC IN AT FULL LOAD)

Temperature Coefficient

±0.03%/℃

Overshootand Undershoot

<5.0%

INPUT

VoltageRange

90Vac~264Vac,127Vdc~370Vdc

FrequencyRange

47Hz--63Hz

Power Factor(Typical)

PF>0.98/115VAC   PF>0.95/230VAC

Efficiency ( Typical)

≥89%

≥89%

≥89%

≥90%

AC Current (max.)

<3A

2.5A

1.5A

0.3A

1.5A

1.5A

1.5A

1.5A

Inrush Current (Typical)

<50A@230Vac  <30A@115Vac  Cold start

Leakage Current

≤3.5mA

PROTECTION

Over Current

105%~150% of rated output current, hiccup mode, auto recovery

Over Power

105%~150% of rated output current, hiccup mode, auto recovery

Over Voltage

125%~150% of rated output voltage, hiccup mode, auto recovery

Short Circuit

Long-term, Auto recovery

ENVIRONMENT

OperatingambTemp& Hum

-20℃~70℃; 20%~90%RH No condensing

Storage Temp. & Hum.

-40℃~85℃; 10%~95%RH No condensing

SAFETY &EMC

Note 3

Safety Standards

UL60950-1; EN60950-1:2006

Withstand Voltage

Primary-Secondary:3.0KVac;≤10mA .Primary-PG:1.5KVac;≤10mA .Secondary-PG:0.5KVDC;≤10mA .

Isolation Resistance

100M ohms

EMI Conduction&Radiation

Compliance to EN55022,EN55024 ClassB

Harmonic Current

Compliance to EN61000-3-2,-3

EMSImmunity

Compliance to EN61000-4-2,3,4,5,6,8,11;EN55024,EN61000-6-2heavy industry level

OTHERS

MTBF (MIL-HDBK-217F)

More than 200,000Hrs (25℃, Full load)

Dimension (L*W*H)

128×76.5×34.6mm(5’’*3’’)

Packing

21PCS/CTN, 8.46KGS, 0.015CBM

Cooling method

Cooling by free air convection

NOTE

1. All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature.

2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor.

3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives.
