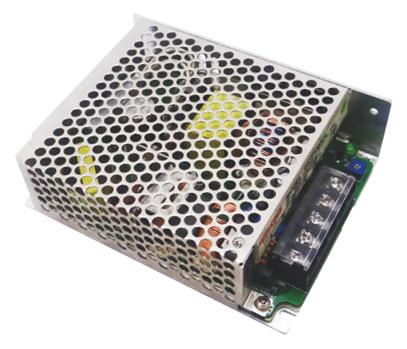

GKF-100-X


  • Brand:

    POWERLD
  • Item NO.:

    GKF-100-X
  • Wattage (W):

    100
  • Input:

    88-264Vac
  • Output:

    12, 15, 24, 48
  • PFC:

    Y
  • Conformal Coating:

    Y
  • Approval:

    UL/CE/CB/EN62368-1/UL62368-1
  • Dimension:

    129x98x38mm
  • Product Detail

Ø  Universal AC input range

Ø  Built-in Active PFC function, PF>0.93

Ø  Miniature size,high power density,high efficiency,long life and high reliability

Ø  Withstand 300VA surge input for 5 secs.

Ø  Output protections: OLP/SCP/OPP

Ø  Wide operating ambient temp (-20℃~60℃)

Ø  All using105℃long life electrolytic capacitors.

Ø  100% full load burn-in test

Ø  Easy assembling from top side

Ø  PCB soldering side with conformal coating

Ø  Suitable for critical applications

Ø  3 years warranty


SPECIFICATION

MODEL

GKF-100-5

GKF-100-12

GKF-100-24

GKF-100-48

OUTPUT

DC Output

5V

12V

24V

48V

Rated Current

20A

8.5A

4.2A

2.2A

CurrentRange    Note 1

0~20A

0~8.5A

0~4.2A

0~2.2A

Ripple and Noise  Note 2

0~70℃

≤150mV

≤150mV

≤150mV

≤150mV

-20~0℃

≤150mV

≤150mV

≤150mV

≤200mV

Voltage ADJ. Range

3.3V—5.5V

10~15V

21~27V

43.2~52.8V

Voltage Accuracy

±2.0%

±2.0%

±1.0%

±1.0%

Line Regulation

±0.5%

±0.5%

±0.5%

±0.5%

Load Regulation

±2.0%

±2.0%

±1.0%

±1.0%

Set-up Time

≤4S @115Vac,≤2S @230Vac

Hold up Time

≥12mS (230Vac input, Full load)

Temperature Coefficient

±0.03%/℃

Overshoot and Undershoot

<5.0%

INPUT

VoltageRange

90Vac~264Vac

FrequencyRange

47Hz~63Hz

Power factor (typical)

PF>0.98@115Vac, PF>0.93@230Vac

Efficiency (Typical)230Vac input

≥84%

≥87%

≥88%

≥88%

AC Current (max.)

<1.5 A

Inrush Current (Typical)

<30@115Vac,<50A@230Vac     Cold start

Leakage Current

Input—output: ≤0.25mA   Input—PG: ≤3.5mA

PROTECTION

Over Load

110%~150% of rated output current, hiccup mode, auto recovery

Over power

110%~150% of rated output current, hiccup mode, auto recovery

Short Circuit

Long-term mode, auto recovery

ENVIRONMENT

Operating amb. Temp. & Hum.

-20℃~60℃; 20%~90%RH No condensing (refer to the derating curve)

Storage Temp. & Hum.

-30℃~85℃; 10%~95%RH No condensing

SAFETY &EMC

Note 3

Safety Standards

UL60950-1 2ndEd; IEC 60950-1:2005(2ndEd) ;EN60950-1:2006

Withstand Voltage

Primary-Secondary:3.0KVac;≤10mA .Primary-PG:1.5KVac;≤10mA. Secondary-PG:0.5KVDC;≤10mA.

Isolation Resistance

100Mohms

EMSEmission

Compliance to EN55022 Class B

Harmonic Current

Compliance to EN61000-3-2, Class A

EMC Immunity

Compliance to EN61000-4-2,3,4,5,6,8,11; heavy industry level

OTHERS

MTBF (MIL-HDBK-217F)

More than 200,000Hrs (25℃, Full load)

Dimension (L*W*H)

129×98.3×37.6mm

Packing

30PCS/CTN, 14.6KGS, 0.04CBM

Cooling method

Cooling by free air convection

NOTE

1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and25℃of ambient temperature.

2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor.

3. The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on https://www.powerld.com
