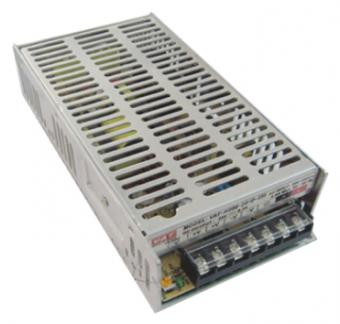

  • switching power supply
    PD-25-SX
    Ø  No Load power consumption<0.5W Ø  Universal AC input range Ø  High efficiency, long life and high reliability Ø  Output protections: OLP/OVP/SCP Ø  Wide operating ambient temp (-20℃~70℃) Ø  All using105℃long life electrolytic capacitors. Ø  100% full load burn-in test Ø  3 years warranty MODEL PD-15-S3.3 PD-15-S5 PD-15-S12 PD-15-S15 PD-15-S24 OUTPUT DC Output 3.3V 5V 12V 15V 24V Rated Current 4A 3A 1.3A 1A 0.7A Current Range     Note 1 0~4A 0~3A 0~1.3A 0~1.0A 0~0.7A Ripple and Noise  Note 2 -20~70℃ <50mV <50mV <120mV <120mV <120mV Voltage ADJ.  Range -5%~+10% of rated output voltage 4.4~5.5V 10.0~13.0V 13.8~16.1V 20.7~26.7V Voltage Accuracy ±2.0% ±2.0% ±1.0% ±1.0% ±1.0% Line Regulation ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% Load Regulation ±2.0% ±2.0% ±1.0% ±1.0% ±1.0% Set-up Time <2.0S (115Vac input, Full load); <1.0S (230Vac input, Full load) Hold up Time >10mS(115Vac input, Full load); >20mS(230Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT Voltage Range   90Vac~264Vac,124~370Vdc Frequency Range 47Hz~63Hz Efficiency ( Typical) 115Vac input 70% 76% 80% 82% 84% 230Vac input 71% 78% 82% 83% 85% AC Current (max.) 0.7A 0.7A 2.5A 0.7A 0.7A 0.7A Inrush Current (Typical) 20A@115Vac    40A@230Vac      Cold start Leakage Current Input—output:<0.25mA     Input—PG:<3.5mA PROTECTION Over Load 105%~150% of rated output current, Hiccup mode,auto recovery Over Voltage 105%~150% of rated output voltage, Constant Voltage  Shorted Circuit Long-term mode, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -20℃~70℃;  20%~90%RH  No condensing Storage Temp. & Hum. -40℃~85℃;  10%~95%RH  No condensing SAFETY &EMC Note 3 Safety Standards UL60950-1 ;EN60950-1:2006 Withstand Voltage Primary-Secondary:3.0KVac; ≤10mA .Primary-PG:1.5KVac; ≤10mA. Secondary-PG:0.5KVDC;≤10mA. Isolation Resistance ≥100M ohms EMC Emission Compliance to EN55022 (CISPR22) Class B Harmonic Current Compliance to EN61000-3-2,-3 EMC Immunity Compliance to EN61000-4-2,3,4,5,6,8,11;EN55024,EN61000-6-2heavy industry level OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension  (L*W*H) 79×51×28.8mm Packing 48PCS/CTN, 10.4KGS, 0.03CBM Cooling method Cooling by free air convection NOTE 1. All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature. 2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. 4.  Powerld offer accessories for Din-35 rail bar. Please contact sales staff for details. Our industrial power supply products enjoy great popularity among customers for our good quality and competitive price.We also welcome OEM and ODM orders.
  • PD-35-X Power Supply
    PD-35-X
    Ø  No Load power consumption<0.5W Ø  Universal AC input range Ø  Miniature size, high power density, high efficiency, long life and high reliability Ø  Withstand 300VA surge input for 5 sec. Ø  Output protections: OLP/OVP/SCP Ø  Wide operating ambient temp (-25℃~70℃),100% @50℃& 60%@70℃ Ø  Operating altitude up to 5000M Ø  All using 105℃ long life electrolytic capacitors. Ø  100% full load burn-in test Ø  Easy assembling from top side Ø  PCB soldering side with conformal coating Ø  Suitable for critical applications Ø  3 years warranty    SPECIFICATION                                              MODEL PD-35-5 PD-35-12 PD-35-15 PD-35-24 PD-35-48 OUTPUT DC Output 5V 12V 15V 24V 48V Rated Current 6A 3A 2.4A 1.5A 0.76A Current Range      0~6A 0~3A 0~2.4A 0~1.5A 0~0.76A Ripple and Noise   Note 2 0~70℃ <50mV <80mV <120mV <120mV <180 mV -25~0℃ <80mV <180mV <200mV <200mV <240mV Voltage ADJ.  Range 4.75V-5.5V 11.4V-13.2V 14.25V-16.5V 22.8V-26.4V 45.6V-52.8V Voltage Accuracy ±3.0% ±3.0% ±3.0% ±3.0% ±3.0% Line Regulation ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% Load Regulation ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% Set-up Time <1S (230Vac input, Full load); Hold up Time >20mS(230Vac input, Full load); >10mS(120Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT Voltage Range   90Vac~264Vac,127~370Vdc Frequency Range 47Hz~63Hz Efficiency ( Typical) 115Vac input 79% 83% 85% 86% 87% 230Vac input 80% 84% 86% 87% 88% AC Current (max.) <1A(max) Inrush Current (Typical) <50A@230Vac     Cold start Leakage Current Input—output:<3.5mA     Input—PG:<0.25mA PROTECTION Over Load 105%~150% of rated output current, constant power,auto recovery Over Voltage 105%~150% of rated output voltage, Constant Voltage Short Circuit Long-term mode, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -25℃~70℃;  20%~90%RH  No condensing (refer to the derating curve) Storage Temp. & Hum. -40℃~85℃;  10%~95%RH  No condensing SAFETY &EMC Note 3 Safety Standards UL60950-1 2nd Ed; IEC 60950-1:2005(2nd Ed) ;EN60950-1:2006 Withstand Voltage Primary-Secondary:3.0KVac; ≤10mA .Primary-PG:1.5KVac; ≤10mA. Secondary-PG:0.5KVDC;≤10mA. Isolation Resistance ≥100M ohms EMC Emission Compliance to EN55022,EN55024 ClassB Harmonic Current Compliance to EN61000-3-2,-3 EMC Immunity Compliance to EN61000-4-2,3,4,5,6,8,11;EN55024,EN61000-6-2 heavy industry level OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension  (L*W*H) 101.6×63.5×33mm Packing 60PCS/CTN, 15.18KGS, 0.06CBM Cooling method Cooling by free air convection NOTE 1.     All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature. 2.     Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3.        The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. 4.        Powerld offer accessories for Din-35 rail bar. Please contact sales staff for details. Quality industrial power supply products, excellent service, hope to establish the long-term business relationship with you.
    A total of

    11

    pages
#
