  • ABS-50-X
    ABS-50-X power supply
    Ø  No Load power consumption<0.5W Ø  Universal AC input range(88~264Vac) Ø  High efficiency, long life and high reliability Ø  Withstand 300Vac surge input for 5 sec. Ø  Output protections: OVP/OLP/SCP Ø  Wide operating ambient temp (-25℃~70℃) Ø  Altitude up to5000m Ø  All using105℃long life electrolytic capacitors. Ø  100% full load burn-in test Ø  Suitable for critical applications Ø  2 years warranty MODEL ABS-50-5 ABS-50-12 ABS-50-24 ABS-50-48 OUTPUT DC Output 5V 12V 24V 48 Rated Current 8A 4.2A 2.2A 1.12A CurrentRange    Note 1 0~8A 0~4.2A 0~2.2A 0~1.12A Ripple and Noise  Note 2 0~70℃ <80mV <120mV <200mV <200mV -20℃ <160mV <300mV <300mV <500mV Voltage ADJ. Range 4.75V-5.5V 10.8V-13.2V 21.6V-26.4V 43.2~52.8V Voltage Accuracy ±3.0% ±1.0% ±1.0% ±1.0% Line Regulation ±0.5% Load Regulation ±1.0% Set-up Time ≤1S /230Vac input, Full load) ; ≤2S /120Vac input, Full load) Hold up Time ≥10mS(120Vac input, Full load) ; ≥20mS(230Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT VoltageRange   88Vac~264Vac FrequencyRange 47Hz~63Hz Efficiency ( Typical) 230Vac ≥80% ≥84.5% ≥87% ≥88.5% 115Vac ≥78% ≥82.5% ≥85% ≥86.5% AC Current (max.) <1.3 A 2.5A Inrush Current (Typical) ﹤45A@230Vac  Cold start Leakage Current Input—output:<0.25mA    Input—PG:<3.5mA PROTECTION Over Load 8.4~12A 4.41~6.3A 2.31~3.3A 1.155~1.65A Protection type: Constant power, Auto recovery(ABS-50-5,hiccup mode) Over voltage 5.5~7.5V 13.8~18V 27.6~36V 55.2~72V Protection type: Constant voltage, Auto recovery Shorted Circuit Long-term mode, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -25℃~70℃; 20%~90%RH No condensing Storage Temp. & Hum. -40℃~85℃; 10%~95%RH No condensing SAFETY &EMC Note 3 Safety Standards UL60950-1 2ndEd; IEC 60950-1:2005(2ndEd) ;EN60950-1:2006 Withstand Voltage Primary-Secondary:3.0KVac;≤10mA .Primary-PG:1.5KVac;≤10mA. Secondary-PG:0.5KVDC;≤10mA. Isolation Resistance ≥100M ohms EMC Emission Compliance to EN55022 Class B EMC Immunity Compliance to EN61000-4-2,3,4,5,6,8,11; heavy industry level OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension (L*W*H) 129×98×38mm Packing 30pcs/CTN, 14.2Kgs/CTN, 0.04cbm Cooling method Cooling by free air convection NOTE 1. All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature. 2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3.The power supply is considered as a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies” on https://www.powerld.com We are professional manufacturer engaged in the research, development, production, sale and service of Industrial power supply,We sincerely look forward to cooperating with you and creating the future together!
  • PS-45-SX power supply

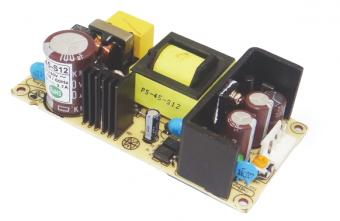

    PS-45-SX
    Ø  Universal AC input/ Full range (90~264Vac) Ø  High Efficiency, long life and high reliability Ø  Output protections: SCP/OVP/ OLP/OPP Ø  Wide operating ambient temperature (-10℃~60℃) Ø  All using 105℃ long life electrolytic capacitors. Ø  100% full load burn-in test Ø  3 years warranty  MODEL PS-45-S12 PS-45-S24 PS-45-S48 OUTPUT DC Output 12V 24V 48V Rated Current 3.7A 1.9A 1A Ripple and Noise  Note 2 0~60℃ ≤120mV ≤120mV ≤120mV -10℃~0℃ ≤200mV ≤200mV ≤200mV Voltage ADJ. Range 11.4~13.2V 22.8~26.4V 45.6~52.8V Voltage Accuracy ±3.0% Line Regulation ±1.0% Load Regulation ±3.0% Set-up Time ≤0.8S @ 230Vac   full load Hold up Time ≥60mS @ 230Vac  full load Temperature Coefficient ±0.05%/℃ Overshoot and Undershoot <5.0% INPUT VoltageRange  Note 3 90Vac~264Vac FrequencyRange 47Hz-63Hz Efficiency ( Typical) 220Vac input ≥82% ≥85% ≥86% AC Current (max.) <1A(115VAC)  <0.6A(230VAC) Inrush Current (Typical) <20A@115Vac   <45A@230Vac     Cold start Leakage Current Input to Output:≤0.25mA ; Input to PG:≤3.5mA PROTECTION Over Load 3.9~6.2A 2.0~3.2A 1.1~1.56A Protection type: Hiccup mode, auto recovery Over Voltage 13.8~16.2V 27.6~32.4V 55.2~64.8V Protection type: Constant voltage, Auto recovery Over Power 46.8~75W 48~75W 53~75W Protection type: Hiccup mode, auto recovery Shorted Circuit Long-term mode, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -10℃~60℃; 20%~90%RH No condensing (refer to the derating curve) Storage Temp. & Hum. -25℃~85℃; 10%~95%RH No condensing SAFETY &EMC   (Note 4) Safety Standards UL60950-1; EN60950-1:2006 Withstand Voltage Input-Output:3.0KVac/10mA ; Output-PG: 1.5KVac/10mA;Output-PG: 0.5KVdc/10mA Isolation Resistance ≥100M ohms EMI Conduction&Radiation Compliance to EN55022 Class B EMSImmunity Compliance to EN61000-4-2,3,4,5,6,8,11; heavy industry level OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension (L*W*H) 101.6×51×28mm Packing 60PCS/CTN, 11KGS, 0.024CBM Cooling method Cooling by free air convection NOTE 1.All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2.Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives.   We are Industrial power supply manufacturer with competitive price and good quality,which are widely recognized and trusted by users and can meet social needs.
  • PD-100-X power supply
    PD-100-X
    Ø  Universal AC input/ Full range Ø  High Efficiency, and High reliability Ø  Output protections: OLP/OVP/SCP Ø  Wide operating ambient temperature (-25℃~70℃) Ø  All using105℃long life electrolytic capacitors. Ø  PCB soldering side with conformal coating Ø  100% full load burn-in test Ø  2 years warranty      SPECIFICATION                                                       MODEL PD-100-5 PD-100-12 PD-100-15 PD-100-24 PD-100-48 OUTPUT DC Output 5.0V 12.0V 15.0V 24.0V 48.V Rated Current 16A 8.5A 7A 4.5 A 2.3A Current Range     Note 1 0~16A 0~8.5A 0~7.0A 0~4.5A 0~2.3A Ripple and Noise  Note 2 0~70℃ 80mV 100mV 100mV 120mV 200mV -25~0℃ 120mV 120mV 120mV 120mV 200 mV Voltage ADJ.  Range ±10.0% Voltage Accuracy ±2.0% ±1.0% ±1.0% ±1.0% ±1.0% Line Regulation ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% Load Regulation ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% Set-up Time <2.0S (115Vac input, Full load); <1.0S (230Vac input, Full load) Hold up Time >10mS(115Vac input, Full load); >20mS(230Vac input, Full load) Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT Voltage Range   88Vac~264Vac,124~370Vdc Frequency Range 47Hz-63Hz Efficiency ( Typical) 78%(115Vacinput) 79%(115Vacinput) 81%(115Vacinput) 84%(115Vacinput) 83%(115Vacinput) 79%(230Vacinput) 81%(230Vacinput) 83%(230Vacinput) 85%(230Vacinput) 84%(230Vacinput) AC Current (max.) 2.0A 2.5A 2.5A 2.5A 2.4A 2.5A Inrush Current (Typical) 20A@115Vac    40A@230Vac      Cold start Leakage Current Input—output:<0.25mA     Input—PG:<3.5mA PROTECTION Over Load 105%~150% of rated output current, hiccup mode, auto recovery Over Voltage 110%~140% of rated output voltage, shut down Short Circuit Long-term mode, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -25℃~70℃;  20%~90%RH  No condensing ((refer to the derating curve) Storage Temp. & Hum. -40℃~85℃;  10%~95%RH  No condensing SAFETY &EMC   (Note 3) Safety Standards UL60950-1; EN60950-1:2006 Withstand Voltage Primary-Secondary:3.0KVac; ≤10mA .Primary-PG:1.5KVac; ≤10mA. Secondary-PG:0.5KVDC;≤10mA. Isolation Resistance ≥100M ohms EMI Conduction&Radiation Compliance to EN55022(CISPR22)ClassB Harmonic Current Compliance to EN61000-3-2,-3 EMS Immunity Compliance to EN61000-4-2,3,4,5,6,8,11;ENV50204,light industry level,criteriaA OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension  (L*W*H) 160×98×38mm Packing 20PCS/CTN, 13.6KGS, 0.04CBM Cooling method Cooling by free air convection NOTE 1. All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2. Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor 3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. 4. Powerld can offer accessories for Din-35 rail bar. Please contact sales staff for details. We always can deliver high-end quality industrial power supply products to our customers on time.Quality products,excellent service,Welcome to visit our factory!
