  • ABS-350-X power supply

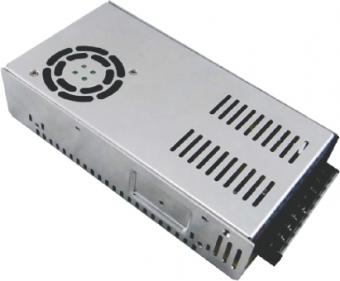

    ABS-350-X
    Ø  AC input selectable by switch (115Vac/230Vac) Ø  High efficiency, long life and high reliability Ø  Output protections: OLP/SCP/OPP Ø  Wide operating ambient temp (-20℃~70℃) Ø  All using105℃long life electrolytic capacitors. Ø  100% full load burn-in test Ø  Built-in cooling fan speed control Ø  Suitable for critical applications Ø  2 years warranty SPECIFICATION                                                MODEL ABS-350-12 ABS-350-24 ABS-350-36 ABS-350-48 OUTPUT DC Output 12V 24V 36V 48V Rated Current 29A 14.6A 9.7A 7.3A Current Range     Note 1 0~29A 0~14.6A 0~4.5A 0~7.3A Ripple and Noise  Note 2 0~70℃ <150mV <240mV <200mV <200mV -20℃ <300mV <300mV <300mV <300mV Voltage ADJ.  Range 10V-13.5V 21.6V-26.4V 32V-40V 41V~56V Voltage Accuracy ±1.0% Line Regulation ±0.5% Load Regulation ±1.0% Set-up Time ≤2.0S /115Vac input, Full load; ≤1.0S /230Vac input, Full load Hold up Time ≥10mS/115Vac input, Full load; ≥20mS/230Vac input, Full load Temperature Coefficient ±0.03%/℃ Overshoot and Undershoot <5.0% INPUT Voltage Range   90Vac~132Vac/180Vac~264Vac Frequency Range 47Hz~63Hz Efficiency ( Typical) ≥82.5% ≥84% ≥86% ≥87% AC Current (max.) <7.0A 2.5A Inrush Current (Typical) ﹤40A@115Vac; ﹤60A@230Vac   Cold start Leakage Current Input—output:<0.25mA     Input—PG:<3.5mA PROTECTION Over Load 105%~150% of rated current, constant current, auto recovery Over Power 105%~150% of rated output power, current limiting, auto recovery Shorted Circuit Long-term mode, auto recovery ENVIRONMENT Operating amb. Temp. & Hum. -20℃~70℃;  20%~90%RH  No condensing Storage Temp. & Hum. -20℃~85℃;  10%~95%RH  No condensing SAFETY &EMC Note 3 Safety Standards IEC 60950-1:2005;EN60950-1:2006 Withstand Voltage Primary-Secondary:3.0KVac; ≤10mA .Primary-PG:1.5KVac; ≤10mA. Secondary-PG:0.5KVDC;≤10mA. Isolation Resistance ≥100M ohms EMC Emission Compliance to EN55022  Class A Harmonic Current Compliance to EN61000-3-2, Class D EMC Immunity Compliance to EN61000-4-2,4,5,8,11; heavy industry level OTHERS MTBF (MIL-HDBK-217F) More than 200,000Hrs (25℃, Full load) Dimension  (L*W*H) 215×115×50mm Packing 10pcs/CNT, 11.6Kgs/CTN, 0.04cbm Cooling method Cooling by forced air (Built-in DC fan) NOTE 1. All parameters NOT specially mentioned are measured at rated input, rated load and25℃of ambient temperature. 2. Measured at 20MHz of bandwidth by using a12”twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. We are professional manufacturer engaged in the research, development, production, sale and service of Industrial power supply,We sincerely look forward to cooperating with you and creating the future together!
