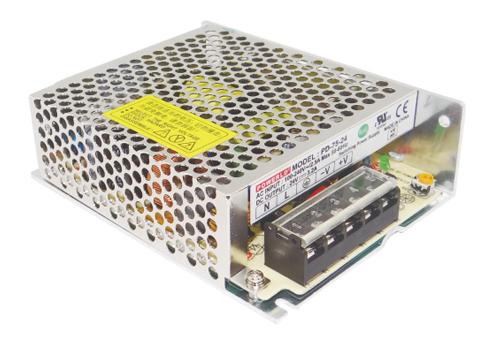

PD-75-X

  • Brand:

    POWERLD
  • Item NO.:

    PD-75-X
  • Wattage (W):

    75
  • Input:

    90~264Vac
  • Output:

    5, 12, 15, 24, 48
  • PFC:

    N
  • Conformal Coating:

    Y
  • Approval:

    UL, CE, CB, CCC,EN62368-1,UL62368-1
  • Dimension:

    129x98x38mm
  • Product Detail

Ø  No Load power consumption<0.5W

Ø  Withstand 300VA surge input for 5 sec.

Ø  High Efficiency, High reliability and long life

Ø  Output protections: OLP/OVP/SCP

Ø  Wide operating ambient temperature (-25~70)

Ø  Operating altitude up to5000m

Ø  All using105long life electrolytic capacitors.

Ø  PCB soldering side with conformal coating

Ø  100% full load burn-in test

Ø  3 years warranty

SPECIFICATION

MODEL

PD-75-5

PD-75-12

PD-75-15

PD-75-24

PD-75-48

OUTPUT

DC Output

5V

12V

15V

24V

48V

Rated Current

12A

6A

5A

3.2.A

1.6A

Current Range     Note 1

0~12A

0~6A

0~5A

0~3.2A

0~1.6A

Ripple and Noise Note 2

0~70

<50mV

<80mV

<80mV

<80mV

<120mV

-25~0

<80mV

<200mV

<200mV

<200mV

<240mV

Voltage ADJ.  Range

4.75~5.5V

11.4~13.2V

14.25~16.5V

22.8~26.4V

45.6~52.8V

Voltage Accuracy

±1.0%

Line Regulation

±0.5%

Load Regulation

±1.0%

Set-up Time

1S(230Vac input, Full load)

Hold up Time

≥20mS(230Vac input, Full load)

Temperature Coefficient

±0.03%/℃

Overshoot and Undershoot

<5.0%

INPUT

Voltage Range

90Vac~264Vac

Frequency Range

47Hz~63Hz

Efficiency ( Typical)

79%

84%

86%

86.5%

88%

AC Current (max.)

<2.5A

Inrush Current (Typical)

<60A@230Vac      Cold start

Leakage Current

Input—output:<0.25mA     Input—PG:<3.5mA         (264Vac input, 63Hz)

PROTECTION

Over Load

12.6~18A

6.3~9A

5.25~7.5A

3.36~4.8A

1.7~2.43A

Protection type: 5V, hiccup mode; others, constant power, Auto recovery

Over Voltage

5.5~7.5V

13.2~18V

16.5~22.5V

26.4~36V

52.8~72V

Protection type: constant voltage, auto recovery

Short Circuit

Long-term mode, auto recovery

ENVIRONMENT

Operating amb. Temp. & Hum.

-25℃~70℃;  20%~90%RH  No condensing((refer to the derating curve)

Storage Temp. & Hum.

-40℃~85℃;  10%~95%RH  No condensing

SAFETY &EMC

Note 3

Safety Standards

UL60950-1; EN60950-12006

Withstand Voltage

Primary-Secondary:3.0KVac/ 10mA .Primary-PG:1.5KVac/ 10mA. Secondary-PG:0.5KVDC/ 10mA.

Isolation Resistance

100M ohms

EMI Conduction& Radiation

Compliance to EN55022 Class B / FCC Part15 B

Harmonic Current

Compliance to EN61000-3-2, Class A

EMS Immunity

Compliance to EN61000-4-2,3,4,5,6,8,11;

OTHERS

MTBF (MIL-HDBK-217F)

More than 200,000Hrs (25℃, Full load)

Dimension  (L*W*H)

129×98×38mm

Packing

30PCS/CTN, 14.2KGS, 0.044CBM

Cooling method

Cooling by free air convection

NOTE

1.     All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature.

2.     Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor.

3.        The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives.

4.  Powerld offer accessories for Din-35 rail bar. Please contact sales staff for details.
