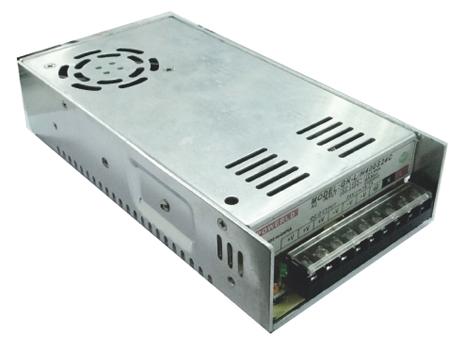

GK-L/H400SXC


  • Brand:

    POWERLD
  • Item NO.:

    GK-L/H400SXC
  • Wattage (W):

    400
  • Input:

    176-264Vac
  • Output:

    24, 36, 48
  • PFC:

    N
  • Conformal Coating:

    Y
  • Approval:

    N
  • Dimension:

    226x115x50mm
  • Product Detail

Ø  AC input selectable by switch (115Vac/230Vac)

Ø  Withstand 300Vac surge input (5S)

Ø  High Efficiency, and High reliability

Ø  Terminal block with plastic cover protection

Ø  Output protections: OPP/OLP/SCP/OVP/OTP

Ø  Wide operating ambient temperature (-20℃~70℃)

Ø  All using105℃long life electrolytic capacitors.

Ø  100% full load burn-in test

Ø  Suitable for peak load application

Ø  2 years warranty


SPECIFICATION

MODEL

GK-L/H400S24C

GK-L/H400S36C

GK-L/H400S48C

OUTPUT

DC Output

24V

36V

48V

Rated Current

16.7A

11.1A

8.3A

Current Range

0~16.7A

0~11.1A

0~8.3A

Ripple and Noise

Note 2

0~70℃

240mV

240mV

240mV

-20~0℃

480mV

480mV

480mV

Voltage ADJ.  Range

±10%

Voltage Accuracy

±1%

Line Regulation

±0.5%

Load Regulation

±1%

Set-up Time

4.0S (220Vac input, Full load)

Hold up Time

20mS (220Vac input, Full load)

Temperature Coefficient

±0.03%/℃

Overshoot and Undershoot

<5.0%

INPUT

Voltage Range

90~132Vac/176~264Vac

Frequency Range

47Hz-63Hz

Efficiency ( Typical)

86%

86%

87%

AC Current (max.)

<6.0A

2.5A

2.5A

2.5A

2.4A

2.5A

Inrush Current (Typical)

<50A@220Vac      Cold start

Leakage Current

Input to PG<3.5mA    Input to output<0.25m

PROTECTION

Over Load

105%~150% of rated output current, constant current, auto recovery

Over power

105%~150% of rated output current, constant current, auto recovery

Over temperature

85+5(detect on heatsink of power transistor);shut down,auto recovery after the temperature goes down

Short Circuit

Long-term mode, auto recovery

ENVIRONMENT

Operating amb. Temp. & Hum.

-20℃~70℃;  20%~90%RH  No condensing (refer to the derating curve)

Vibration

10 ~ 150Hz,2G10min./1cycle, period for60min. each along X,Y, Z axes

Storage Temp. & Hum.

-40℃~85℃;  10%~95%RH  No condensing

SAFETY &EMC

(Note 3)

Safety Standards

IEC/EN/UL/CSA 60950   GB4943

Withstand Voltage

Primary-Secondary:3.0KVac; 10mA .Primary-PG:1.5KVac; 10mA. Secondary-PG:0.5KVDC;10mA.

Isolation Resistance

100M ohms

EMI Conduction&Radiation

Compliance to EN55022  Class A

EMS Immunity

Compliance to EN61000-4-2,3,4,5,6,8,11

OTHERS

MTBF (MIL-HDBK-217F)

More than 200,000Hrs (25℃, Full load)

Dimension  (L*W*H)

226×115×50mm

Cooling method

Forced air cooling (built-in Fan)

NOTE

1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and25℃of ambient temperature.

2. Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 47uF parallel capacitor

3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives.
